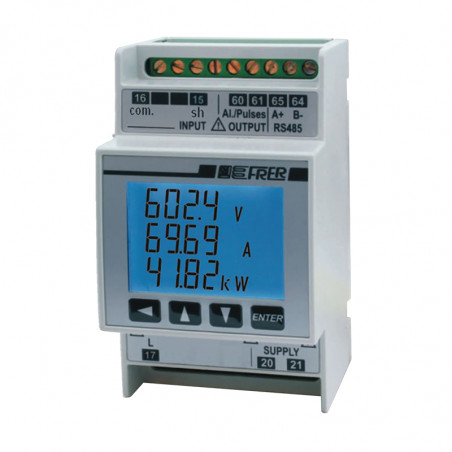

Compact network analysera NANO DC
  • Compact network analysera NANO DC

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: FRER

DC network analyzers NANO DC

Display LCD retroilluminato / backlit LCD
Max. indication 4 cifre / digits (9999)
Decimal point position automatica/automatic
Adjustable backlight 5 livelli / 5 levels
Readings update < 0,5 sec.
Basic accuracy ±0,2%
Nominal input voltage Un max.600V da specif. / to be specif.
Nominal input current In shunt / 60mV
Input range(1) 10-120% Un, 5-120% In
Shunt ratio (max. prim.) 15000A
Continuous overload 2 x In; 1.2 x Un
Short-term overload 20 x In; 2 x Un (300 msec.)
Current circuits consumption < 0.5VA
Voltage circuits consumption < 0.5VA
Power supply 80 - 260V ac/dc
Power consumption 6VA
Operating temperature 0...+23...+50°C
Storage temperature -30...+70°C
Self estinguishing
Thermoplastic material UL 94-V0
Protection for housing IP50
Protection for terminals IP20
Galvanic insulation alim./ing./usc. aux.supply/inputs/out
Test voltage 2kV, 50Hz, 60sec.

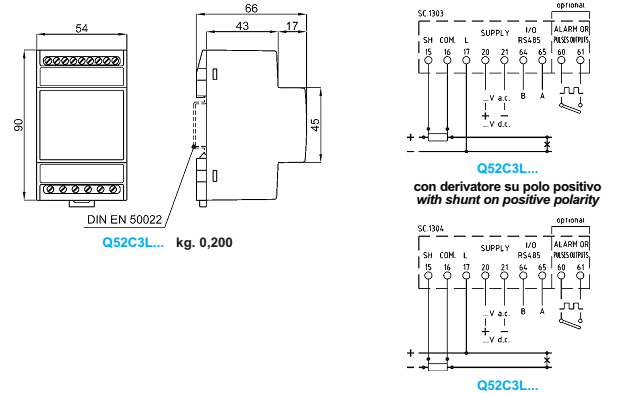

Type Description Code

NANO DC

For direct current systems

Q52C3LX60M…


COMUNICATION PROTOCOLS Standard Optional
ModBus RTU +
Ethernet-ModBus TCP/Webserver   +
Johnson Controls N2 OPEN   +
Profibus DP v0   +

DESCRIPTION

Compact multifunction analyzer for use in DC systems (measures and functions as per the table on page 3) The voltage input is directly wired to the line, while the input proportional to the current, is derived from shunt. Through a simple programming menu is possible to set the value of the primary current, and its insertion on the positive or negative polarity.
