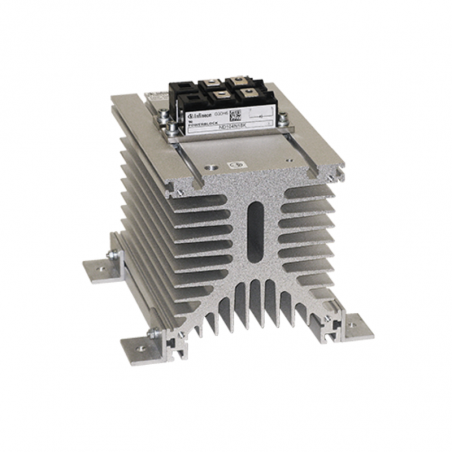

Modular two thyristor block for welding machines type A2Q Doppel Thyristor-Leistungsblöcke für Schweißgeräte, Typ A2Q

There is no technical problem with ignitron fuses exchange in welding machines. If we consider electrical connections, the thyristor connector needs only a system for thyristor triggering impulse conditioning. Conditioning systems is shown on diagram 1.

Module block type Range VDRM
[V]		 ITSM
[A]		 I2t
[A2s]		 IGT
[mA]
A2Q6W - 125 - ... 1200-2200 3000 45000 150
A2Q6W - 200 - ... 1200-2200 3600 65000
A2Q6W - 300 - ... 1200-1600 5000 125000
A2Q7W - 350 - ... 1200-2200 6300 200000 300
A2Q7W - 450 - ... 1200-2200 7600 290000
A2Q7W - 550 - ... 1200-1800 9100 290000


Connection table

Block type Connection scheme
A2Q.W


Two thyristor block
„6" - thyristor thickness. 15 mm
„7" - thyristor thickness. 26 mm


Drawing. 1

Application of two thyristor block as an exchange for ignitrone connector in welding machines.
a) System with ignitrone,
b) System with thyristor block,
c) Conditioning circuit


Conditioning circuit
