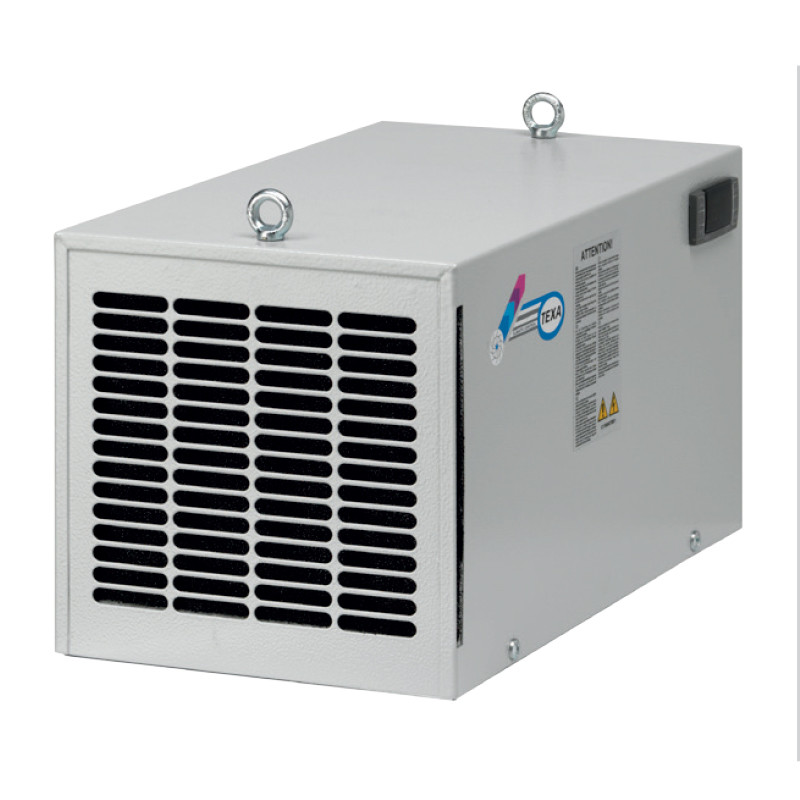

Air conditioners for cabinet roof assembly - DeK series
  • Air conditioners for cabinet roof assembly - DeK series

Photos are for informational purposes only. View product specification

Manufacturer: TEXA PAVARINI

Air conditioners for cabinet roof assembly - DeK series

TypeNominal cooling power l35L35 *
[W]
Dimensions         Hx Wx D
[mm]
Power supply*
[V/Hz/A]
noise level
[db(A)]
Weight
[kg]
DFK04RTOR 410 264x259x486 230/50/60/1,5 60 18
DEK04CTOB 410 264x259x486 115/50/60/2,9 60 18
DEK08BTOB 820 310x305x607 230/50/60/2,5 62 23
DEK08CTOB 820 310x305x607 115/50/60/5,2 62 24
DEK08GTOB 820 310x305x607 400/440 2f/50/60/1,5 62 24
DEK12BT0B 1150 415x401x567 230/50/60/3,2 65 40
DEK12CT0B 1150 415x401x567 115/50/60/6,4 65 42
DEK12GT0B 1150 415x401x567 400/440/50/60/2,2 65 42
DEK15BT0B 1550 415x401x567 230/50/60/4,5 65 44
DEK15CT0B 1550 415x401x567 115/50/60/10,0 65 46
DEK15GT0B 1550 415x401x567 400/440 2f/50/60/2,8 65 46
DEK20BIOB 2050 415x401x567 230/50/60/6,0 65 50
DFIOOCTOB ?050 415x401x567 115/50/60/13,2 65 56
DEK20LTOB 2050 415x401x567 400 3f750/60/1,9 65 52
DEK30BTOB 2900 496x492x797 230/50/60/8,2 75 80
DEK30LTOB 2900 496x492x797 400 3f/50/60/2,5 75 83
DEK40BTOB 3850 496x492x797 230/50/60/9,0 75 83
DEK40LTOB 3850 496x492x797 400 3f/50/60/3,4 75 86

Choosing diagram for type DEK04

P - cooling power [W]
Ta - Ambient temperature [°C]
Ti - Inside cabinet temperature [°C]
Dimensions for type DEK04


Choosing diagram for type DEK08

P - cooling power [W]
Ta - Ambient temperature [°C]
Ti - Inside cabinet temperature [°C]
Dimensions for type DEK08


Choosing diagram for type DEK12

P - cooling power [W]
Ta - Ambient temperature [°C]
Ti - Inside cabinet temperature [°C]
Dimensions for type DEK12


Choosing diagram for type DEK15

P - cooling power [W]
Ta - Ambient temperature [°C]
Ti - Inside cabinet temperature [°C]
Dimensions for type DEK15


Choosing diagram for type DEK20

P - cooling power [W]
Ta - Ambient temperature [°C]
Ti - Inside cabinet temperature [°C]
Dimensions for type DEK20


Choosing diagram for type DEK30

P - cooling power [W]
Ta - Ambient temperature [°C]
Ti - Inside cabinet temperature [°C]
Dimensions for type DEK30



Choosing diagram for type DEK40

P - cooling power [W]
Ta - Ambient temperature [°C]
Ti - Inside cabinet temperature [°C]
Dimensions for type DEK40
