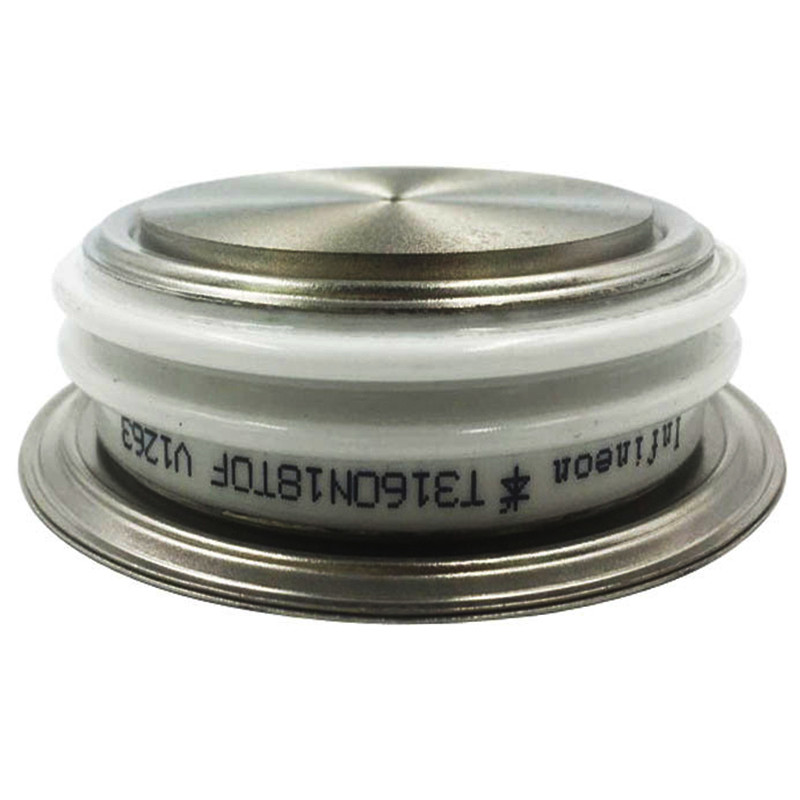

Asymmetric fast thyristors

ASYMMETRIC FAST THYRISTORS - INFINEON (EUPEC)


Table. Electrical Data

VDRM
[V]
VRRM
[V]
ITRMSM
[kA]
ITSM
[kA]
VT/IT
[V/kA]
VTO/rT
[V/mΩ]
(di/dt)cr
[A/µs]
tq
[µs]
(dv/dt)cr
[V/µs]
VGT
[V]
IGT
[mA]
Rthjc
[°C/W]
Tvjmax
[°C]
Casing
A 158 S 1000 … 1300* 15 (50) 400 2,45 2,60/0,6 1,3/2 400 D ≤ 15 C = 500 2,7 300 0,117 125 T41.14
C ≤ 12
B ≤ 10 F = 1000
A≤8
A 198 S 1000 … 1300* 15 (50) 400 2,7 2,0/0,25 1,1/1,3 400 E ≤ 20 C = 500 2,7 300 0,117 125 T41.14
D ≤ 15 F = 1000
A 358 S 1000 … 1300* 15 (50) 800 5 2,75/1,5 1,3/0,9 500 D ≤ 15 C = 500 2,7 300 0,053 125 T50.14
C ≤ 12
B ≤ 10 F = 1000
A≤8
A 438 S 1000 … 1300* 15 (50) 900 5,5 2,1/1,5 1,1/0,6 500 F ≤ 25 C = 500 2,7 300 0,053 125 T50.14
E ≤ 20 F = 1000
D ≤ 15
Caution:
(*) Highest voltage for special order
TSW27TVL36TVL54
TSW41Casing - T41.14Casing - T50.14
Casing - T57.26Casing - T60.14Casing - T75.26
Casing - T100.26Casing - T11.26Casing - T110.35
Casing - T120.35KCasing - T120.35K.1Casing - T120.35K.2
Casing - T150.26KCasing - T150.35
Casing - T172.40KCasing - T76.35L
Casing - T150.40LCasing - T172.40L
