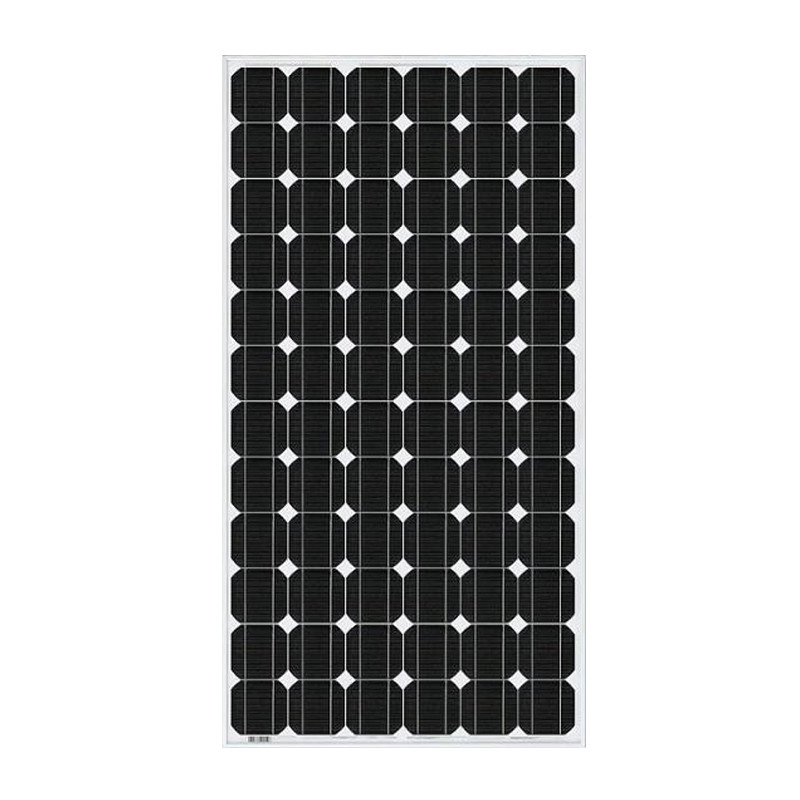

BlueSolar Monocrystalline Panels
  • BlueSolar Monocrystalline Panels

Photos are for informational purposes only. View product specification

Manufacturer: Victron energy

BlueSolar Monocrystalline Panels

  • Low voltage-temperature coefficient enhances high-temperature operation.
  • Exceptional low-light performance and high sensitivityto light across the entire solar spectrum.
  • 25-year limited warranty on power output and performance.
  • 2-year Limited warranty on materials and workmanship.
  • Sealed, waterproof, multi-functional junction box gives high level of safety.
  • High performance bypass diodes minimize the power drop caused by shade.
  • Advanced EVA (Ethylene Vinyl Acetate) encapsulation system with triple-layer back sheet meets the most stringent safety requirements for high-voltageoperation.
  • A sturdy, anodized aluminum frame allows modules tobe easily roof-mounted with a variety of standard mounting systems.
  • Highest quality, high-transmission tempered glass provides enhanced stiffness and impact resistance.
  • Pre wired quick-connect system with MC4 (PV-ST01) connectors. (Except for the 30W panel)


Dane techniczne

TypeModule Size
[mm]
Glass size
[mm]
Weight
[kg]
Nominal Power
PMPP
[W]
Max-Power
Voltage
VMPP
[V]
Max-Power
Current
IMPP
[A]
Open-Circuit
Voltage
VOC
[V]
Short-circuit
Current
ISC
[A]

SPM30-12

450x540x25 445x535 2,50 30 18 1,67 22,5 2

SPM51-12

645x540x35 640x535 5,20 50 18 2,78 22,2 3,16

SPM81-12

1005x540x35 1000x535 7,00 80 18 4,45 22,3 4,96

SPM101-12

1210x540x35 1205x535 8,00 100 18 5,56 22,4 6,53

SPM131-12

1110x808x35 1105x802 11,50 130 18 7,23 22,4 8,49

SPM190-24

1580x808x35 1574x802 14,50 190 36 5,44 43,2 5,98

SPM300-24

1956x992x50 1950x986 23,50 300 36 8,06 45,5 8,56

Module

SPM30-12

SPM51-12

SPM81-12

SPM101-12

SPM131-12

SPM190-24

SPM300-12

Nominal Power 30W 50W 80W 100W 130W 190W 300W
Cell type Monocrystalline
Number of cells in series 36 72
Maximum system voltage (V) 1000V
Temperature coefficient of PMPP (%) -0,48/oC
Temperature coefficient of Voc (%) -0,34/oC
Temperature coefficient of Isc (%) -0,037/oC
Temperature Range -40oC do +85oC
Surface Maximum Load Capacity 200kg/m2
