BlueSolar Polycrystalline Panels
  • BlueSolar Polycrystalline Panels

Photos are for informational purposes only. View product specification

Manufacturer: Victron energy

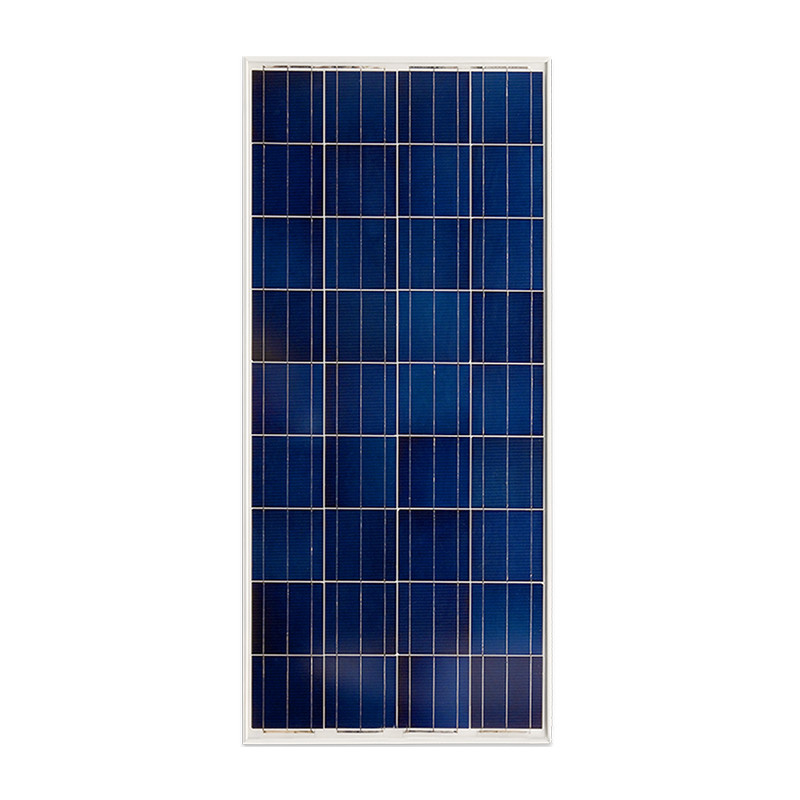

BlueSolar Polycrystalline Panels

  • Low voltage-temperature coefficient enhances high-temperature operation.
  • Exceptional low-light performance and high sensitivityto light across the entire solar spectrum.
  • 25-year limited warranty on power output and performance.
  • 2-year Limited warranty on materials and workmanship.
  • Sealed, waterproof, multi-functional junction box gives high level of safety.
  • High performance bypass diodes minimize the power drop caused by shade.
  • Advanced EVA (Ethylene Vinyl Acetate) encapsulation system with triple-layer back sheet meets the most stringent safety requirements for high-voltageoperation.
  • A sturdy, anodized aluminum frame allows modules tobe easily roof-mounted with a variety of standard mounting systems.
  • Highest quality, high-transmission tempered glass provides enhanced stiffness and impact resistance.
  • Pre wired quick-connect system with MC4 (PV-ST01) connectors.



TypeModule SizeGlass sizeWeight

Nominal
Power
PMPP

Max-Power
Voltage
VMPP
Max-Power
Current
IMPP
Open-Circuit
Voltage
VOC
Short-circuit
Current
ISC
 [mm][mm][kg][W][V][A][V][A]

SPP30-12

735x350x25 730x345 5,20 30 18 1,72 22,50 1,85

SPP51-12

540x670x35 535x665 5,30 50 18 2,85 22,20 3,09

SPP81-12

915x670x35 910x665 8 80 18 4,60 21,60 5,06

SPP101-12

1005x670x35 1000x665 9 100 18 5,75 21,60 6,32

SPP140-12

1480x670x35 1474x664 12,5 140 18 8,05 21,60 8,85

SPP280-24

1956x992x50 1950x986 24 280 36 7,70 44,06 8,26

Module

SPP30-12

SPP51-12

SPP81-12

SPP101-12

SPP140-12

SPP280-24

Nominal Power 30W 50W 80W 100W 140W 280W
Cell type Polycrystalline
Number of cells in series 36 72
Maximum system voltage 1000V
Temperature coefficient of PMPP(%) -0,48/oC
Temperature coefficient of Voc(%) -0,34/oC
Temperature coefficient of Isc -0,037/oC
Temperature Range -40oC do +85oC
Surface Maximum Load Capacity 200kg/m2
