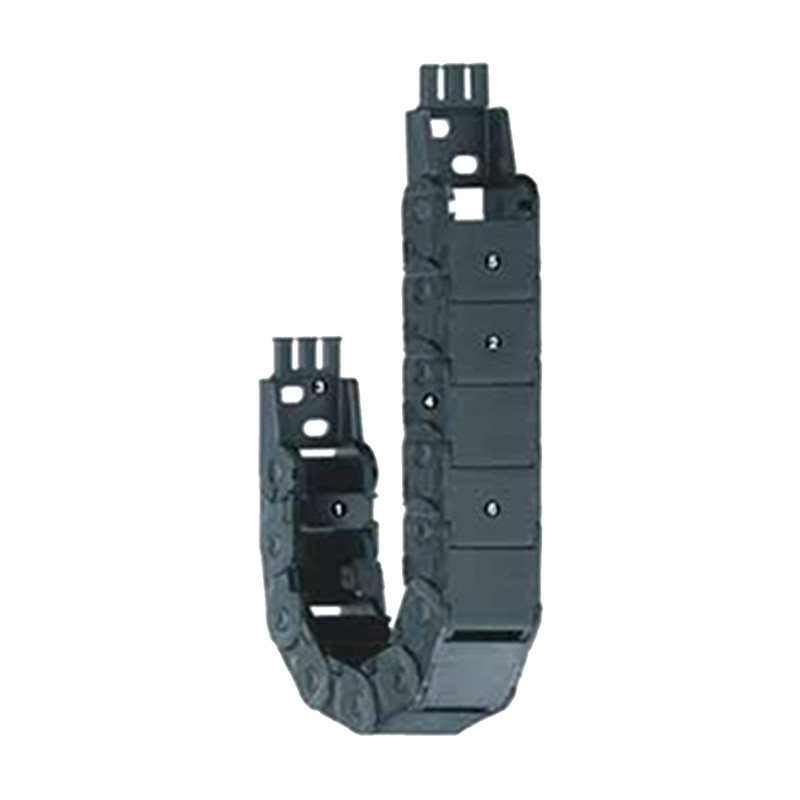

Cable carriers Series 014
  • Cable carriers Series 014

Photos are for informational purposes only. View product specification

Manufacturer: Igus

Cable carriers Series 014

Features:
  • Mounting bracket with strain relief option
  • Light and cost-effective
  • Dirt-repellent exterior
  • Small pitch for smooth running
  • One-piece design, non snap-open
  • High torsional rigidity

E2 mini Series 14


NamesWidth Bi
[mm]
Width Ba
[mm]
Bending radius R
[mm]
14.1.028.0 15 26 28
14.1.038.0 15 26 38
14.1.048.0 15 26 48
14.1.075.0 15 26 75
14.1.100.0 15 26 100
14.1.125.0 15 26 125
14.2.028.0 25 36 28
14.2.038.0 25 36 38
14.2.048.0 25 36 48
14.2.075.0 25 36 75
14.2.100.0 25 36 100
14.2.125.0 25 36 125
14.3.028.0 38 49 28
14.3.038.0 38 49 38
14.3.048.0 38 49 48
14.3.075.0 38 49 75
14.3.100.0 38 49 100
14.3.125.0 38 49 125
14.4.028.0 50 61 28
14.4.038.0 50 61 38
14.4.048.0 50 61 48
14.4.075.0 50 61 75
14.4.100.0 50 61 100
14.4.125.0 50 61 125


Accessories
114...1P(Z) 114...2P(Z)
prowadnik kablowy 114...1p(Z)- 114...2P(Z) Moving end with bore (outer link)
114...1P(Z)
prowadnik kablowy - wymiary 114..1P(Z)
114...2P(Z)
Fixed end with pin (inner link)
114.1.12P(Z) 114.4.12P( Z)


SeriesPart No.
full set with
tiewrap plates
Part No. full
set without
tiewrap plates
Dim. A
[mm]
Dim. B
[mm]
14.1. 114.1.12 PZ 114.1.12 P - 26,3
14.2. 114.2.12 PZ 114.2.12 P 10 36,3
14.3. 114.3.12 PZ 114.3.12 P 23 49,3
14.4. 114.4.12 PZ 114.4.12 P 35 61,3
