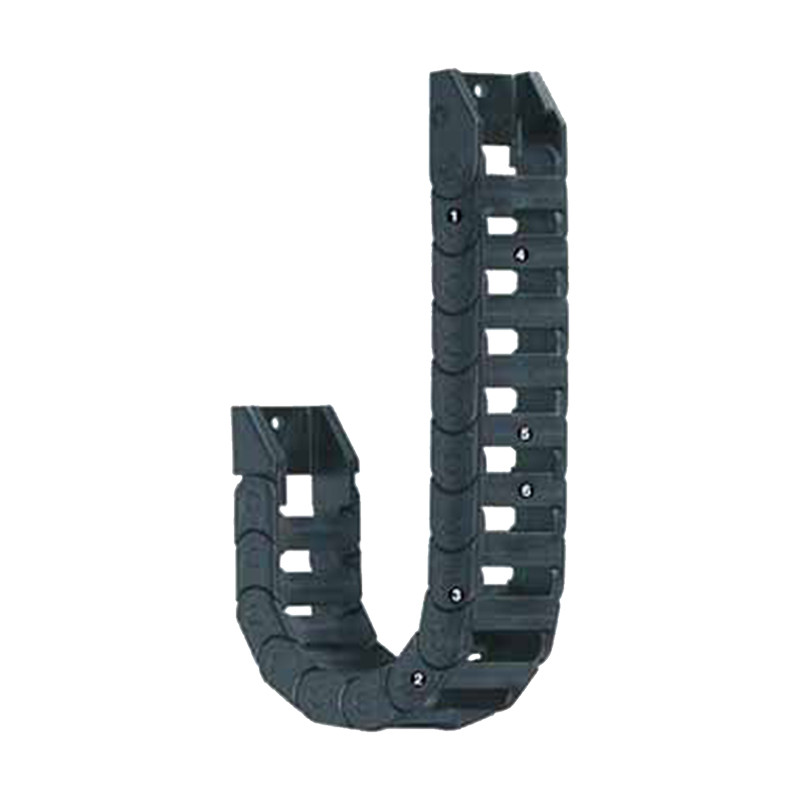

Cable carriers Series 045
  • Cable carriers Series 045

Photos are for informational purposes only. View product specification

Manufacturer: Igus

Cable carriers Series 045

Features:
  • Mounting bracket with strain relief option
  • Dirt-repellent exterior
  • Very lightweight, low price
  • One-piece design, non snap-open
  • Small pitch for smooth running


E2 micro Series 045 Dimensions


NameWidth Bi
[mm]
Width Ba
[mm]
Bending radius R
[mm]
045.06.018.0 6 12 18
045.06.028.0 6 12 28
045.06.038.0 6 12 38
045.10.018.0 10 16 18
045.10.028.0 10 16 28
045.10.038.0 10 16 38
045.16.018.0 16 22 18
045.16.028.0 16 22 28
045.16.038.0 16 22 38
045.20.018.0 20 26 18
045.20.028.0 20 26 28
045.20.038.0 20 26 38
045.30.018.0 30 36 18
045.30.028.0 30 36 28
045.30.038.0 30 36 38
045.64.018.0 64 70 18
045.64.028.0 64 70 28
045.64.038.0 64 70 38

Accessories
0450.06 - 0450.20 0450.30 - 0450.64
E2 micro Series 045 0450.06 - 0450.20 E2 micro Series 045 0450.06 - 0450.20

SeriesPart No. full set with tiewrap platesPart No. full
set without
tiewrap plates
Ilość zębówDim. A
[mm]
Dim. B
[mm]
045.06. 0450.06.12 PZ 0450.06.12  1 - -
045.10. 0450.10.12 PZ 0450.10.12  1 - -
045.16. 0450.16.12 PZ 0450.16.12  2 - 10
045.20. 0450.20.12 PZ 0450.20.12  2 - 10
045.30. 0450.30.12 PZ 0450.30.12  3 22 20
045.64. 0450.64.12 PZ 0450.64.12  6 56 30
