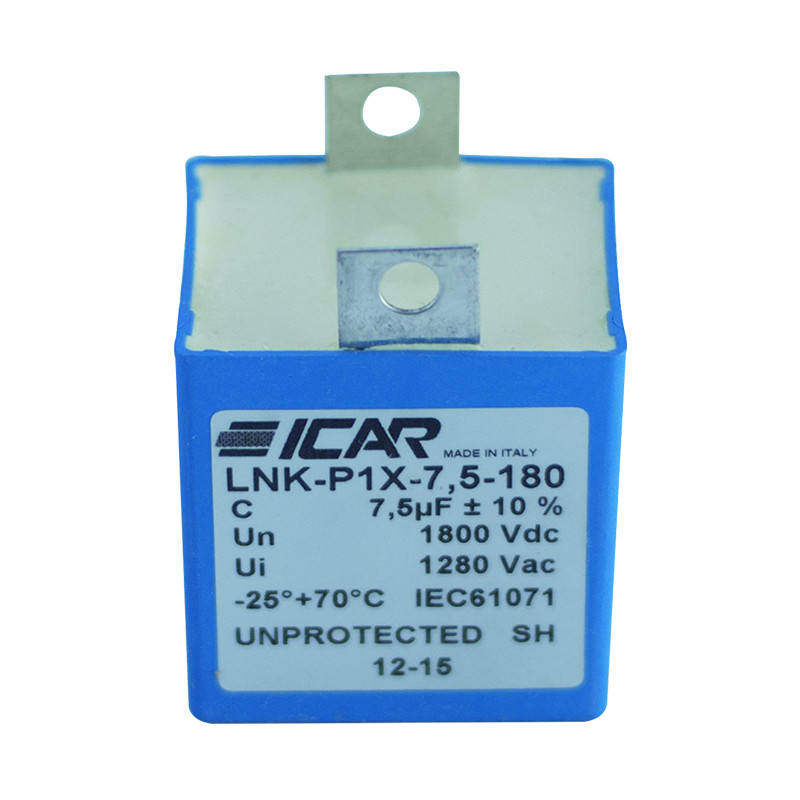

Capacitors DC series LNK-P1X
  • Capacitors DC series LNK-P1X

Photos are for informational purposes only. View product specification

Manufacturer: Icar

Capacitors DC series LNK-P1X

Tip
[µF]
UN
[V]
US
[V]
Imax
[A]
IPK
[A]
Ls
[nH]
Rs
[mΩ]
Rthn
[°C/W]
f
[kHz]
Težina
 [kg]

LNK-P1X-45-70

45 700 1400 40 1500 15 1,4 12,8 40 0,15

LNK-P1X-30-90

30 900 1800 35 1300 15 1,7 12,8 40 0,15

LNK-P1X-25-100

25 1000 2000 35 1300 15 1,8 12,8 40 0,15

LNK-P1X-22-110

22 1100 2200 35 1200 15 1,9 12,8 40 0,15

LNK-P1X-16-125

16 1250 2500 30 1000 15 2,28 12,8 40 0,15

LNK-P1X-10-145

10 1450 2900 25 700 15 3 12,8 40 0,15

LNK-P1X-7,5-180

7,5 1800 3600 20 700 15 3,25 12,8 40 0,15



Dimenzije [mm]
