Capacitors DC series LNK-P9X
  • Capacitors DC series LNK-P9X

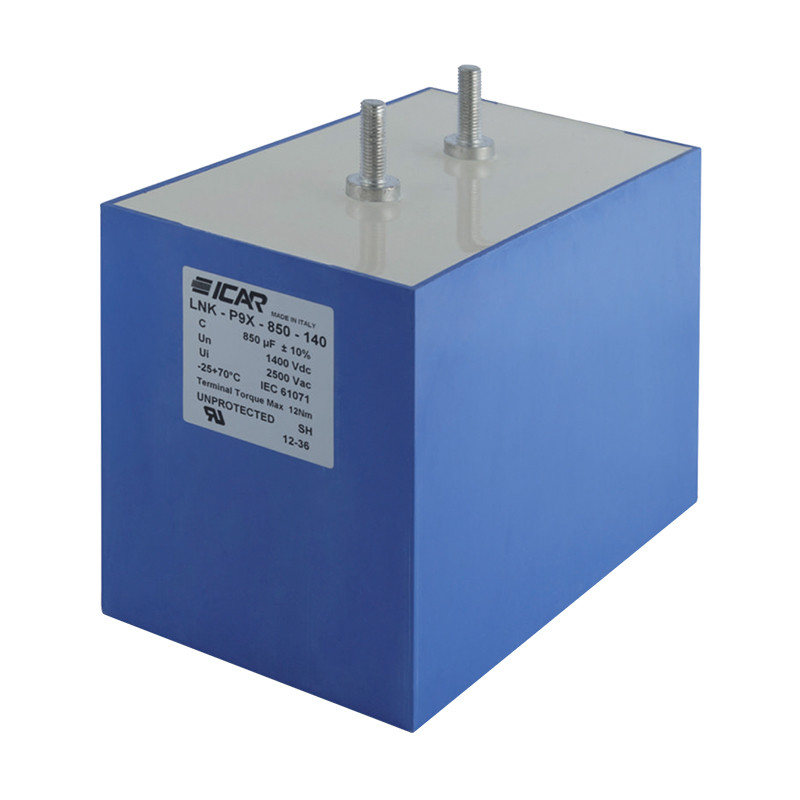

Photos are for informational purposes only. View product specification

Manufacturer: Icar

Capacitors DC series LNK-P9X

Typ
[µF]
UN
[V]
Us
[A]
Imax
[nH]
IPK
 [A]
IS
[nH]
RS
 [mΩ]
Rthn
[°C/W]
f
[kHz]
Weight
[kg]

LNK-P9X-3000-80

3000 800 1400 150 14500 <30 0,32 2,75 10 6,5

LNK-P9X-1750-100

1750 1000 2000 150 11000 <30 0,41 2,75 10 6,5

LNK-P9X-1350-110

1350 1100 2200 150 9500 <30 0,46 2,75 10 6,5

LNK-P9X-1250-120

1250 1200 2400 150 9500 <30 0,46 2,75 10 6,5

LNK-P9X-850-140

850 1400 2800 140 7500 <30 0,56 2,75 10 6,5

LNK-P9X-650-160

650 1600 3200 135 6500 <30 0,63 2,75 10 6,5

LNK-P9X-500-180

500 1800 3600 125 11000 <30 0,71 2,75 10 6,5

LNK-P9X-400-200

400 2000 4000 120 10000 <30 0,79 2,75 10 6,5

LNK-P9X-330-220

330 2200 4400 150 13500 <30 0,27 2,75 10 6,5

LNK-P9X-300-240

300 2400 4800 150 13000 <30 0,28 2,75 10 6,5

LNK-P9X-220-270

220 2700 5400 150 11000 <30 0,3 2,75 10 6,5

LNK-P9X-200-280

200 2800 5600 150 10000 <30 0,38 2,75 10 6,5

LNK-P9X-150-320

150 3200 6400 150 8500 <30 0,38 2,75 10 6,5

LNK-P9X-120-350

120 3500 7000 150 8000 <30 0,41 2,75 10 6,5


Dimensions [mm]

Kondensatory mocy DC seria LNK – P9X
