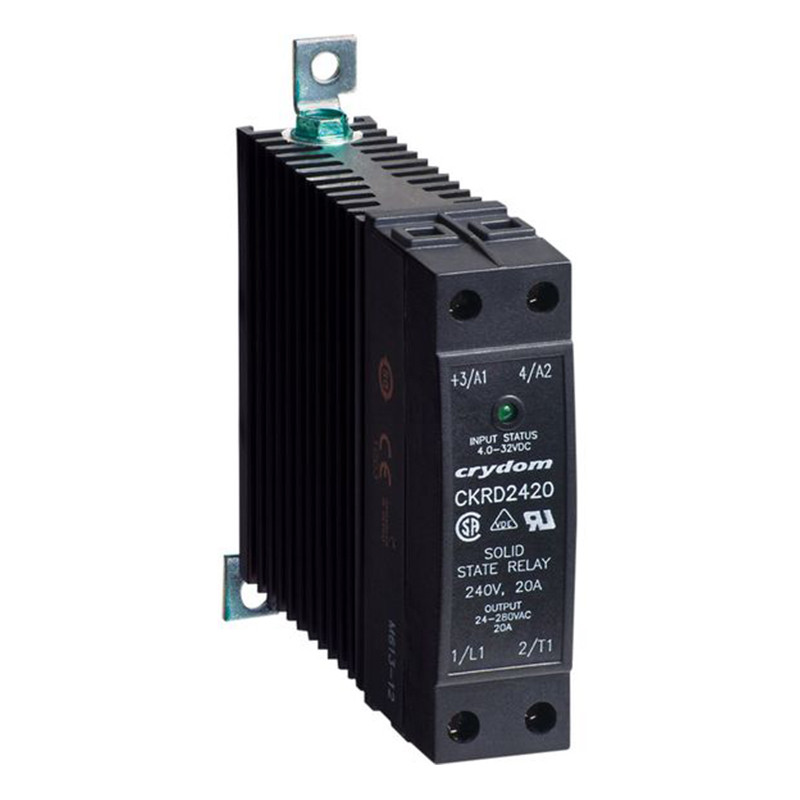

Ckr series single phase solid state relays
  • Ckr series single phase solid state relays

Photos are for informational purposes only. View product specification

Manufacturer: Crydom

Ckr series single phase solid state relays

- Insulation voltage: 4000Vrms
- Input/output capacity :8pF
- Operation temperature range+40ºC+80ºC
- Operation frequency range 47-63Hz
- Switching on method: at 0 voltage

Available options:
10 - immediate turn on
E - Control voltage 18-36VAC
P - Build in overvoltage protection

Marking example:
CKRD2425E
CKRD2425P
CKRD2425-10

SymbolOutput voltage
[Vrms]
Load current

[Arms]
Control voltage
[Vdc]
Input current
@ 12VDC
[mA]
Turn off voltage
[Vdc]
l2t

[A2t]

CKRD2410 24-280 .15-10 4.5-32 15 1.0 60 UL, CSA, VDE
CKRD2420 24-280 .15-20 4.5-32 15 1.0 260 UL, CSA, VDE
CKRD2430 24-280 .15-30 4.5-32 15 1.0 1620 UL, CSA, VDE
CKRD4810 48-530 .15-10 4.5-32 15 1.0 60 UL, CSA, VDE
CKRD4820 48-530 .15-20 4.5-32 15 1.0 260 UL, CSA, VDE
CKR4830 48-530 .15-30 4.5-32 15 1.0 1620 UL, CSA, VDE

SymbolOutput voltage
[Vrms]
Load current

[Arms]
Control voltage
[Vdc]
Input current
@ 12VDC
[mA]
Turn off voltage
[Vdc]
l2t

[A2t]

CKRA2410 24-280 .15-10 90-280 2 10 60 UL, CSA, VDE
CKRA2420 24-280 .15-20 90-280 2 10 260 UL, CSA, VDE
CKRA2430 24-280 .15-30 90-280 2 10 1620 UL, CSA, VDE
CKRA4810 48-530 .15-10 90-280 2 10 60 UL, CSA, VDE
CKRA4820 48-530 .15-20 90-280 2 10 260 UL, CSA, VDE
CKRA4830 48-530 .15-30 90-280 2 10 1620 UL, CSA, VDE

Dimensions [mm]
