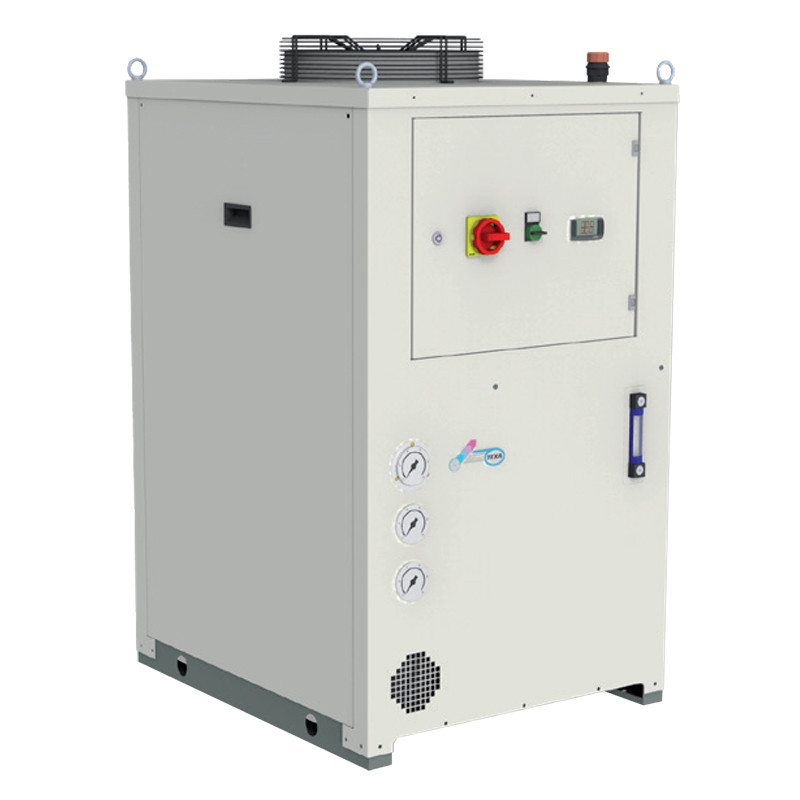

Coolers, chillers for oil cooling - 2 TCO56-A0 Size 2
  • Coolers, chillers for oil cooling - 2 TCO56-A0 Size 2

Photos are for informational purposes only. View product specification

Coolers, chillers for oil cooling - 2 TCO56-A0 Size 2

Cooling power range
6000 - 10900 W
Casing
steel, covered with polyester, colour RAL 7035, casing is removable .
Compressor:
Hermetically closed compressor with thermal protection
Cooling circuit :
Stub pipe for cooling liquid refill,  filter , high pressure switch, cooling liquid R134a
Evaporator:
:
Plate heat exchanger with icing protection
Condenser:
High efficient,spiral exchanger with ribs, protected with steel net
Axial fan:
Protected thermally and with metal net.
Hydraulic circuit :
Consists of high pressure oil pump 20br, pressure control valve 5bar. Manometer 0-25 bar. Oil container is mounted on the client request.
Temperature control.
is done by the microprocessor controller TX200, which allows for water temperature control as well as setting of the alarms, lights and turning device on/off.

Dimensions


Technical data
TypeTCO 56TCO 70TCO 91TCO A0
Nominal cooling power [W] 6000 8100 9200 10900
Ambient temperature [°C] +15 - + 45
Water temperature [°C] +20- + 35
Cooling liquid R134a
Power supply [V / Hz] 400 3f/50
Power [W] 4430 4530 4830 5230
Pump:
oil flow [l/min] 20,0 20, 0 20, 0 20, 0
oil pressure [bar] 20,0 20, 0 20, 0 20,0
Container capacity  [l] 60 (oil container mounted on clients request)

Water terminal[BPS]

 3/4"
Weight[kg] 142 144 147 150
