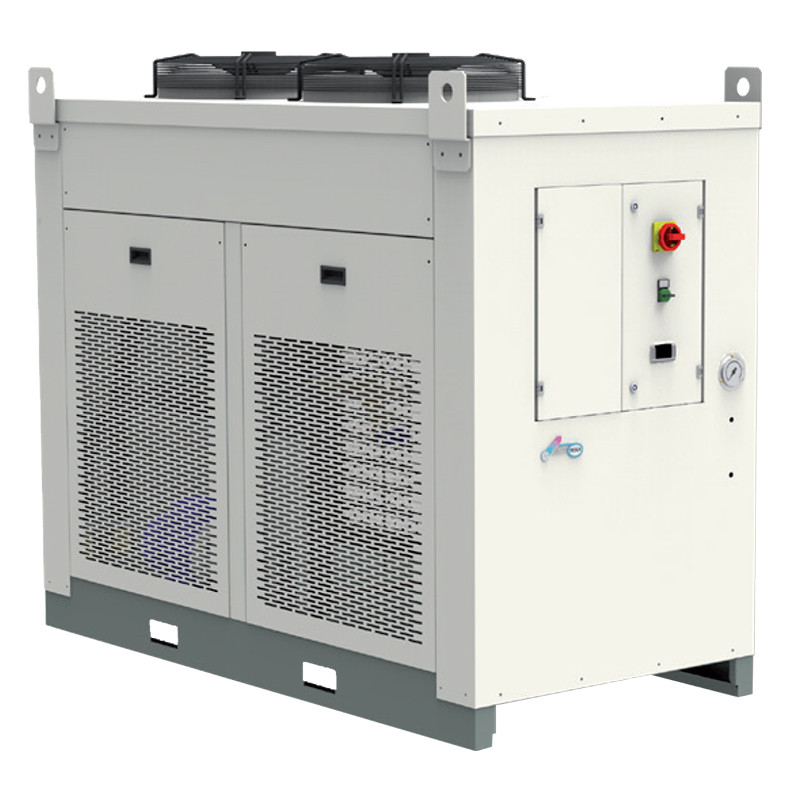

Photos are for informational purposes only. View product specification

Coolers, chillers for oil cooling - 3 TCOA2-A9 Size 3

Cooling power range
123 00- 20700 [W ]
Casing :
steel, covered with polyester, colour RAL 7035, casing is removable .
Compressor:
Hermetically closed compressor with thermal protection
Cooling circuit :
Stub pipe for cooling liquid refill,  filter , high pressure switch, cooling liquid R410A
Evaporator:
Plate heat exchanger with icing protection
Condenser:
High efficient,spiral exchanger with ribs, protected with steel net
Axial fan:
Protected thermally and with metal net.
Hydraulic circuit :
Consists of high pressure oil pump 20br, pressure control valve 5bar. Manometer 0-25 bar. Oil container is mounted on the client request.
Temperature control.
is done by the microprocessor controller TX200, which allows for water temperature control as well as setting of the alarms, lights and turning device on/off.

Dimensions


Technical data
TypeTCO A2TCO A4TCO A7TCO a9
Nominal cooling power [W] 12300 16400 17800 20700
Ambient temperature [°C] +15- + 45
Water temperature [°C] +20 - + 35
Cooling liquid R410A
Power supply [V / Hz] 40 0 3f / 50
Power [W] 7500 9200 940 0 10200
Pump:
oil flow [l/min] 40,0 40, 0 40, 0 40,0
oil pressure [bar] 20,0 20, 0 20, 0 20,0
Container capacity  [l] 150 (oil container mounted on clients request)

Water terminal[BPS]

 1’’
Weight[kg] 230 235 245 250
