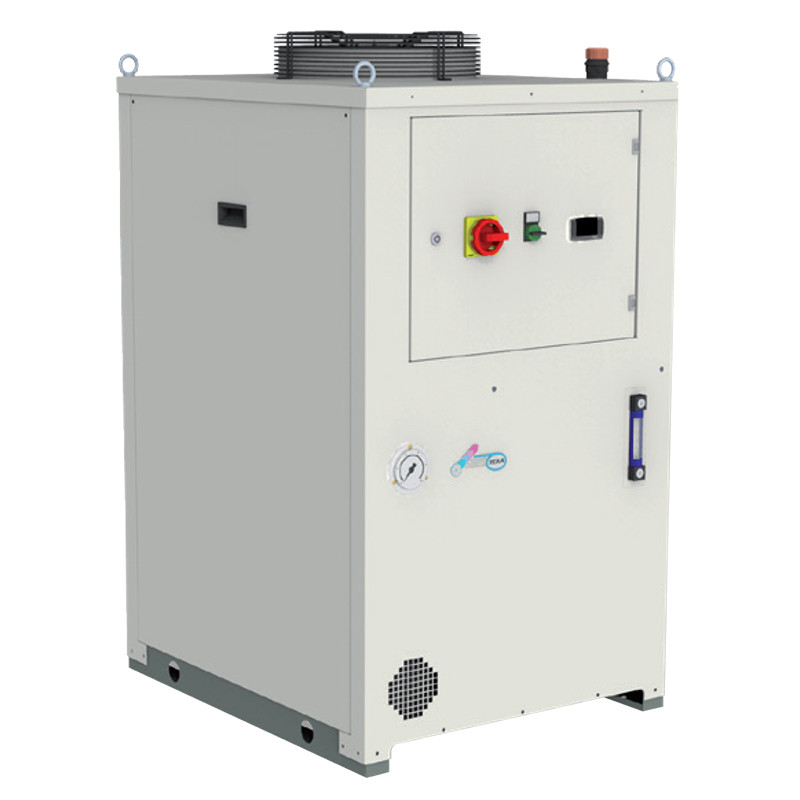

Coolers, chillers for water cooling - 2 TCW56-A0 Size 2

Cooling power range
6000 - 10900 W
Casing :
steel, covered with polyester, colour RAL 7035, casing is removable .
Compressor:
Hermetically closed compressor with thermal protection
Cooling circuit :
Stub pipe for cooling liquid refill,  filter , high pressure switch, cooling liquid R134a
Evaporator:
Plate heat exchanger with icing protection and flow sensor
Condenser:
High efficient,spiral exchanger with ribs, protected with steel net
Axial fan:
Protected thermally and with metal net.
Hydraulic circuit :
Consist of electric pump, plastic water container, valve, manometer 0-10 bar . Evaporator is protected with flow sensor
Temperature control.
is done by the microprocessor controller TX200, which allows for water temperature control as well as setting of the alarms, lights and turning device on/off.

Dimensions


Technical data
TypeTCW 56TCW 70TCW 91TCW A0
Nominal cooling power [W] 6000 8100 9200 10900
Ambient temperature [°C] + 15 - + 45
Water temperature [°C] + 8 - + 25
Cooling liquid R134 a
Power supply [V / Hz] 400 V 3f / 50
Power [W] 4030 4130 4430 4830
Pump:
water flow [l/min] 17,0 / 50,0 23,0 / 50,0 26,0 / 50,0 32,0 / 50,0
water pressure [bar] 3,0 2,8 2,5 2,3
Container capacity  [l] 60,0

Water terminal[BPS]

¾’’
Weight[kg] 152,0 154,0 157,0 160,0
