Photos are for informational purposes only. View product specification

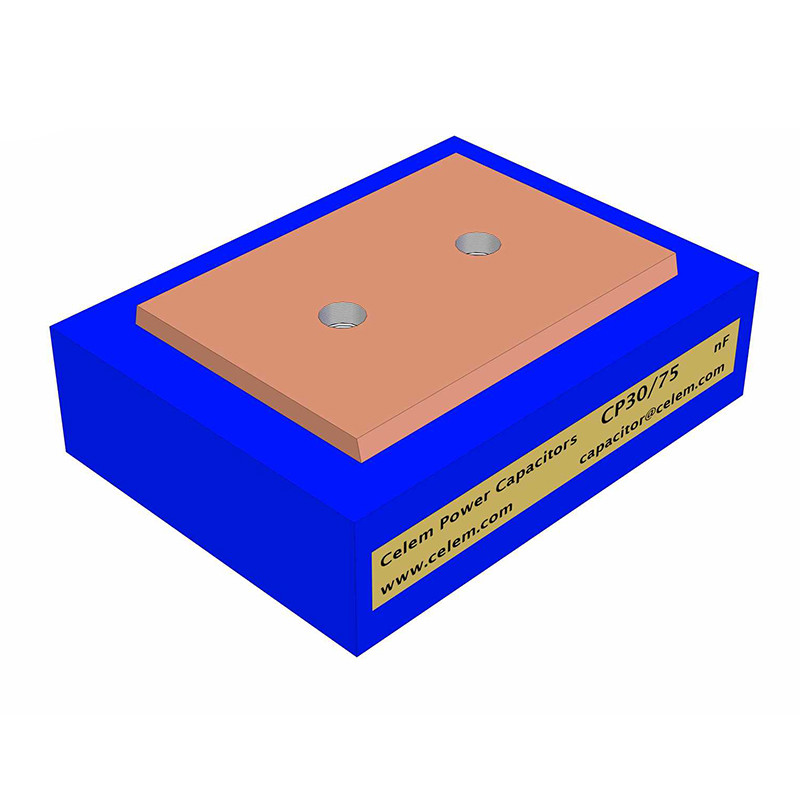

CP 30/75
![]() |
Electrical data
Type | CP 30/75 | |||||||||
---|---|---|---|---|---|---|---|---|---|---|
Dimensions | [mm] | 60x45x18(max) | ||||||||
Weight | [kg] | do 0,2 do 0,3 | ||||||||
Capacity(±10%) | [µF] | 0,01 | 0,045 | 0,05 | 0,01 | 0,15 | 0,001 | 0,01 | 0,045 | 0,05 |
Sinusoidal Voltage | [VRMS] | 500 | 1000 | |||||||
Impulse voltage | [V] | 710 | 1410 | |||||||
Max current | [A] | 150 | 75 | |||||||
Max power | [kVAr] | 75 |
Dimensions
![]() |
Characteristics
![]() |
