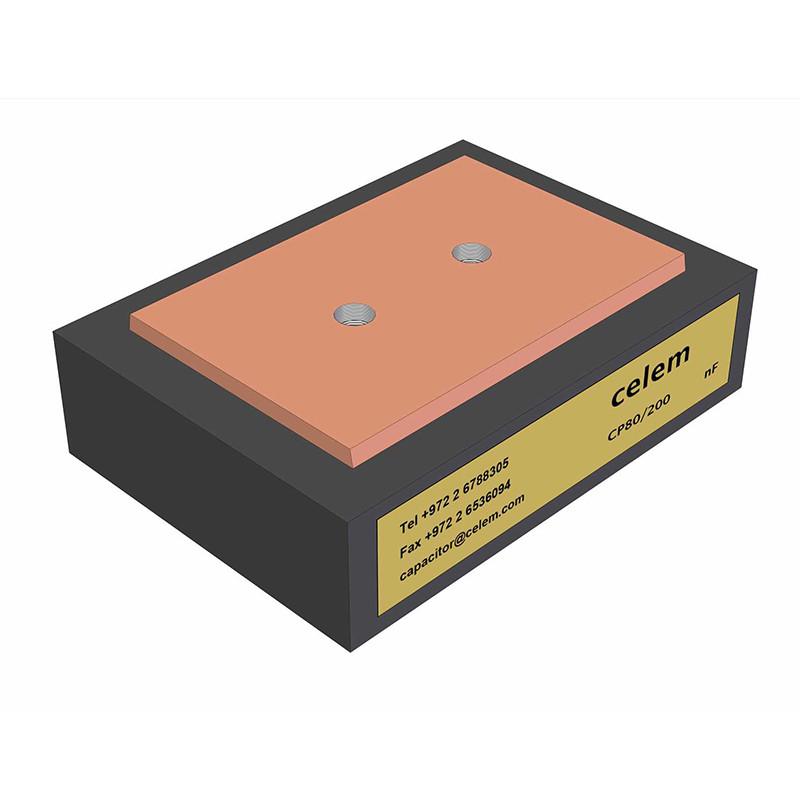

CP 80/200
  • CP 80/200

Photos are for informational purposes only. View product specification

Manufacturer: Celem

CP 80/200

CP 80/200

Dimensions [mm]
Electrical data

TypeCP 80/200
Dimensions (LxWxH) [mm] 75x50x(od 20 do 32)
Weight [kg] od 0,3 do 0,55
Capacity(±10%) [µF] 0,02 0,04 0,05 0,1 0,2 0,25 1 0,001 0,01 0,04 0,05 0,06 0,07 0,1 0,25
Sinusoidal Voltage [VRMS] 500 900
Impulse voltage [V] 710 1270
Max current [A] 400 200
Max power [kVAr] 200 180
Characteristics
