CPRI 400 P
  • CPRI 400 P

Photos are for informational purposes only. View product specification

Manufacturer: Celem

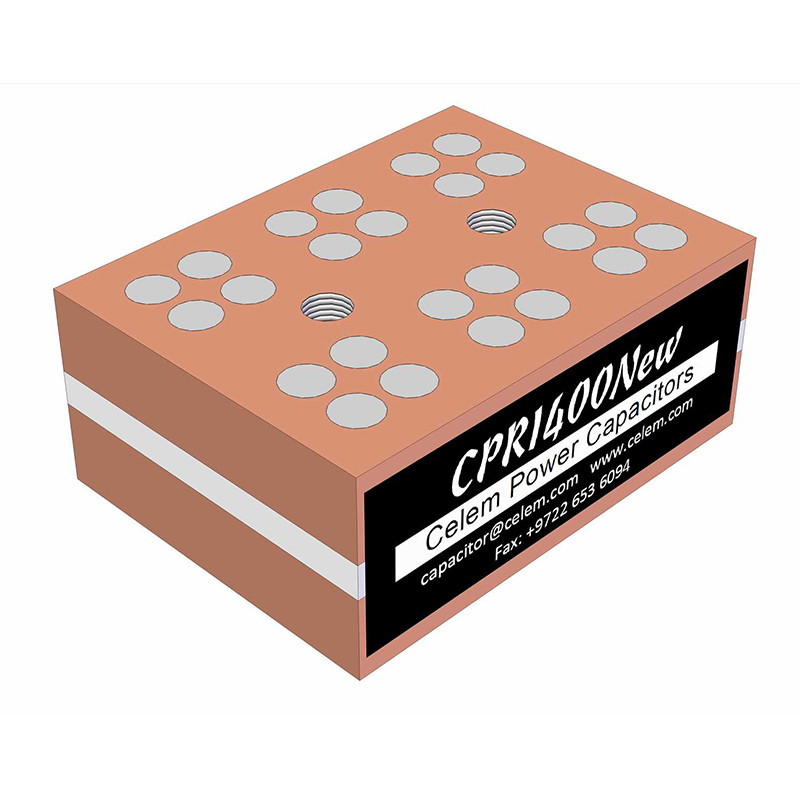

CPRI 400 P

CPRI 400 P

rysunek

Electrical data

TypCPRI 400P
Dimensions [LxWxH] 73x55x30,2
Weight [kg] 0,8
Capacity(±10%) [µF] 0,15 0,2 0,25 0,3 0,51 1 1,3 2
Sinusoidal Voltage [VRMS] 1000 700 500
Impulse voltage [V] 1410 990 710
Max current [A] 450 600 750
Max power [kVAr] 400
Frequency range @ Full power [kHz] 424-537 318-403 255-322 212-477 255-281 130-224 184-184 119-119

Dimensions [mm]

rysunek

Characteristics

rysunek
