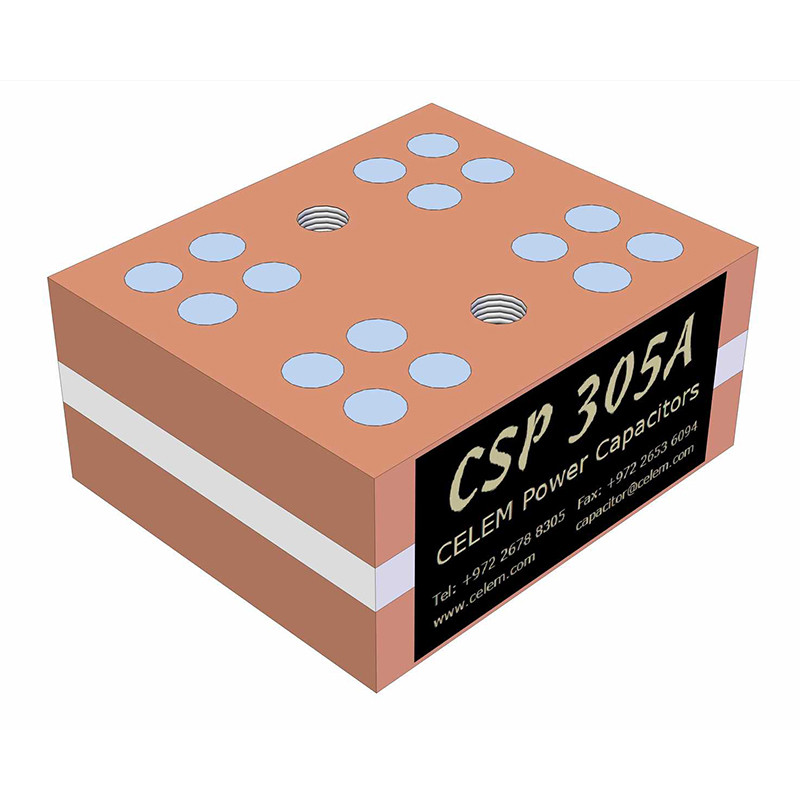

CSP 305A/B
  • CSP 305A/B

Photos are for informational purposes only. View product specification

Manufacturer: Celem

CSP 305A/B

CSP 305A/B

rysunek

Electrical data

TypeCSP 305A/B
Dimensions [LxWxH] A: 66x56x302, B: 60x60x30,2
Weight [kg] 0,6
Capacity(±10%) [µF] 0,1 0,2 0,34 0,68 1 1,3 2,7 4,8
Sinusoidal Voltage [VRMS] 1000 700 600 500 400
Impulse voltage [V] 1410 990 850 710 570
Max current [A] 350 400 500 650 675 750
Max power [kVAr] 300
Frequency range @ Full power [kHz] 477-700 239-373 287-390 143-195 133-224 102-172 71-90 62-62
Dissipation Inductance [nH] <5


Dimensions [mm]

rysunek

Characteristics

rysunek
