Current transducer HOYL and HOYS series
  • Current transducer HOYL and HOYS series

Photos are for informational purposes only. View product specification

Manufacturer: LEM

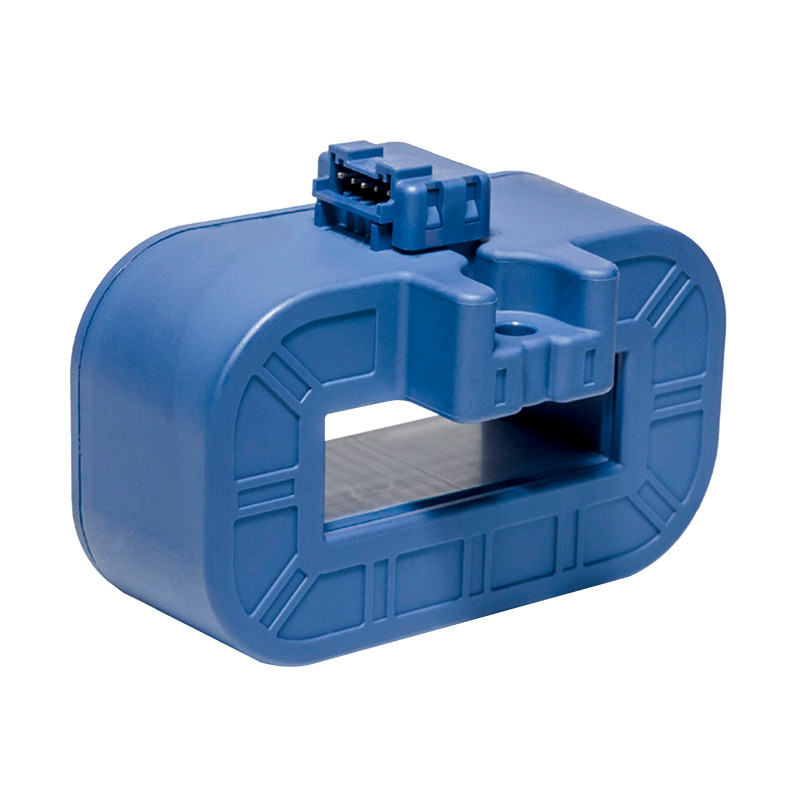

Current transducer HOYL and HOYS series

Current transducer HOYL and HOYS series

HOYS and HOYL are two new series of current transducers, designed to be mounted directly on the conductor rail. The transducers for the electronic measurement of current: DC , AC and pulsed with galvanic isolation between the primary and secondary circuits.



Features:

  • Open loop multi-range current transducer
  • Voltage output
  • Single supply +5 V
  • Overcurrent detect 2.93 × IPN (peak value)
  • Galvanic separation between primary and secondary
    circuit
  • Low power consumption
  • For busbar mounting
  • Aperture: 21.5 × 13 mm
  • Factory calibrated
  • Mating JST connector:
    - housing PAP-05V-S
    - contact SPHD-00xT-P0.5.

Advantages:

  • Low offset drift
  • Over-drivable V ref
  • Creepage / clearance > 10.5 mm
  • Fast response
  • Low proile 2 mm pitch connector for 22 to 28 AWG wire.

Applications:

  • AC variable speed and servo motor drives
  • Static converters for DC motor drives
  • Battery supplied applications
  • Uninterruptible Power Supplies (UPS)
  • Switched Mode Power Supplies (SMPS)
  • Power supplies for welding applications
  • Combiner box
  • Solar inverter on DC side of the inverter (MPPT).

Technical data

ModelPrimary
Nominal Value		Measuring
Range		Secondary
Nominal
Signal		Supply Voltage
[V]		Accuracy
[%]		Mounting
HOYL 200-S-0100 200A 500A 0.8V 5V Uni 1% On primary fastening, Panel
HOYL 200-S/SP33-1106 200A 500A 0.46V 3.3V Uni 1% On primary fastening, Panel
HOYL 400-S-0100 400A 1000A 0.8V 5V Uni 1% On primary fastening, Panel
HOYL 400-S/SP33-1106 400A 1000A 0.46V 3.3V Uni 1% On primary fastening, Panel
HOYL 600-S-0100 600A 1500A 0.8V 5V Uni 1% On primary fastening, Panel
HOYL 600-S/SP33-1106 600A 1500A 0.46V 3.3V Uni 1% On primary fastening, Panel
HOYL 800-S-0100 800A 2000A 0.8V 5V Uni 1% On primary fastening, Panel
HOYL 800-S/SP33-1106 800A 2000A 0.46V 3.3V Uni 1% On primary fastening, Panel
HOYS 100-S-0100 100A 250A 0.8V 5V Uni 1% On primary fastening, Panel
HOYS 100-S/SP33-1106 100A 250A 0.46V 3.3V Uni 1.25% On primary fastening, Panel
HOYS 200-S-0100 200A 500A 0.8V 5V Uni 1% On primary fastening, Panel
HOYS 200-S/SP33-1106 200A 500A 0.46V 3.3V Uni 1.25% On primary fastening, Panel
HOYS 400-S-0100 400A 1000A 0.8V 5V Uni 1% On primary fastening, Panel
HOYS 400-S/SP33-1106 400A 1000A 0.46V 3.3V Uni 1% On primary fastening, Panel
HOYS 500-S-0100 500A 1250A 0.8V 5V Uni 1% On primary fastening, Panel
HOYS 500-S/SP33-1106 500A 1250A 0.46V 3.3V Uni 1% On primary fastening, Panel
HOYS 560-S-0100 560A 1400A 0.8V 5V Uni 1% On primary fastening, Panel
HOYS 560-S/SP33-1106 560A 1400A 0.46V 3.3V Uni 1% On primary fastening, Panel

Example processing characteristics (HOYL 200-S)

Przetworniki do montażu bezpośrednio na szynie prądowej serii HOYL i HOYS - charakterysyka

Dimensions

HOYL

Przetworniki do montażu bezpośrednio na szynie prądowej serii HOYL - wymiary

HOYS

Przetworniki do montażu bezpośrednio na szynie prądowej serii HOYS - wymiary

Connection

Przetworniki do montażu bezpośrednio na szynie prądowej serii HOYL i HOYS - schemat podłączenia
