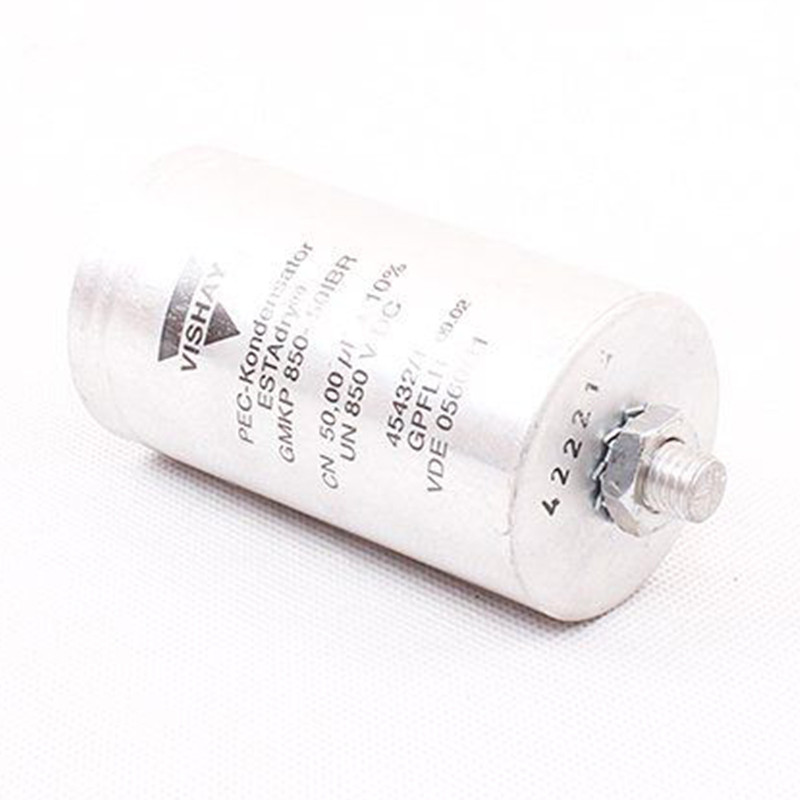

Photos are for informational purposes only. View product specification

Manufacturer: Vishay

DC capacitors - GMKP/GA 630V-12000V series

DC CAPACITORS – GMKP/GA 630V-12000V series

Electrical data:
Temperature range

Casing temperature
-25°C - 70°C
Storage temperature
-40°C - 85°C
Humidity
95%
Life time (z 3% error coefficient)
100 000 h
Capacity tolerance
±10%
Voltage test (terminal/terminal):

•  GMKP series
1,5 x UN DC/1 Os
•  GA series
2,0 x UN  DC/1 Os
Voltage test (terminal/casing):
2 x (UN√2)+1000V AC/60s

(min. 3000V/AC/60s)
Repeatable impulse current
du/dt x C(A)
Lossiness coefficient

• (50 Hz)
-4
• (1 kHz)
-4
Electrical terminals
plug AMP 6,3 x 0,8mm, screw Ml 0
Impregnation:
NON PCB
Dielectric:

• GMKP
polyester foil, self regenerating
• GA
polypropylene foil , no regeneration
Assembly
vertical/horizontal



DC CAPACITORS – GMKP/GA 630V-12000V series

TypeCapacity
[µF]
I
[A]
du/dt
[V/µS]
L
[nH]
Dimensions[mm]
Ø xh
Weight
[kg]
Drawing number
SERIA GMKP 630                   NOMINAL VOLTAGE630VDC               URMS=330V

GMKP 630 -4IA

4 12 500 <150 30x72 0,05 1

GMKP 630 -8IA

8 12 500 <150 30x72 0,05 1

GMKP 630 -10IA

10 15 500 <150 30x72 0,05 1

GMKP 630 -16IA

16 15 500 <150 35x72 0,07 1

GMKP 630 -20IA

20 15 300 <150 40x72 0,09 1

GMKP 630 -32IA

32 18 200 <150 50x72 0,14 1

GMKP 630 -40IA

40 18 200 <150 40x127 0,16 1

GMKP 630 -64IA

64 20 200 <150 50x109 0,21 5

GMKP 630 -80IA

80 20 200 <150 50x127 0,25 5

GMKP 630 -100IA

100 20 150 <150 60x127 0,31 5

GMKP 630 -160IA

160 20 120 <200 64x190 0,61 5

GMKP 630 -200IS

200 35 100 <200 84x40 0,78 6

GMKP 630 -300IS

300 35 70 <200 84x190 1,05 6

GMKP 630 -400IS

400 35 55 <220 84x240 1,33 6

GMKP 630 -600IS

600 35 50 <250 84x340 1,88 6

TypeCapacity
[µF]
I
[A]
du/dt
[V/µS]
L
[nH]
Dimensions[mm]
Øxh
Weight
[kg]
Drawing number
SERIA GMKP/GA 750                            NOMINAL VOLTAGE750VDC                            URMS=400V

GMKP 750 -2IA

2 12 500 <150 30x52 0,04 1

GMKP 750 -4IA

4 12 500 <150 30x72 0,05 1

GMKP 750 -8IA

8 12 500 <150 35x72 0,07 1

GMKP 750 -10IA

10 15 500 <150 35x72 0,07 1

GMKP 750 -16IA

16 15 500 <150 40x72 0,09 1

GMKP 750 -20IA

20 15 300 <150 50x72 0,14 1

GMKP 750 -32IA

32 18 200 <150 40x127 0,16 1

GMKP 750 -40IA

40 18 200 <150 50x127 0,25 1

GMKP 750 -64IA

64 20 200 <150 60x127 0,36 5

GMKP 750 -80IA

80 20 200 <150 60x127 0,36 5

GMKP 750 -100IA

100 20 150 <180 64x127 0,45 5

GMKP 750 -160IS

160 20 120 <200 84x140 0,78 5

GMKP 750 -200IS

200 35 100 <200 84x190 1,06 6

GMKP 750 -300IS

300 35 70 <220 84x240 1,33 6

GMKP 750 -400IS

400 35 55 <250 84x295 1,63 6
SERIA GMKP 850                                 NOMINAL VOLTAGE850VDC                               URMS=440V

GMKP 850 -2IA

2 12 500 <150 30x52 0,04 1

GMKP 850 - 4IA

4 12 500 <150 30x72 0,05 1

GMKP 850 - 8IA

8 15 500 <150 40x72 0,09 1

GMKP 850 - 10IA

10 15 500 <150 40x72 0,09 1

GMKP 850 - 16IA

16 15 500 <150 50x72 0,14 1

GMKP 850 - 20IA

20 18 300 <150 40x127 0,16 1

GMKP 850 - 32IA

32 18 200 <150 50x127 0,25 5

GMKP 850 - 40IA

40 20 200 <150 60x109 0,31 5

GMKP 850 - 64IA

64 20 200 <150 60x127 0,36 5

GMKP 850 - 80IA

80 20 200 <200 64x140 0,45 5

GMKP 850 - 100IA

100 20 150 <200 64x190 0,61 5

GMKP 850 - 200IS

200 35 100 <200 84x190 1,05 6

GMKP 850 - 300IS

300 35 70 <220 84x240 1,33 6

GMKP 850 -500IS

400 35 55 <250 84x295 1,63 6

GMKP 850 - 600IS

500 35 50 <250 84x340 1,88 6
SERIA GMKP 1000                             NOMINAL VOLTAGE1000VDC                                            URMS=470V

GMKP 1000 - 2IA

2 12 500 <150 30x52 0,04 1

GMKP 1000 - 4IA

4 12 500 <150 30x72 0,05 1

GMKP 1000 - 8IA

8 12 500 <150 40x72 0,09 1

GMKP 1000 - 10IA

10 15 500 <150 40x72 0,09 1

GMKP 1000 - 16IA

16 15 500 <150 50x72 0,14 1

GMKP 1000 - 20IA

20 15 300 <150 50x97 0,18 1

GMKP 1000 - 32IA

32 18 200 <150 50x127 0,25 1

GMKP 1000 - 40IA

40 18 200 <150 50x127 0,25 1

GMKP 1000 - 64IA

64 20 200 <150 64x140 0,45 5

GMKP 1000 - 80IA

80 20 200 <200 64x190 0,61 5

GMKP 1000 - 100IA

100 20 150 <200 84x140 0,78 5

GMKP 1000 - 160IS

160 20 100 <200 84x190 1,05 5

GMKP 1000 -200IS

200 35 70 <220 84x240 1,34 6

GMKP 1000 -300IS

300 35 55 <250 84x295 1,63 6

GMKP 1000 - 400IS

400 35 50 <250 84x340 1,88 6
SERIA GMKP 1250                               NOMINAL VOLTAGE1250VDC                                                URMS=530V

GMKP 1250 - 2SA

2 12 500 <150 40x72 0,05 4

GMKP 1250 - 4SA

4 12 500 <150 40x72 0,07 4

GMKP 1250 - 8SA

8 15 500 <150 40x97 0,12 4

GMKP 1250 - 10IA

10 15 500 <150 50x72 0,14 5

GMKP 1250 - 16IA

16 15 500 <150 40x127 0,16 5

GMKP 1250 - 20IA

20 18 300 <150 50x127 0,25 5

GMKP 1250 - 32IA

32 18 200 <150 60x127 0,36 5

GMKP 1250 - 40IA

40 20 200 <150 60x127 0,36 5

GMKP 1250 - 64IA

64 20 200 <200 84x140 0,78 5

GMKP 1250 - 80IB

80 30 200 <200 84x190 1,05 7

GMKP 1250 - 100IB

100 30 150 <200 84x190 1,05 7

GMKP 1250 - 160IB

160 35 120 <220 84x240 1,33 7

GMKP 1250 - 240IB

240 35 85 <250 84x340 1,88 7

TypeCapacity
[µF]
I
[A]
du/dt
[V/µS]
L
[nH]
Dimensions[mm]
Øxh
Weight
[kg]
Drawing number
SERIA GMKP 1500                            NOMINAL VOLTAGE1500VDC                                              URMS=580V

GMPK 1500 - 2SA

2 12 500 <150 40x72 0,05 4

GMPK 1500 - 4SA

4 12 500 <150 40x72 0,09 4

GMPK 1500 - 8IA

8 12 500 <150 50x72 0,14 5

GMPK 1500 - 10IA

10 15 500 <150 50x97 0,19 5

GMPK 1500 - 16IA

16 15 500 <150 50x127 0,25 5

GMPK 1500 - 20IA

20 15 300 <200 60x127 0,36 5

GMPK 1500 - 32IA

32 18 200 <200 64x140 0,45 5

GMPK 1500 - 40IA

40 18 200 <200 84x140 0,78 5

GMPK 1500 - 64IB

64 30 200 <200 84x190 1,05 7

GMPK 1500 - 80IB

80 30 200 <200 84x190 1,05 7

GMPK 1500 - 100IB

100 35 150 <220 84x240 1,33 7

GMPK 1500 - 160IB

160 35 120 <250 84x340 1,88 7
SERIA GMKP 1800                              NOMINAL VOLTAGE1800VDC

GMKP 1800 - 2SA

2 12 500 <150 40x72 0,07 4

GMKP 1800 - 4IA

4 12 500 <150 50x72 0,14 5

GMKP 1800 - 8IA

8 15 500 <150 50x127 0,25 5

GMKP 1800 - 10IA

10 15 500 <150 50x127 0,25 5

GMKP 1800 - 16IA

16 15 500 <150 60x127 0,36 5

GMKP 1800 - 20IA

20 18 300 <150 64x140 0,41 5

GMKP 1800 - 32IB

32 20 200 <200 84x140 0,78 7

GMKP 1800 - 40IB

40 25 200 <120 84x190 1,05 7

GMKP 1800 - 64IB

64 30 200 <220 84x240 1,33 7

GMKP 1800 - 80IB

80 35 200 <250 84x265 1,47 7

GMKP 1800 - 100IB

100 35 150 <250 84x340 1,88 7
SERIA GMKP 2150                              NOMINAL VOLTAGE2150VDC

GMKP 2150 - 2SA

2 12 500 <150 40x127 0,16 4

GMKP 2150 - 2IA

2 12 500 <150 50x97 0,18 5

GMKP 2150 - 4IA

4 12 500 <150 50x127 0,25 5

GMKP 2150 - 8IA

8 15 500 <150 60x127 0,36 5

GMKP 2150 - 10IA

10 15 500 <150 60x127 0,36 5

GMKP 2150 - 16IA

16 18 500 <200 64x140 0,45 5

GMKP 2150 - 20IB

20 25 200 <150 84x140 0,78 7

GMKP 2150 - 32IB

32 30 200 <150 84x190 1,05

GMKP 2150 - 40IB

40 35 200 <150 84x210 1,16 7

GMKP 2150 - 50IB

50 35 200 <200 84x240 1,33 7
SERIA GMKP 3000                                NOMINAL VOLTAGE3000VDC

GMKP 3000 - 0,5SA

0,5 12 500 <150 40x92 0,12 4

GMKP 3000 - 1SA

1 12 500 <150 40x92 0,12 4

GMKP 3000 - 2SA

2 12 500 <150 40x127 0,16 4

GMKP 3000 - 2IA

2 15 500 <150 50x97 0,18 5

GMKP 3000 - 4IA

4 15 500 <150 50x127 0,25 5

GMKP 3000 - 8IA

8 15 500 <150 64x140 0,41 5

GMKP 3000 - 10IA

10 18 400 <200 64x190 0,61 5

GMKP 3000 - 16IB

16 25 300 <200 64x240 1,05 9

GMKP 3000 - 20IB

20 35 300 <200 84x190 1,05 9

GMKP 3000 - 28IB

28 35 200 <250 84x240 1,33 9
SERIA GMKP 3600                           NOMINAL VOLTAGE3600VDC

GMKP 3600 - 0,5SB

0,5 12 500 <150 50x82 0,18 8

GMKP 3600 - 1SB

1 12 500 <150 50x97 0,2 8

GMKP 3600 - 2SB

2 15 500 <150 50x127 0,25 8

GMKP 3600 - 4IB

4 25 500 <150 64x140 0,41 8

GMKP 3600 - 8SB

8 30 300 <200 64x190 0,61 8

GMKP 3600 - 10IB

10 35 300 <200 84x190 1,05 9

GMKP 3600 - 16IB

16 35 300 <220 84x240 1,33 9
SERIA GA 4275                                NOMINAL VOLTAGE4275VDC

GA 4275 - 0,5SB

0,5 12 500 <150 50x82 0,16 8

GA 4275 - 1SB

1 12 500 <150 60x82 0,23 8

GA 4275 - 2SB

2 18 500 <200 64x140 0,45 8

GA 4275 - 4SB

4 25 500 <200 84x140 0,78 8

GA 4275 - 5SB

5 30 500 <200 84x190 1,05 8

GA 4275 - 8SB

8 35 500 <200 84x210 1,16 8

GA 4275 - 10SB

10 35 500 <250 84x295 1,63 8

TypeCapacity
[µF]
I
[A]
du/dt
[V/µS]
L
[nH]
Dimensions[mm]
Øxh
Weight
[kg]
Drawing number
SERIA GA 6300                 NOMINAL VOLTAGE6300VDC

GA 6300 - 0,2SB

0,25 15 500 <150 50x109 0,21 8|

GA 6300 - 0,3SB

0,33 15 500 <150 60x109 0,31 8

GA 6300 - 0,5SB

0,5 15 500 <150 60x109 0,31 8

GA 6300 - 1SB

1 20 500 <200 60x190 0,54 8

GA 6300 - 2SB

2 25 500 <200 84x140 0,78 8

GA 6300 - 3SB

3 25 500 <200 84x190 1,05 8

GA 6300 - 4SB

4 30 500 <220 84x190 1,05 8

GA 6300 - 5SB

5 35 500 <250 84x295 1,63 8

GA 6300 - 6SB

6 35 500 <250 84x340 1,88 8
SERIA GA 7200                  NOMINAL VOLTAGE7200VDC

GA 7200 - 0,1SB

0,1 12 500 <150 50x82 0,16 8

GA 7200 - 0,2SB

0,2 15 500 <150 60x92 0,26 8

GA 7200 - 0,5SB

0,5 15 500 <150 60x127 0,36 8

GA 7200 - 1,0SB

1 20 500 <200 64x190 0,61 8

GA 7200 - 1,5SB

1,5 20 500 <200 64x190 0,61 8

GA 7200 - 2,0SB

2 25 500 <200 84x190 1,05 8

GA 7200 - 3,0SB

3 30 500 <200 84x210 1,16 8
SERIA GA 10000                NOMINAL VOLTAGE10000VDC

GA 10,0 - 0,1SB

0,1 12 500 <150 50x127 0,25 8

GA 10,0 - 0,2SB

0,2 12 500 <150 60x127 0,36 8

GA 10,0 - 0,5SB

0,5 12 500 <200 84x140 0,78 8

GA 10,0 - 1SB

1 15 500 <200 64x240 0,77 8

GA 10,0 - 2SB

2 15 500 <200 84x210 1,16 8
SERIA GA 12000                 NOMINAL VOLTAGE12000VDC

GA 12,0 - 0,1SB

0,1 12 500 <150 60x127 0,36 8

GA 12,0 - 0,2SB

0,2 15 500 <200 64x140 0,45 8

GA 12,0 - 0,5SB

0,5 25 500 <200 84x190 1,05 8

GA 12,0 - 1,0SB

1 30 500 <200 84x240 1,34 8

Dimensions and drawings

Drawing 1 Drawing 4 Drawing 5 Drawing 6
Drawing 7 Drawing 8 Drawing 9
