ENDA ECSC Configurable Signal Converter
  • ENDA ECSC Configurable Signal Converter

Photos are for informational purposes only. View product specification

Manufacturer: Sisel

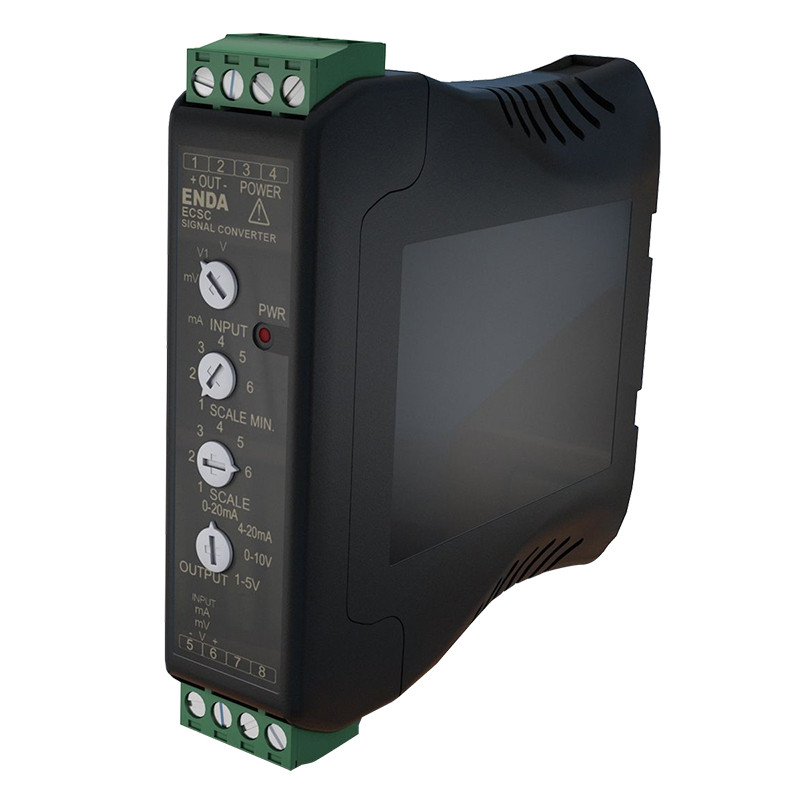

ENDA ECSC Configurable Signal Converter

  • Configurable mA, mV and V inputs.
  • Configurable mAand V outputs.
  • Isolated sensor supply .(Optional)
  • Input,output and three-way isolation
    between power supply .
  • Rail mountable.
  • With socket connector connection.
  • CE marked according to European Norms



Uniwersalny przetwornik sygnału ECSC


ORDER CODE

ECSC-XX
XX: UV – 90-250VAC
LV – 7-24VAC/9-30VDC



Parametry techniczne



INPUT TYPE Measurement Range Selectable Min. Measurement Value Selectable Measurement Ranges
mA 0..20mA 0, 1, 2, 3, 4, 5 mA 4, 8, 10, 12, 16, 20 mA
mV 0..50mV 0, 5, 10, 15, 20, 25 mV 10, 15, 20, 30, 40, 50 mV
V1 0..10V 0, 1, 2, 3, 4, 5 V 1, 2, 3, 4, 5, 6 V
V 0..10V 0, 1, 2, 3, 4, 5 V 5, 6, 7, 8, 9, 10 V

Adjustable output:

0..20mA
4..20mA
0..10V
1..5V
