Fast diode/Fast diode connected with anodes
  • Fast diode/Fast diode connected with anodes

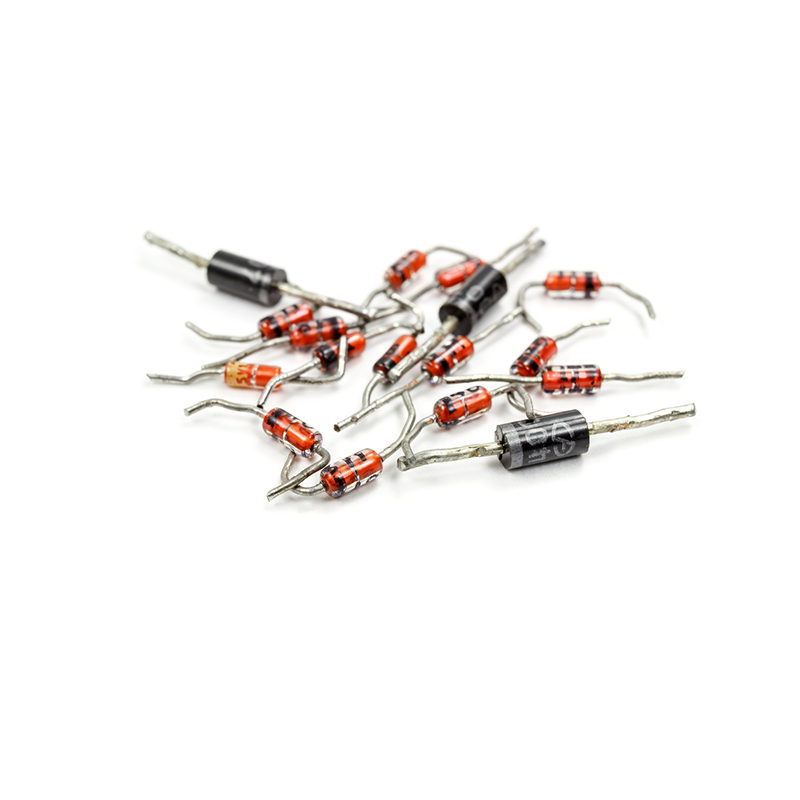

Photos are for informational purposes only. View product specification

Manufacturer: POWEREX

Fast diode/Fast diode connected with anodes

TypeIF((AV)/TC
[A/°C]
URRM/VRRM
[V]
IFSM
[A]
I2t
[A2s]
Rthjc
[°C/W]
Rthcs
[°C/W]
Casing
QRF0610T30 33/80 600 2,8/100 110 0,7 0,04 16
QRF0620T30 70/80 600 2,8/200 110 0,35 0,04 16
QRF0630T30 100/80 600 2,8/300 110 0,24 0,04 16
QRF0640T30 136/80 600 2,8/400 110 0,18 0,04 16
QRF1210T30 53/80 1200 3,5/100 250 0,35 0,04 16
QRF1220T30 99/80 1200 3,5/200 250 0,18 0,04 16
QRF1230T30 149/80 1200 3,5/300 250 0,12 0,04 16
QRF1415T30 59/80 1400 3,8/150 300 0,24 0,04 16
QRF1420T30 85/80 1400 3,8/200 300 0,18 0,04 16
QRF1430T30 123/80 1400 3,8/300 300 0,12 0,04 16


Drawing 16 dimensions [mm]
