Fast diodes
  • Fast diodes

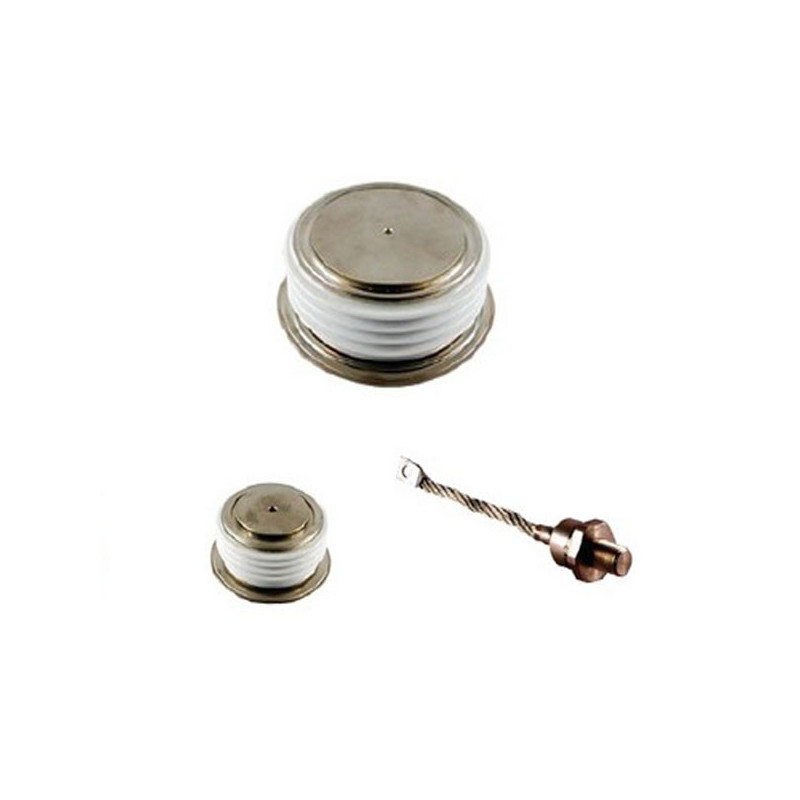

Photos are for informational purposes only. View product specification

Manufacturer: KUBARA LAMINA S.A.

Fast diodes

Type IF(AV)/TC [A/°C] URRM [V] IFSM [A] I2t [A2s] trr [μs] Rthjc [°C/W] Torque Force Casing Drawing number
R22-10(R) 10/100 100-1200 150 112 0,63-1 1,7 1,2-1,5 Nm 1
R32-25(R) 25/80 100-1200 500 1250 1-1,6 0,8 2-2,5 Nm 2
R32-32(R) 32/70
R52-100(R) 100/75 600-1600 2200 24000 1-2 0,25 14-17 Nm 3
R61-200(R) 200/65 1600-2000 3500 61000 3 0,17 28-32 Nm 5
R63-300 300/65 800-2000 3500 61000 1-3 0,095 4,5-6,5 kN 9
R73-470 470/95 2000-2600 6500 210000 4 0,06 7-11 kN 10
R75-600 600/80 800-1600 7000 245000 2-3 0,04 9-11 kN 11
R83-350 350/70 3000-4000 6000 180000 5 0,037 12-14 kN 10
R83-600 600/80 1600-2400 10000 500000 4 0,037 12-14 kN
R95-900 900/70 2200-3600 14000 980000 4-5 0,023 22,5-25kN 12
R95-1100 1100/65 1600-2400 17300 1500000 5 0,023 22,5-25kN
