Fast thyristors
  • Fast thyristors

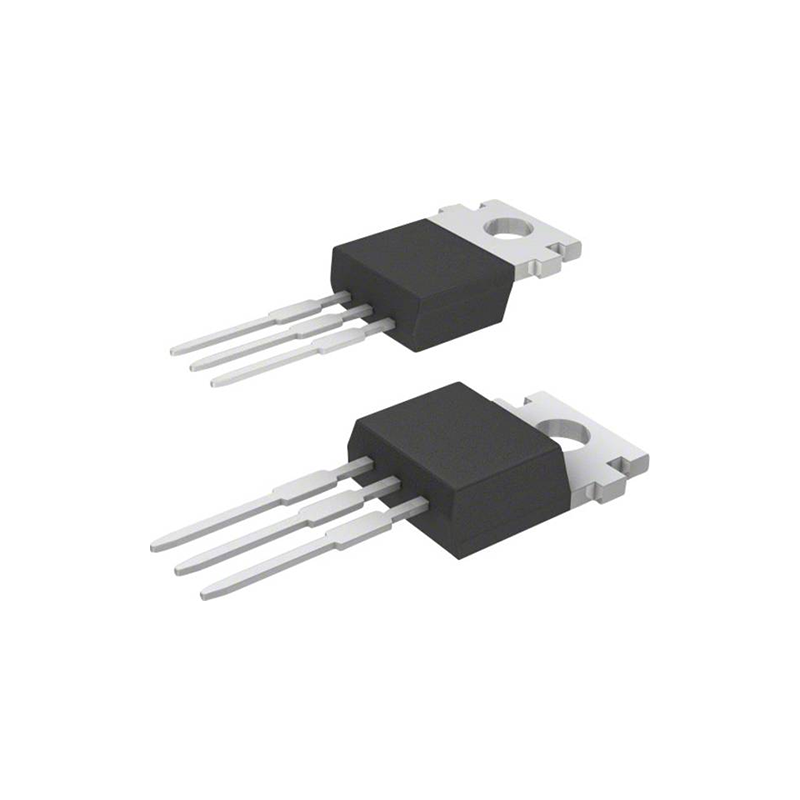

Photos are for informational purposes only. View product specification

Manufacturer: ESTEL

Fast thyristors

FAST THYRISTORS - ESTEL


TypeIT(AV)/TC
[A/°C]
UDRM,URRM
[V]
ITSM
[kA]
(di/dt)pc
[A/µs]
tq(typ)
[µs]
du/dt
[V/µs]
IGT
[mA]
Rthjc
[°C/W]

Casing

drawing

FT7-320 320/91 1200-2200 6,3 800 20; 25; 32 500; 1000 300 0,04 1
FT75-320 320/91 1200-2200 6,3 800 20; 25; 32 500; 1000 300 0,04 2
FT7-400 400/85 300-1000 7 1000 8; 10; 12,5; 16 500; 1000 300 0.04 1
FT75-400 400/85 300-1000 7 1000 8; 10; 12,5; 16 500; 1000 300 0,04 2
FT7A-400 400/93 800-1500 8 1250 6,3; 8; 10 500; 1000 300 0,032 1
FT7A-500 500/92 300-1000 9 1250 5; 6,3 500; 1000 300 0,032 1
FT8-400 400/85 1200-2200 8 1250 20; 25; 32 500; 1000 300 0,032 1
FT8-500 500/85 800-1500 9 1250 16; 20; 25 500; 1000 300 0,032 1
FT8-630 630/82 800-1500 10 1250 16; 20; 25 500; 1000 300 0,032 1
FT9-800 800/85 800-1400 19 1000 8; 10; 12,5 500; 1000 300 0,022 3
FT9S-1000 1000/80 800-1400 20 1000 10; 12,5; 500; 1000 300 0,022 3
FT9-1000 1000/80 800-1500 20 1250 16; 20; 25 500; 1000 300 0,021 3
FT9-1250 1250/70 800-1500 21 1250 20; 25; 32 500; 1000 300 0,021 3
FT9A-800 800/84 1200-2200 17 1250 25; 32; 40 500; 1000 300 0,021 3
FT9A-1000 1000/75 1200-2200 18 1250 32; 40 500; 1000 300 0,021 3
FT9B-800 800/81 2200-3400 16 1250 63; 80; 100 500; 1000 300 0,021 3
FT11-2000 2000/85 800-1400 40 1250 16; 20; 25 500; 1000 350 0,011 4
FT12-2000 2000/85 800-1400 40 1250 16; 20; 20 500; 1000 350 0,011 5
FT11A-2000 2000/80 1200-2200 40 1000 32; 40; 50 500; 1000 350 0,011 4
FT12A-2000 2000/80 1200-2000 40 1000 32; 40; 50 500; 1000 350 0,011 5
FT11C-1600 1600/80 3400-4400 27 800 125; 160; 200 500; 1000 400 0,015 4
FT71-250 250/90 300-1100 7 800 12,5; 16; 20 500; 1000 300 0,075 7
FT71A-200 200/85 1200-2200 6 800 20; 25; 32 500; 1000 300 0,09 7
FT74-250 250/92 600-1200 7 800 16; 20; 25 500; 1000 300 0,075 8
