Fast thyristors
  • Fast thyristors

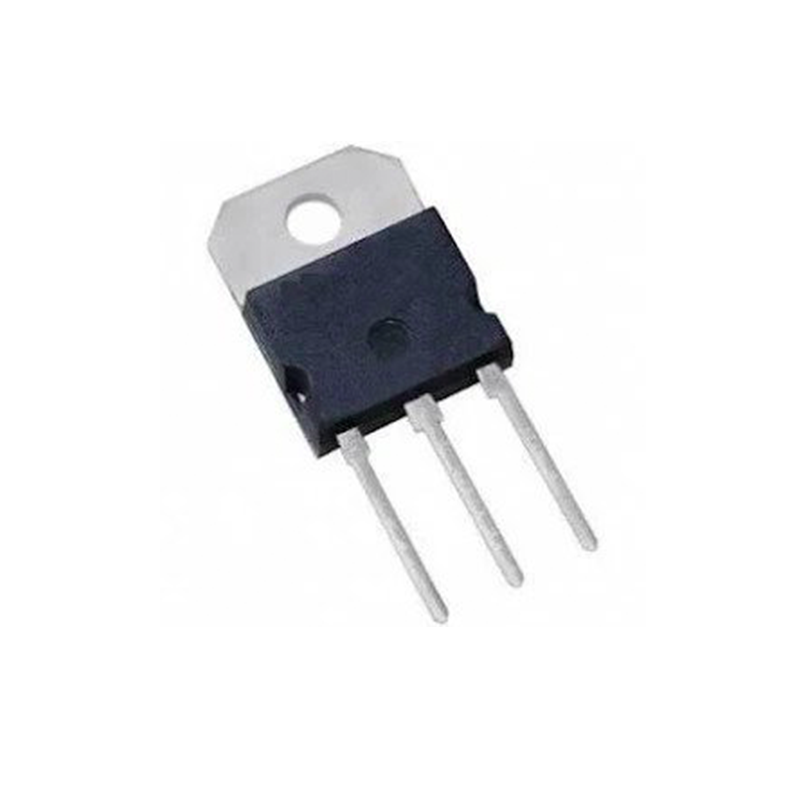

Photos are for informational purposes only. View product specification

Manufacturer: Vishay

Fast thyristors

Thyristor typeIT(AV)/TC
[A/°C]
UDRM
[V]
ITSM
[A]
I2t
[A2s]
IGT
[mA]
tq
[µs]
duD/dt
[V/µs]
Rthjc
[°C/W]
Rthcs
[°C/W]
Screw torque
Nm [kN]
Casing
ST 083S... 85/85 400-1200 2450 30000 200 10-20 500 0,195 0,08 15,5 TO-209AC (TO-94)
ST 103S... 105 /85 400-800 3000 45000 200 10-15 500 0,195 0,08 15,5
ST 173S... 175 /85 1000-1200 4680 110000 200 18-20 500 0,105 0,04 24,5 TO-209AB (TO-93)
ST 183S... 195 /85 400-800 4900 120000 200 10-15 500 0,105 0,04 24,5
ST 203S... 205 /85 1000-1200 5260 138000 200 25 500 0,105 0,04 24,5
ST 223S... 220 /85 400-800 5850 171000 200 10-15 500 0,105 0,04 24,5
ST 303S... 300 /65 400-1200 7950 316000 200 10-25 500 0,1 0,03 48,5 TO-209AE (TO-118)
ST 333S... 330 /75 400-800 11000 605000 200 12-15 500 0,1 0,03 48,5
ST 173C..C.. 330 /55 1000-1200 4680 110000 200 18-20 500 0,08 0,017 4,9 TO-200AB (A-Puk)
ST 183C..C.. 370 /55 400-800 4900 120000 200 10-15 500 0,08 0,017 4,9
ST 203C..C.. 370 /55 1000-1200 5260 138000 200 25 500 0,08 0,017 4,9
ST 223C..C.. 390 /55 400-800 5850 171000 200 10-15 500 0,08 0,017 5,9
ST 303C..C.. 620 /55 400-1200 7950 316000 200 10-25 500 0,04 0,01 9,8 TO-200AB (E-Puk)
ST 333C..C.. 720 /55 400-800 11000 605000 200 12-15 500 0,04 0,01 9,8
ST 303C..L.. 515 /55 400-1200 7950 316000 200 10-25 500 0,05 0,005 9,8 TO-200AC (B-Puk)
ST 333C..L.. 620 /55 400-800 11000 605000 200 12-15 500 0,05 0,005 9,8
ST 733C..L.. 940 /55 400-800 20000 2000000 200 12-15 500 0,031 0,005 14,7 TO-200AC (B-Puk)

Code N M L P K J
tq 10 12 15 18 20 25

Drawing TO-209AB(TO-93) Drawing TO-209AB(TO-94) Drawing TO-209AB(TO-118)
TYRYSTORY SZYBKIE - IR TO-209AB(TO-93) TYRYSTORY SZYBKIE - IR TO-209AB(TO-94) TYRYSTORY SZYBKIE - IR TO-209AB(T0-118)
Casing - TO-65 Casing - TO-200AB (A-Puk)
TYRYSTORY SZYBKIE - IR TO-65 TYRYSTORY SZYBKIE - IR YO-200AB
Casing - TO-200AB (E-Puk) Casing - TO-200AC (B-Puk)
TYRYSTORY SZYBKIE - IR TO-200aB TYRYSTORY SZYBKIE - IR TO-200AC
Casing - A-24 (K-Puk) Casing - A-36 (R-Puk)
TYRYSTORY SZYBKIE - IR A-24 TYRYSTORY SZYBKIE - IR A-36
