Fast thyristors
  • Fast thyristors

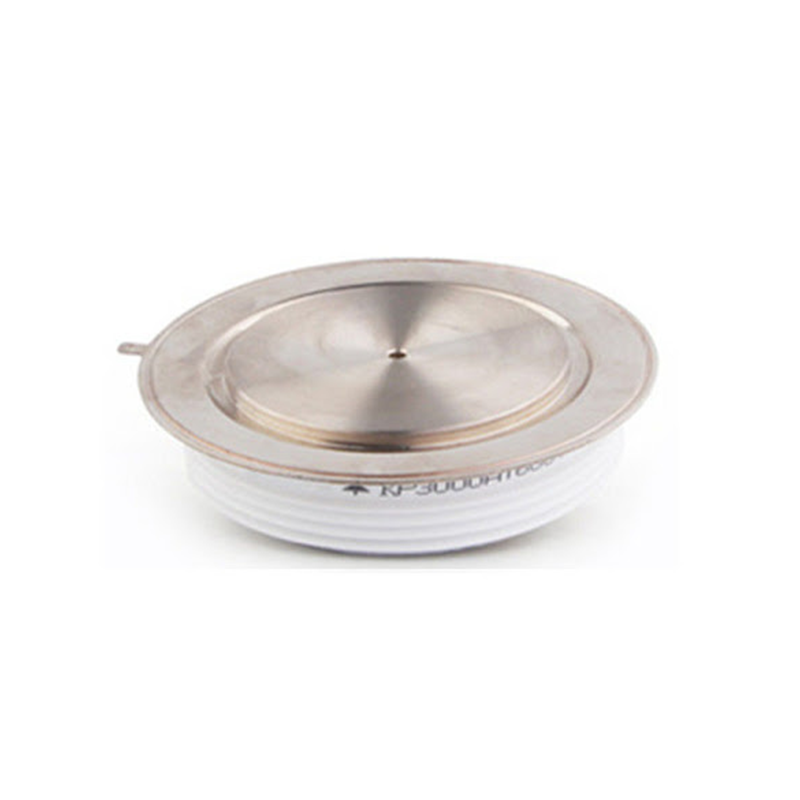

Photos are for informational purposes only. View product specification

Manufacturer: POWEREX

Fast thyristors

Thyristor TypeIT(AV)/TC
[A/°C]
UDRM URRM
[V]
ITSM
[A]
I2t
[A2s]
di/dt
[A/ us]
Tq
[µs]
duD/dt [V/µs]Rthjc
[°C/W]
Tj(max)
[°C]
Casing
1200 V
T727--35MDN 350 / 70 100 - 1200 10500 551250 800 15 - 60 300 0,06 125 4
T72H--35MDN 350 / 70 100 - 1200 10500 551250 1200 10 - 50 300 0,06 125 4
T727--40MDN 400 / 70 100 - 800 10500 551250 800 10 - 50 300 0,06 125 4
T72H--40MDN 400 / 70 100 - 800 10500 551250 1200 10 - 20 300 0,06 125 4
T7SH--40MDN 400 / 70 100 - 1200 12000 720000 1200 10 - 50 300 0,045 125 3
T727--48MDN 475 / 70 100 - 800 12000 720000 800 15 - 50 300 0,06 125 4
T72H--48MDN 475 / 70 100 - 800 12000 720000 1200 20 - 40 300 0,06 125 4
T7S7--50MDN 500 / 70 100 - 1200 12000 720000 800 15 - 60 300 0,035 125 2
T7SH--50MDN 500 / 70 100 - 800 12750 812813 1200 10 - 20 300 0,045 125 3
T7S7--55MDN 550 / 70 100 - 800 12750 812813 800 10 - 50 300 0,035 125 2
T7SH--60MDN 600 / 70 100 - 800 13500 911250 1200 20 - 40 300 0,045 125 3
T7S7--65MDN 650 / 70 100 - 800 14250 1,0 x 106 800 10 - 50 300 0,035 125 2
1600 V
T627--15MDN 150 / 70 100 - 1600 5250 137813 800 10 - 50 300 0,08 125 1
T627--20MDN 200 / 70 100 - 1600 6000 180000 800 10 - 50 300 0,08 125 1
T627--25MDN 250 / 70 100 - 1600 6750 227813 800 10 - 50 300 0,08 125 1
T727--45MDN 450 / 70 100 - 1600 12000 720000 800 15 - 60 300 0,06 125 4
T72H--45MDN 450 / 70 100 - 1600 11250 632813 1200 15 - 50 300 0,06 125 4
T7SH--45MDN 450 / 70 100 - 1600 12750 812813 1200 15 - 50 300 0,045 125 3
T7S7--60MDN 600 / 70 100 - 1600 13500 911250 800 15 - 60 300 0,035 125 2
T82F--65*3DN 650 / 70 100 - 1400 12750 812813 1000 10 - 50 400 0,037 125 4
T82F--75*3DN 750 / 70 100 - 1400 15000 1,1 x 106 1200 25 - 60 400 0,037 125 4
T9GH--08*2DH 800 / 70 100 - 1600 15000 1,1 x 106 1000 20 - 100 400 0,023 125 6
T9GH--09*2DH 900 / 70 100 - 1600 19500 1,9 x 106 1000 20 - 100 400 0,023 125 6
T9GH--10*2DH 1000 / 70 100 - 1600 22500 2,5 x 106 1000 20 - 60 400 0,023 125 6
T9GH--11*2DH 1100 / 70 100 - 1600 25500 3,2 x 106 1000 40 - 60 100 0,023 125 6
2000V
T7SH--36MDN 360 / 70 1400 - 1800 9000 405000 800 40 - 60 300 0,045 125 3
T72H--42MDN 420 / 70 100 - 1800 10200 520200 1200 15 - 100 300 0,06 125 4
T7SH--46MDN 460 / 70 100 - 1800 10200 520200 800 15 - 70 300 0,045 125 3
T9KT--10J2DE 1000 / 70 100 - 2000 30000 4,5 x 106 800 55 500 0,023 125 6
TBKT--3022DH 2100 / 70 100 - 2000 57000 16,2 x 106 800 80 500 0,012 125 9


POWEREX THYRISTOR CASINGS
Drawing 1 dimensions [mm]
Drawing 2 dimensions [mm]
Drawing 3 dimensions [mm]
Drawing 4 dimensions [mm]
Drawing 5 dimensions [mm]
Drawing 6 dimensions[mm]
Drawing 7dimensions [mm]
Drawing 8 dimensions [mm]
Drawing 9 dimensions [mm]
Drawing 10 dimensions [mm]
Drawing 11 dimensions [mm]
Drawing 12 dimensions [mm]
Drawing 13  dimensions [mm]

Drawing 14 dimensions [mm]
