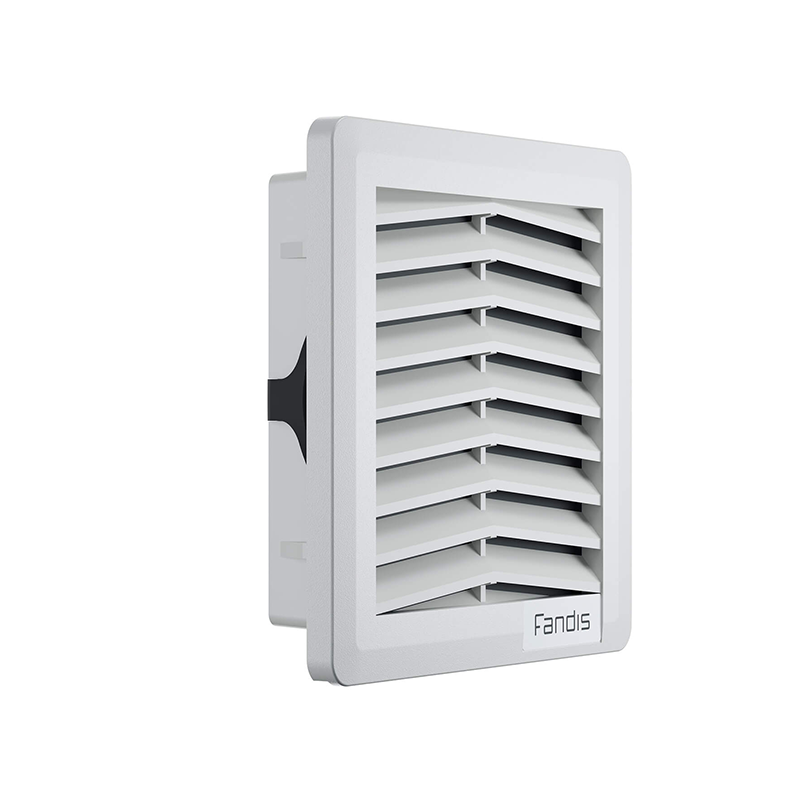

FF series exhaust filters
  • FF series exhaust filters

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: FANDIS

FF series-outlet filters with a degree of chronicle IP54 Indoor

  • Free-tool clip mounting system
  • Plate thickness: FF08 from 1 to 2mm; FF12, FF13 from 1.3 to 3.2mm; FF15, FF20 from 1.3 to 3.7mm (up to 4mm with cut-out max tolerance)
  • Standard color RAL 7035, other colors available on request, subject to quantity
  • Standard protection ratings: IP54 and Type 12. Optional versions: IP55, Type 1, 3R and EMC
ModelDimensions HxWxDCut-OutWeightApprovals
 mmmmKg
FF08U 107x107x23 91.5X91.5 0.10 CE; cURus; cCSAus; cULus;
FF12U 150x150x29 124X124 0.20 CE; cURus; cCSAus; cULus;
FF13U 204x204x30 177X177 0.36 CE; cURus; cCSAus; cULus;
FF15U 250x250x34 223X223 0.57 CE; cURus; cCSAus; cULus;
FF20U 325x325x34 291X291 0.98 CE; cURus; cCSAus; cULus;
