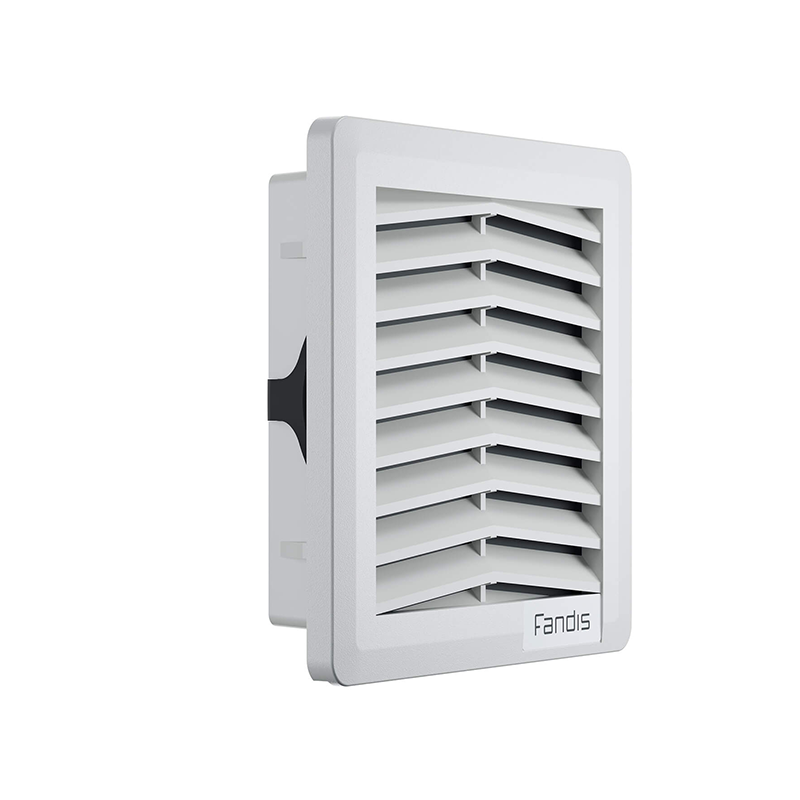

FF series exhaust filters
  • FF series exhaust filters

Photos are for informational purposes only. View product specification

Manufacturer: FANDIS

FF series exhaust filters

FF series exhaust filters

  • Free-tool clip mounting system
  • Plate thickness: FF08 from 1 to 2mm; FF12, FF13 from 1.3 to 3.2mm; FF15, FF20 from 1.3 to 3.7mm (up to 4mm with cut-out max tolerance)
  • Standard color RAL 7035, other colors available on request, subject to quantity
  • Standard protection ratings: IP54 and Type 12. Optional versions: IP55, Type 1, 3R and EMC
ModelDimensions HxWxDCut-OutWeightApprovals
 mmmmKg
FF08U107x107x2391.5X91.50.10CE; cURus; cCSAus; cULus;
FF12U150x150x29124X1240.20CE; cURus; cCSAus; cULus;
FF13U204x204x30177X1770.36CE; cURus; cCSAus; cULus;
FF15U250x250x34223X2230.57CE; cURus; cCSAus; cULus;
FF20U325x325x34291X2910.98CE; cURus; cCSAus; cULus;
