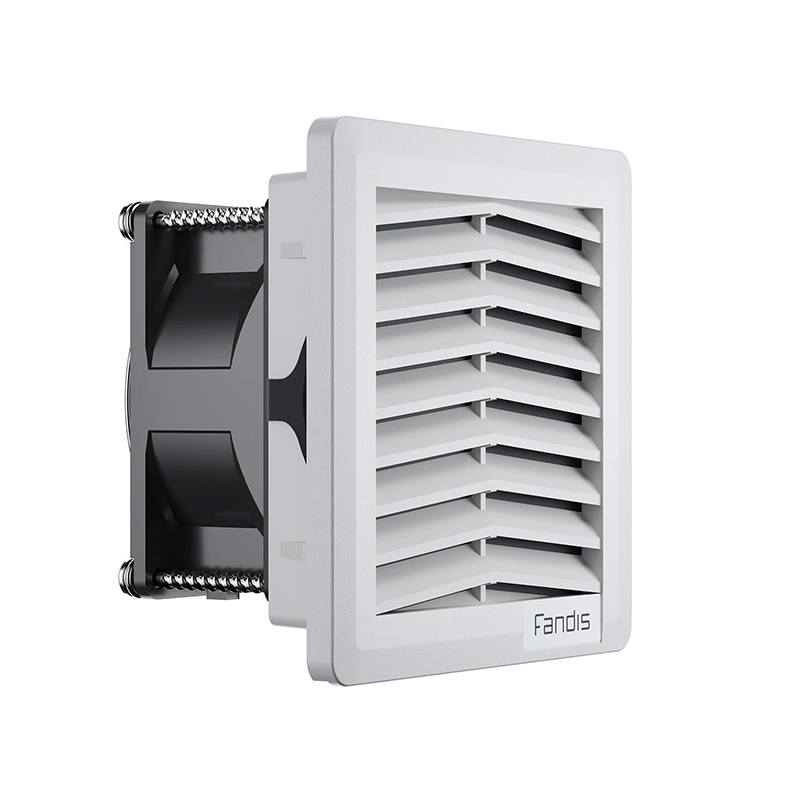

FF series filter fans
  • FF series filter fans

Photos are for informational purposes only. View product specification

Manufacturer: FANDIS

FF series filter fans

FF series filter fans

  • Free-tool clip mounting system
  • Plate thickness: FF08 from 1 to 2mm; FF12, FF13 from 1.3 to 3.2mm; FF15, FF20 from 1.3 to 3.7mm (up to 4mm with cut-out max tolerance)
  • Quick electrical connection by screwless terminal block
  • Standard color RAL 7035, other colors available on request, subject to quantity
  • Standard protection ratings: IP54 and Type 12. Optional versions: IP55, Type 1, 3R and EMC
  • Reverse airflow version (-R) see page 5
  • Frequency: 50/60 Hz
ModelDimensions HxWxDCut-OutRated VoltageRated power (50/60Hz)Max air flow (50/60Hz)Static Pressure (50/60Hz)Approvals
FF08A115UN107x107x6791.5X91.5115 V a.c.9.0/7.012/1523/33CE; cURus; cCSAus; cULus;
FF08A115UNR107x107x6791.5X91.5115 V a.c.9.0/7.516/2145/64CE; cURus; cCSAus; cULus;
FF08A230UF107x107x6791.5X91.5230 V a.c.14/1110/1316/25CE;
FF08A230UN107x107x6791.5X91.5230 V a.c.10/8.012/1523/33CE; cURus; cCSAus; cULus;
FF08A230UNR107x107x6791.5X91.5230 V a.c.10/8.016/2145/64CE; cURus; cCSAus; cULus;
FF08D12UN107x107x5491.5X91.512 V d.c.2.01628CE; cURus; cCSAus; cULus;
FF08D12UNR107x107x5491.5X91.512 V d.c.2.22344CE; cURus; cCSAus; cULus;
FF08D24UN107x107x5491.5X91.524 V d.c.2.01628CE; cURus; cCSAus; cULus;
FF08D24UNR107x107x5491.5X91.524 V d.c.2.22344CE; cURus; cCSAus; cULus;
FF08D48UF107x107x6191.5X91.548 V d.c.3.01219CE;
FF08GA115UF107x107x8092.5x92.5115 V a.c.12/1021/2640/55CE; cURus; cCSAus; cULus;
FF08GA115UNR107x107x6492.5x92.5115 V a.c.12/9.016/2040/60CE; cURus; cCSAus; cULus;
FF08GA230UF107x107x8092.5x92.5230 V a.c.12/1121/2640/55CE; cURus; cCSAus; cULus;
FF08GA230UNR107x107x6492.5x92.5230 V a.c.12/1016/2040/60CE; cURus; cCSAus; cULus;
FF08GD24UN107x107x7792.5x92.524 V d.c.1550160CE; cURus; cCSAus; cULus;
FF08GD24UNR107x107x7792.5x92.524 V d.c.1760200CE; cURus; cCSAus; cULus;
FF08GD48UF107x107x7792.5x92.548 V d.c.1748144CE;
FF12A115UF150x150x73124X124115 V a.c.16/1545/5055/62CE; cURus; cCSAus; cULus;
FF12A115UFR150x150x73124X124115 V a.c.16/1547/5272/82CE; cURus; cCSAus; cULus;
FF12A115UN150x150x73124X124115 V a.c.19/1767/7973/86CE; cURus; cCSAus; cULus;
FF12A115UNR150x150x73124X124115 V a.c.19/1760/7086/115CE; cURus; cCSAus; cULus;
FF12A230UF150x150x73124X124230 V a.c.18/1745/5055/62CE; cURus; cCSAus; cULus;
FF12A230UFR150x150x73124X124230 V a.c.18/1747/5272/82CE; cURus; cCSAus; cULus;
FF12A230UN150x150x73124X124230 V a.c.18/1667/7973/86CE; cURus; cCSAus; cULus;
FF12A230UNR150x150x73124X124230 V a.c.18/1660/7086/115CE; cURus; cCSAus; cULus;
FF12A24UF150x150x73124X12424 V a.c.15/1539/4443/41CE;
FF12A24UFR150x150x73124X12424 V a.c.15/1550/5259/40CE;
FF12D24UN150x150x73124X12424 V d.c.7.44756CE; UR; cCSAus; cULus;
FF12D24UN4150x150x73124X12424 V d.c.23107164CE;
FF12D24UNR150x150x73124X12424 V d.c.7.46479CE; UR; cCSAus; cULus;
FF12D48UN150x150x73124X12448 V d.c.8.64756CE; UR; cCSAus; cULus;
FF12D48UNR150x150x73124X12448 V d.c.8.66479CE; UR; cCSAus; cULus;
FF13PA115UF204x204x96177X177115 V a.c.19/18100/11055/60CE; cURus; cCSAus; cULus;
FF13PA115UFR204x204x96177X177115 V a.c.18/18100/11070/80CE; cURus; cCSAus; cULus;
FF13PA115UN204x204x96177X177115 V a.c.16/15110/13080/100CE; cURus; cCSAus; cULus;
FF13PA115UNR204x204x96177X177115 V a.c.20/18110/135100/120CE; cURus; cCSAus; cULus;
FF13PA230UF204x204x96177X177230 V a.c.18/18100/11055/60CE; cURus; cCSAus; cULus;
FF13PA230UFR204x204x96177X177230 V a.c.18/18100/11070/80CE; cURus; cCSAus; cULus;
FF13PA230UN204x204x96177X177230 V a.c.19/17110/13080/100CE; cURus; cCSAus; cULus;
FF13PA230UNR204x204x96177X177230 V a.c.19/18110/135100/120CE; cURus; cCSAus; cULus;
FF13PD24UN204x204x96177X17724 V d.c.8.210060CE; UR; cCSAus; cULus;
FF13PD24UNR204x204x96177X17724 V d.c.8.511383CE; UR; cCSAus; cULus;
FF15A115UF250x250x124223X223115 V a.c.31/31230/270115/155CE; cURus; cCSAus; cULus;
FF15A115UFR250x250x124223X223115 V a.c.31/31245/290165/210CE; cURus; cCSAus; cULus;
FF15A115UN2250x250x112223X223115 V a.c.39/41230/270150/195CE; cURus; cCSAus; cULus;
FF15A115UNR2250x250x112223X223115 V a.c.39/41238/283195/252CE; cURus; cCSAus; cULus;
FF15A230UF250x250x124223X223230 V a.c.32/36230/270115/155CE; cURus; cCSAus; cULus;
FF15A230UFR250x250x124223X223230 V a.c.32/36245/290165/210CE; cURus; cCSAus; cULus;
FF15A230UN2250x250x112223X223230 V a.c.42/45230/272150/195CE; cURus; cCSAus; cULus;
FF15A230UNR2250x250x112223X223230 V a.c.42/45238/283195/252CE; cURus; cCSAus; cULus;
FF15D24UF250x250x125223X22324 V d.c.31275150CE; cURus; cCSAus; cULus;
FF15D24UFR250x250x125223X22324 V d.c.31295205CE; cURus; cCSAus; cULus;
FF15D24UN250x250x125223X22324 V d.c.17245100CE; UR; cCSAus; cULus;
FF15D24UNR250x250x125223X22324 V d.c.17285148CE; UR; cCSAus; cULus;
FF15D48UF250x250x125223X22348 V d.c.43295175CE;
FF15D48UFR250x250x125223X22348 V d.c.43310250CE;
FF15MA115UF250x250x111223X223115 V a.c.16/15130/14563/39CE;
FF15MA115UFR250x250x111223X223115 V a.c.16/15140/15580/55CE;
FF15MA230UF250x250x111223X223230 V a.c.21/20130/14563/39CE;
FF15MA230UFR250x250x111223X223230 V a.c.21/20140/15580/55CE;
FF15PA115UF250x250x112223X223115 V a.c.17/16105/12054/57CE; cURus; cCSAus; cULus;
FF15PA115UFR250x250x112223X223115 V a.c.17/16110/12066/70CE; cURus; cCSAus; cULus;
FF15PA115UN250x250x112223X223115 V a.c.20/19125/14580/100CE; cURus; cCSAus; cULus;
FF15PA115UNR250x250x112223X223115 V a.c.20/19130/150100/120CE; cURus; cCSAus; cULus;
FF15PA230UF250x250x112223X223230 V a.c.18/17105/12054/57CE; cURus; cCSAus; cULus;
FF15PA230UFR250x250x112223X223230 V a.c.18/17110/12066/70CE; cURus; cCSAus; cULus;
FF15PA230UN250x250x112223X223230 V a.c.19/17125/14580/100CE; cURus; cCSAus; cULus;
FF15PA230UNR250x250x112223X223230 V a.c.19/18130/150100/120CE; cURus; cCSAus; cULus;
FF15PD24UN250x250x112223X22324 V d.c.7.614062CE; UR; cCSAus; cULus;
FF15PD24UNR250x250x112223X22324 V d.c.7.615084CE; UR; cCSAus; cULus;
FF15PD48UN250x250x112223X22348 V d.c.8.614062CE; UR; cCSAus; cULus;
FF15PD48UNR250x250x112223X22348 V d.c.8.615084CE; UR; cCSAus; cULus;
FF20A115UE325x325x160291X291115 V a.c.77/92445/490131/141CE;
FF20A115UE1325x325x160291X291115 V a.c.74/83445/485129/140CE; cURus; cCSAus; cULus;
FF20A115UER325x325x160291X291115 V a.c.77/92530/577206/216CE;
FF20A115UER1325x325x160291X291115 V a.c.74/83530/575195/207CE; cURus; cCSAus; cULus;
FF20A230UE325x325x160291X291230 V a.c.79/96460/510136/148CE;
FF20A230UE1325x325x160291X291230 V a.c.70/85455/503134/146CE; cURus; cCSAus; cULus;
FF20A230UER325x325x160291X291230 V a.c.79/96540/595204/219CE;
FF20A230UER1325x325x160291X291230 V a.c.70/85540/590207/221CE; cURus; cCSAus; cULus;
FF20A400TUE325x325x160291X291400 V 3 ~99/124537/632186/236CE;
FF20GA115UE325x325x159291X291115 V a.c.143/177708/775188/181CE;
FF20GA115UE1325x325x159291X291115 V a.c.110/156675/738183/170CE; cURus; cCSAus; cULus;
FF20GA115UEA325x325x159291X291115 V a.c.146/179875/960200/189CE;
FF20GA115UEA1325x325x159291X291115 V a.c.110/156893/960200/176CE; cURus; cCSAus; cULus;
FF20GA115UER325x325x159291X291115 V a.c.124/192760/845282/258CE;
FF20GA115UER1325x325x159291X291115 V a.c.102/145760/850280/254CE; cURus; cCSAus; cULus;
FF20GA115UERA325x325x159291X291115 V a.c.124/124820/920279/255CE;
FF20GA115UERA1325x325x159291X291115 V a.c.102/145820/925279/251CE; cURus; cCSAus; cULus;
FF20GA230UE325x325x159291X291230 V a.c.155/194705/790200/206CE;
FF20GA230UE1325x325x159291X291230 V a.c.120/158680/765200/210CE; cURus; cCSAus; cULus;
FF20GA230UEA325x325x159291X291230 V a.c.158/198850/960213/216CE;
FF20GA230UEA1325x325x159291X291230 V a.c.120/158895/998220/222CE; cURus; cCSAus; cULus;
FF20GA230UER325x325x159291X291230 V a.c.170/208773/870306/291CE;
FF20GA230UER1325x325x159291X291230 V a.c.120/157760/860308/304CE; cURus; cCSAus; cULus;
FF20GA230UERA325x325x159291X291230 V a.c.171/210840/958302/289CE;
FF20GA230UERA1325x325x159291X291230 V a.c.120/157825/930305/295CE; cURus; cCSAus; cULus;
FF20GEA400TUE325x325x149291X291400 V 3 ~137485180CE;
FF20GEA400TUER325x325x149291X291400 V 3 ~137/173645/695240/255CE;
FF20PA115UF325x325x164291X291115 V a.c.45/45310/350107/111CE; cURus; cULus;
FF20PA115UFR325x325x164291X291115 V a.c.45/45339/374141/135CE; cURus; cULus;
FF20PA230UF325x325x164291X291230 V a.c.45/45315/345106/108CE; cURus; cULus;
FF20PA230UFR325x325x164291X291230 V a.c.45/45334/367135/125CE; cURus; cULus;
