Filtry i zestawy filtracyjno-wentylacyjne do szaf serii FPF

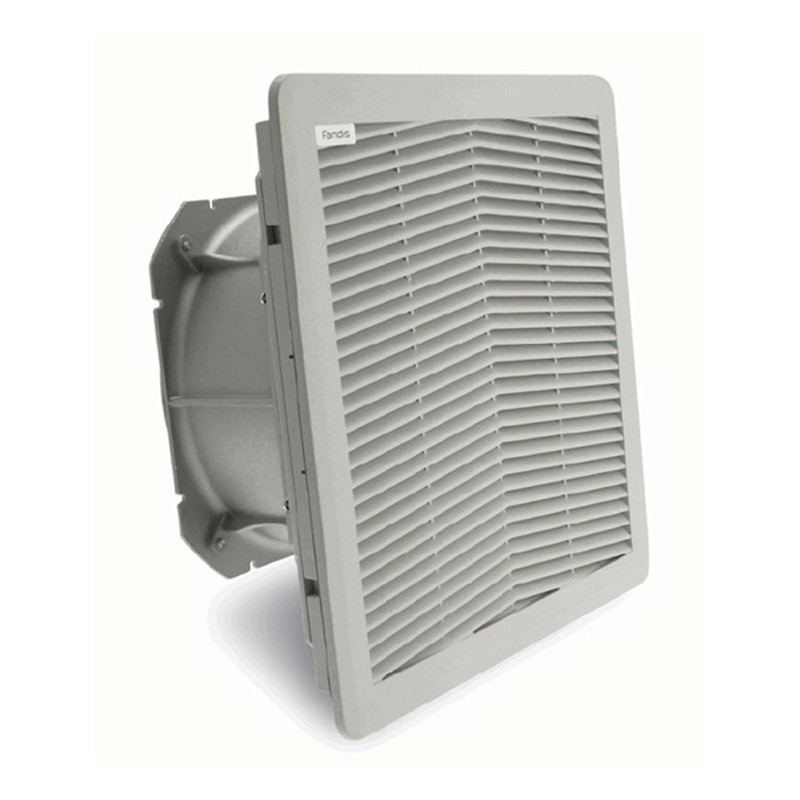

Filters and filtration and ventilation sets of FPF series for cabinets

The FPF series provides a wide selection of filter sizes with fans and exhaust filters available options are type 3P, IP55 and EMC.

TypeExternal frame dimension [mm].Hole dimension
[mm]
Supply voltage
[V]
Frequency
[Hz]
Rated power
[W]
Air flow
[m3/h]**
Working temperature range
[ºC]
Certificates

FPF08K 115B(R)-110

105x105 91,5x91,5 115 Va.c. 50/60  07-wrz 23/30  -10 ~ +50 CE cURus

FPF08K 230B(R)-110

105x105 91,5x91,5 230 Va.c. 50/60  08-paź 23/30  -10 ~ +50 CE cURus

FPF08K D24B(R)-110

105x105 91,5x91,5 24 Vd.c. 3.6 28 -10 ~ +50 CE cURus

FPF12K G-100

150x150 125x125 -10 ~ +60 CE cURus

FPF12K  24BE(R)-110

150x150 125x125 24 Va.c. 50/60 15/16 57/61 -10 ~ +50 CE

FPF12K 115BE(R)-110

150x150 125x125 115 Va.c. 50/60  20/18  57/61  -10 ~ +50 CE cURus

FPF12K 230BE(R)-110

150x150 125x125 230 Va.c. 50/60  20/19  57/61  -10 ~ +50 CE cURus

FPF12K D24B(R)-110

150x150 125x125 24 Vd.c. 9.6 60 -10 ~ +50 CE cURus

FPF12K D48B(R)-110

150x150 125x125 48 Vd.c. 7.7 60 -10 ~ +55 CE

FPF13K G-100

204x204 177x177 -10 ~ +60 CE cURus

FPF13KP 115BE(R)-110

204x204 177x177 115 Va.c. 50/60  20/18  110/120  -10 ~ +50 CE cURus

FPF13KP 230BE(R)-110

204x204 177x177 230 Va.c. 50/60  20/19  110/120  -10 ~ +50 CE cURus

FPF13KP D24B(R)-110

204x204 177x177 24 Vd.c. 9.6 120 -10 ~ +50 CE cURus

FPF13K 115BE(R)-110

204x204 177x177 115 Va.c. 50/60  17/15  120/135  -10 ~ +50 CE cURus

FPF13K 230BE(R)-110

204x204 177x177 230 Va.c. 50/60  17/15  120/135  -10 ~ +50 CE cURus

FPF15K G-100

250x250 223x223 -10 ~ +60 CE cURus

FPF15KP 115BE(R)-110

250x250 223x223 115 Va.c. 50/60  20/18  115/125  -10 ~ +50 CE cURus

FPF15KP 230BE(R)-110

250x250 223x223 230 Va.c. 50/60  20/19  115/125  -10 ~ +50 CE cURus

FPF15KP  D12B(R)-110

250x250 223x223 12 Vd.c. - 6.6 29-kwi -10 ~ +50 CE

FPF15KP D24B(R)-110

250x250 223x223 24 Vd.c. 9.6 145 -10 ~ +50 CE cURus

FPF15KP  D48B(R)-110

250x250 223x223 48 Vd.c. - 7.7 145 -10 ~ +55 CE

FPF15KM 115BE(R)-110

250x250 223x223 115 Va.c. 50/60  17/15  130/150  -10 ~ +50 CE cURus

FPF15KM 230BE(R)-110

250x250 223x223 230 Va.c. 50/60  17/15  130/150  -10 ~ +50 CE cURus

FPF15K 115BE(R)-110

250x250 223x223 115 Va.c. 50/60  30/30  240/270  -10 ~ +50 CE cURus

FPF15K 230BE(R)-110

250x250 223x223 230 Va.c. 50/60  29/29  240/270  -10 ~ +50 CE cURus

FPF15K D24B(R)-110

250x250 223x223 24 Vd.c. 22.8 250 -10 ~ +50 CE cURus

FPF15K  D48B(R)-110

250x250 223x223 48 Vd.c. - 17.8 250 -10 ~ +55 CE

FPF15KG  115BE(R)-120

250x250 223x223 115 Va.c. 50/60 50/64 360/400 -10 ~ +55 CE

FPF15KG  230BE(R)-120

250x250 223x223 230 Va.c. 50/60 67/87 360/400 -10 ~ +50 CE

FPF15KG  400TBE(R)-120

250x250 223x223 400 3~ 50/60 71/93 360/400 -10 ~ +55 CE

FPF15KG  D24BE(R)-120

250x250 223x223 24 Vd.c. - 59 470 -10 ~ +55 CE

FPF15KG D48BE(R)-120

250x250 223x223 48 Vd.c. 59 470 -10 ~ +55 CE

FPF20K G-100

325x325 291x291 -10 ~ +60 CE cURus

FPF20K  115BE(R)-120

325x325 291x291 115 Va.c. 50/60 50/64 520/580 -10 ~ +55 CE

FPF20K  230BE(R)-120

325x325 291x291 230 Va.c. 50/60 67/87 520/580 -10 ~ +50 CE

FPF20K  400TBE(R)-120

325x325 291x291 400 3~ 50/60 71/93 520/580 -10 ~ +55 CE

FPF20K  D24BE(R)-120

325x325 291x291 24 Vd.c. - 59 610 -10 ~ +55 CE

FPF20K  D48BE(R)-120

325x325 291x291 48 Vd.c. - 59 610 -10 ~ +55 CE

FPF20KG  115BE(R)-120

325x325 291x291 115 Va.c. 50/60 107/143 660/745 -10 ~ +55 CE

FPF20KG  230BE(R)-120

325x325 291x291 230 Va.c. 50/60 114/158 660/745 -10 ~ +55 CE

FPF20KG  400TBE(R)-120

325x325 291x291 400 3~ 50/60 105/105 650/730 -10 ~ +55 CE

FPF20KG  115B(R)-110

325x325 291x291 115 Va.c. 50/60 120/135 650/730 -10 ~ +55 CE

FPF20KG  230B(R)-110

325x325 291x291 230 Va.c. 50/60 140/185 650/730 -10 ~ +55 CE

FPF20KG  400TB(R)-110

325x325 291x291 400 3~ 50/60 93/123 650/730 -10 ~ +55 CE
