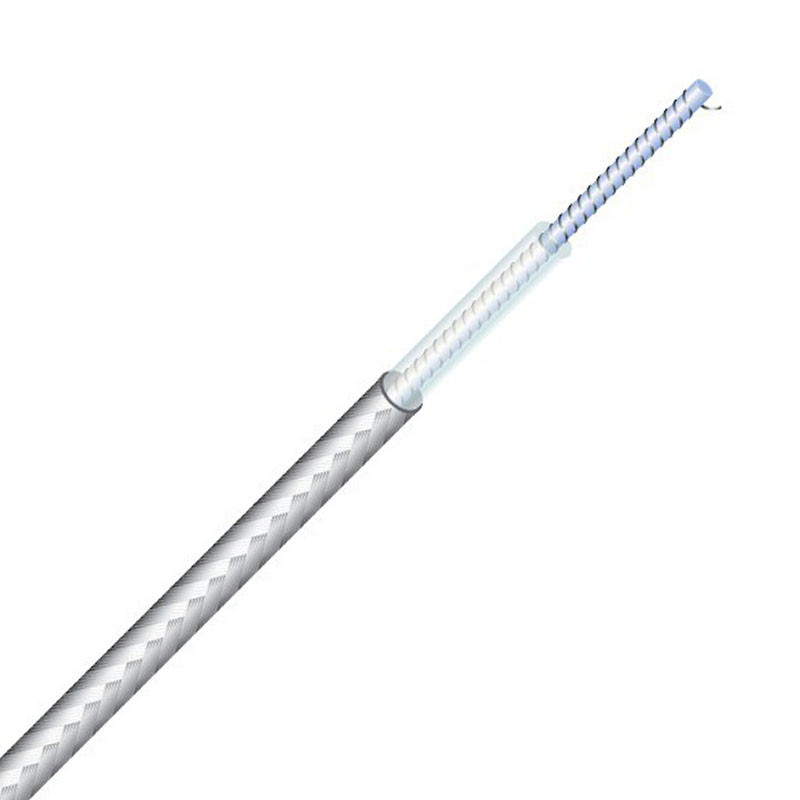

Fluoropolymer Insulated Heating Cord, C1F - C1F/T - C1F/I
  • Fluoropolymer Insulated Heating Cord, C1F - C1F/T - C1F/I

Photos are for informational purposes only. View product specification

Manufacturer: ATE

Fluoropolymer Insulated Heating Cord, C1F - C1F/T - C1F/I

Fluoropolymer Insulated Heating Cord, C1F - C1F/T - C1F/I

Aplications

C1F, C1F/T and C1F/I heating cords are mainly used in corrosive environments, or in machines requiring protection against freezing or temperature maintenance. To ensure that these heating cables elements enjoy a long service life, we recommend using a control device


Characterictics
  • UL Recognized cord on request.
  • C1F: fluoropolymer insulated cord.
  • C1F/T: fluoropolymer insulated cord with tinned copper braid for mechanical protection and earthing.
  • C1F/I: fluoropolymer insulated cord with stainless steel braid for mechanical protection and earthing.

PRODUCTSINSULATION CLASS
C1FCLASS 0 (single insualated)
CLASS III (if low voltage)
C1F/T – C1F/ICLASS I (earthing)

 C1PC1P/T - C1P/
SupportFibre glass
Ø 0.7 or Ø 1.1 mm
Heating wirenickel-copper or nickel-chrome
InsultaionFluoropolymer
Diameter1.7 to 2.1 mm2.0 to 2.4 mm
Max. ohmic value5000 Ω/m
Max. power30 W/m
Max. voltage600 V
Permissible surface temperaturefrom - 70°C to + 200°C
TolerancesResistance ± 10 %
Diameter + 0.2 /- 0.1 mm
