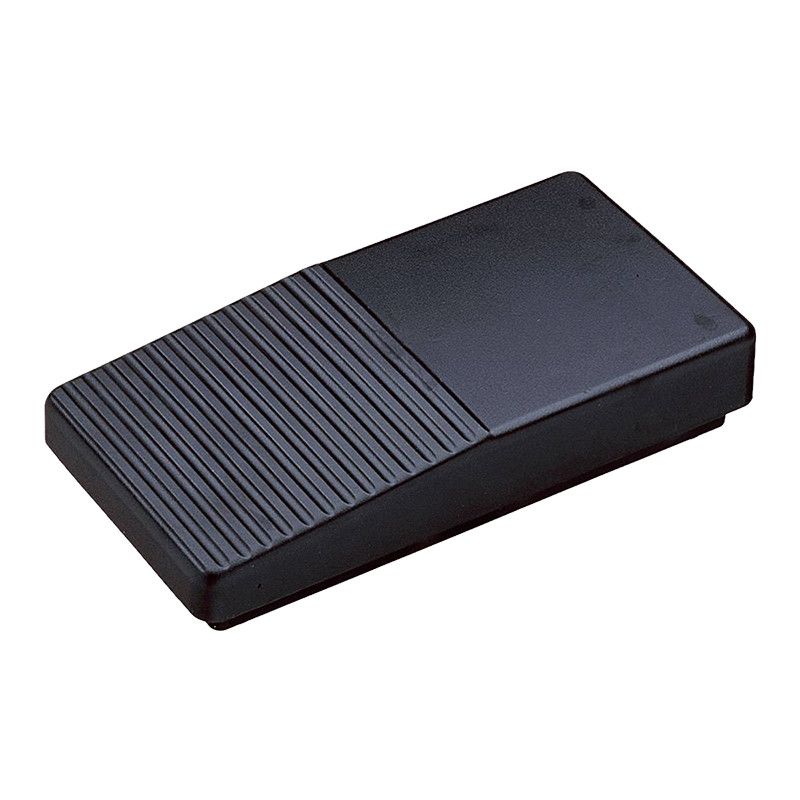

Foot switches 2(2,5)A/250V~
  • Foot switches 2(2,5)A/250V~

Photos are for informational purposes only. View product specification

Manufacturer: Marquardt

Foot switches 2(2,5)A/250V~

switches
Foot switches
Foot switches  2(2,5)A/250V~

Product properties:
• Long endurance and very good operation characteristic.
• Rubber washers for foot slipping  protection

Technical data:
Material PA
mechanical endurance: 3x105 cykli
Leakage current resistant: PTI 250
Flamability: UL94V-2
Contact material: Ag
Quality sign:
Good for devices protection class II


Catalogue numberFunctionContact disconnection widthApplication as a mains switch
Foot switch with clamp slat and grip on casing.
2410,0301 1-pole. NO contact < 3mm not possible
2410,0401 1-pole. NO + NC contact < 3 mm not possible
Foot switch with three wire cable, plug and protection clamp. Length: from the mains side: 3m, from the device side: 25cm.
2410,1001 2-pole.NO contact > 3 mm Possible
248.008.013 protection cap, orange, from steel sheet.
