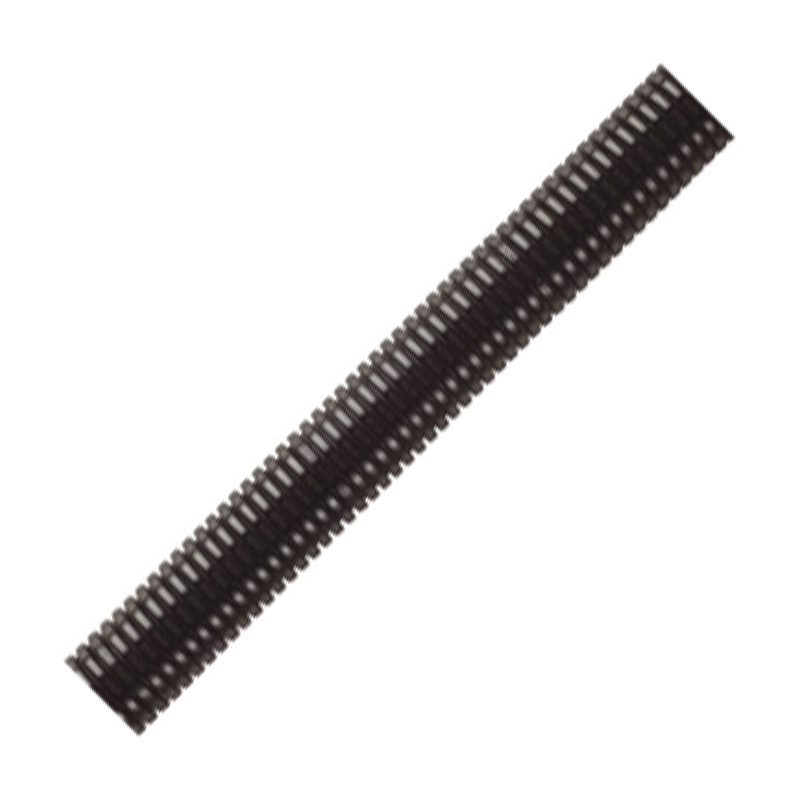

FPI - Non-Metallic Conduits – Standard weight nylon (highly flame retardant PA12) corrugated flexible conduit
  • FPI - Non-Metallic Conduits – Standard weight nylon (highly flame retardant PA12) corrugated flexible conduit

Photos are for informational purposes only. View product specification

Manufacturer: FLEXICON

FPI - Non-Metallic Conduits – Standard weight nylon (highly flame retardant PA12) corrugated flexible conduit

FPI - Non-Metallic Conduits – Standard weight nylon (highly flame retardant PA12) corrugated flexible conduit

Peszel FPI – standardowy elastyczny karbowany peszel z nylonu (PA12)

Properties:
Material Nylon PA12 (Highly flame retardant)
Colour: black
Fire Performance Highly flame retardant, halogen, sulphur and phosphorous free
Temperature Performance: -50OC +110OC
IP Rating:
IP66 with FPA fittings
IP66+67+68+69K with FPAX fittings
Compression Strength: 45kg/100mm
Pull-off (Tensile) strength 30kg FPA [&] FPAX fittings
UV resistant

Typical Applications

Peszel FPI – standardowy elastyczny karbowany peszel z nylonu (PA12) zastosowanie maszyny Machinery and OE

Compliance, Approvals [&] Accreditation;
Peszel FPI – standardowy elastyczny karbowany peszel z nylonu (PA12) certyfikat
EN 61386 Classification Available on request

File No. E229161

Vibration and Shock resistant to EN 61373 Cat 2


Nominal SizePitch
F= fine
C= coarse
Part NoReel Length
[m]
OD
[mm]
Min ID
[mm]
Min inside Bend
radius R
[mm]
Compression
Strength
kg/100mm
Weight
[g/m]
13 F

FPI13B

50 13.0 9.8 25 50 26
16 F

FPI16B

50 15.8 11.8 30 45 35
21 F

FPI21B

50 21.2 16.7 35 45 55
28 C

FPI28B

50 28.5 21.7 45 70 92
34 C

FPI34B

25 34.5 28.1 55 70 120
42 C

FPI42B

25 42.5 35.5 60 70 160
54 C

FPI54B

25 54.5 47.2 70 50 220
67 C

FPI67B

10 67.2 56.3 120 50
