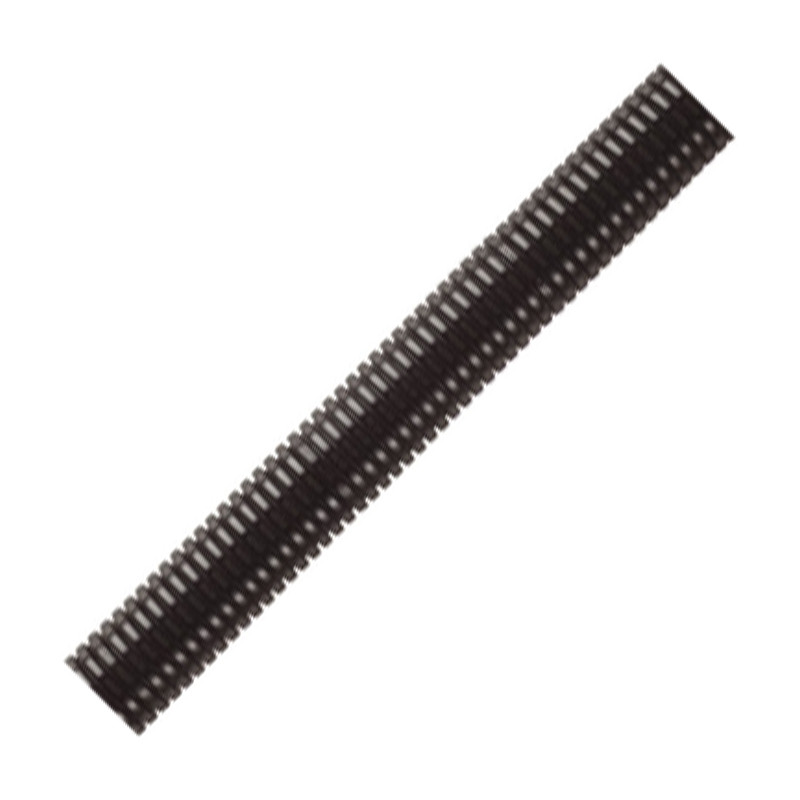

FPR - Non-Metallic Conduits – Standard weight nylon (highly flame retardant PA6) corrugated flexible conduit
  • FPR - Non-Metallic Conduits – Standard weight nylon (highly flame retardant PA6) corrugated flexible conduit

Photos are for informational purposes only. View product specification

Manufacturer: FLEXICON

FPR - Non-Metallic Conduits – Standard weight nylon (highly flame retardant PA6) corrugated flexible conduit

FPR - Non-Metallic Conduits – Standard weight nylon (highly flame retardant PA6) corrugated flexible conduit

Peszel FPR – standardowy elastyczny karbowany peszel z nylonu (PA6)

Properties:
Material; Nylon PA6 (Highly flame retardant)
Colour black
Fire Performance:  Highly flame retardant, halogen, sulphur and phosphorous free
Temperature Performance:
Static: -40OC +120OC
Dynamic -20OC +100OC
IP Rating:
IP66 with FPA fittings
IP66+67+68+69K with FPAX fittings
Compression Strength: 75kg/100mm
Pull-off (Tensile) strength : 40kg FPA [&] FPAX fittings
25kg FLK fittings
UV resistant

Typical Applications;

Peszel FPR – standardowy elastyczny karbowany peszel z nylonu (PA6) zastosowanie wojsko Defence Peszel FPR – standardowy elastyczny karbowany peszel z nylonu (PA6) zastosowanie konstukcje Construction
Peszel FPR – standardowy elastyczny karbowany peszel z nylonu (PA6) kolejnictow Rail

Compliance, Approvals [&] Accreditation;
Peszel FPR – standardowy elastyczny karbowany peszel z nylonu (PA6) certyfikaty
EN 61386 Classification Available on request

File No. E229161
Compliant to LUL Standard 1-085-A3
London Underground Certificate No. 298


Nominal SizePitch
F= fine
C= coarse
Part NoReel Length
[m]
OD
[mm]
Min ID
[mm]
Min inside Bend
radius R
[mm]
Compression
Strength
kg/100mm
Weight
[g/m]
10 F

FPR10B

50 10.0 6.3 15 100 19
13 F

FPR13B

50 13.0 9.8 25 75 28
16 F

FPR16B

50 15.8 11.8 35 60 38
20 C

FPR20B

50 20.0 14.8 45 75 56
21 F

FPR21B

50 21.2 16.7 45 75 60
25 C

FPR25B

50 25.0 19.1 50 90 80
28 C

FPR28B

50 28.5 21.7 50 90 100
34 C

FPR34B

50 34.5 28.1 60 90 135
42 C

FPR42B

25 42.5 35.5 70 100 165
54 C

FPR54B

25 54.5 47.2 80 100 235
67 C

FPR67B

10 67.2 56.3 130 75 365
