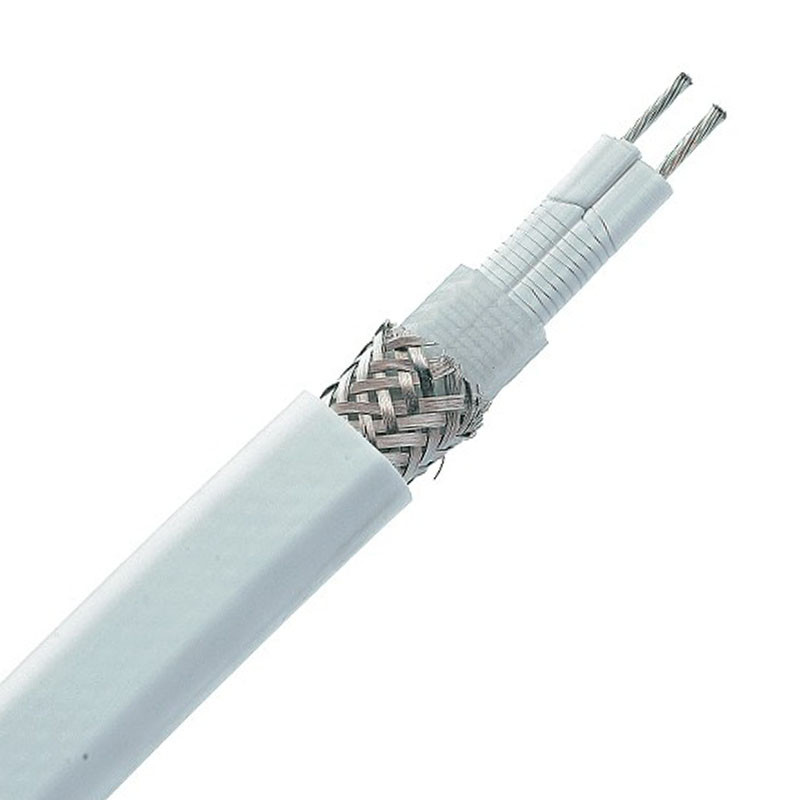

FTS3/IS High power constant power cables

FTS3/IS High power constant power cables

Applcations

FTS3/IS cables are designed for protecting railway lines, points and power rails from freezing or for keeping them clear of snow. To ensure that these heating elements enjoy a long service life, we recommend using a control device.


Characteristics
  • Welded contact points.
  • Can be cut to length on site.
  • Extremely simple termination.
  • Cold tail incorporated: no extra connection necessary.
  • Available as 100 W/m.
  • Power supply: 230 V.
  • Tinned copper braid and silicon elastomer outer sheath.


 FST3/IS
Heating wireNickel-Copper or Nickel-Chrom
Dimensions9 x 16 mm
Power100 W/m
IsolationElastomer silikonowy
Permissible surfac temperaturefrom - 70°C to + 200°C
Max. circuit length40 m
Distance between 2
consecutive contact points
0.35 m
