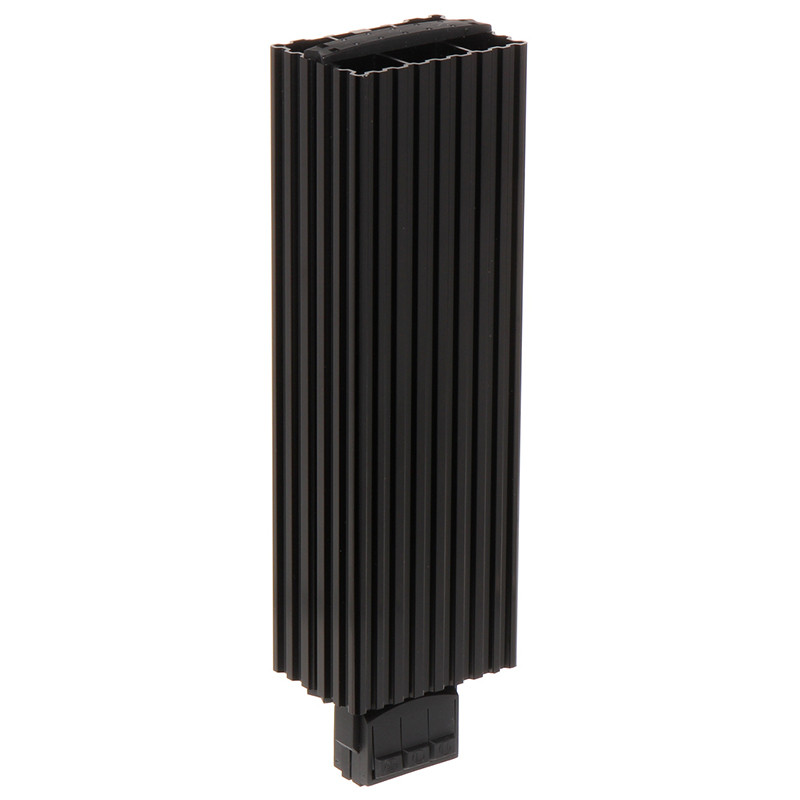

Heater - HG 140 - 15 W to 150 W series
  • Heater - HG 140 - 15 W to 150 W series

Photos are for informational purposes only. View product specification

Manufacturer: STEGO

Heater - HG 140 - 15 W to 150 W series

Heater HG 140 - 15 W to 150 W series

- Dynamic heating without electromagnetic noise.
- Wide range of power supply
- Temperature limiter and self control (PTC).
- Energy-saving and easy to maintain
- Assembled with clamp to DIN bus
- Quick assembly


Heater HG 140 - 15 W to 150 W series
Ogrzewacz Seria HG 140:15 W do 150 W

Technical data
Operating voltage  AC/DC 120 – 240 V¹ (min. 110 V, max. 265 V)
Heating element  PTC resistor – temperature limiting
Heater body  extruded aluminium profile, anodised
Connection  3 pressure clamps for stranded wire 0.5 – 1.5 mm (with wire end ferrule) and rigid wire 0.5 – 2.5 mm²
Connection casing  plastic according to UL94 V-0, black
Mounting  clip for 35 mm DIN rail, EN 60715
Fitting position  vertical airflow (air outlet up, connection on bottom)
Operating/Storage temperature  -45 to +70 °C (-49 to +158 °F)
Operating/Storage humidity  max. 90 % RH (non-condensing)
Protection type/Protection class  IP20 / I (earthed)
Approvals  VDE, UL File No. E150057, EAC
Accessoires  screw fixing, Art. No. 09024.0-00 (1 packing unit = 2 pieces)
Note  other voltages on request


Application example

Heater HG 140 - 15 W to 150 W series
Dimensions [mm]

Heater HG 140 - 15 W to 150 W series

Art. No. Heating capacity² Inrush current max. Recommended pre-fuse T (time-delay) Length (L) Weight (approx.)

14000.0-00

15 W  1.5 A  2.0 A  65 mm  0.3 kg

14001.0-00

30 W  3.0 A  4.0 A  65 mm  0.3 kg

14003.0-00

45 W  3.5 A  4.0 A  65 mm  0.3 kg

14005.0-00

60 W  2.5 A  4.0 A  140 mm  0.4 kg

14006.0-00

75 W  4.0 A  6.3 A  140 mm  0.5 kg

14007.0-00

100 W  4.5 A  8.0 A  140 mm  0.5 kg

14008.0-00

150 W  9.0 A  10.0 A  220 mm  0.7 kg
