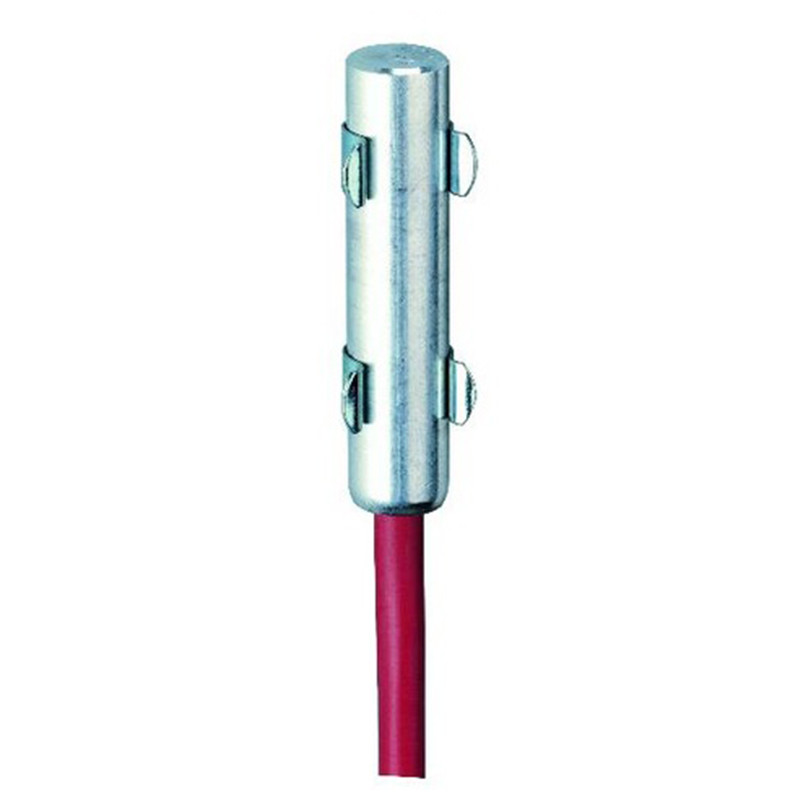

Heater RCE 016 - 5W, 9W series
  • Heater RCE 016 - 5W, 9W series

Photos are for informational purposes only. View product specification

Manufacturer: STEGO

Heater RCE 016 - 5W, 9W series

Heater RCE 016 -  5W, 9W serires


- Temperature limiter and self control (PTC).
- Wide range of power supply
- Dynamic heating without electromagnetic noise.
- Energy-saving and easy to maintain.
- Small dimensions, compact.


1 Operating with voltages below AC/DC 140 V reduces heating performance by approx. 10 %.




Technical data

Operating voltage  AC/DC 120 – 240 V¹ (min. 110 V, max. 265 V)
Heating element  PTC resistor, temperature limiting
Heater body  aluminium
Mounting  see Accessories
Fitting position  variable
Dimensions  length 45 mm, Ø 10 mm
Operating/Storage temperature  -45 to +70 °C (-49 to +158 °F)
Operating/Storage humidity  max. 90 % RH (non-condensing)
Protection type/Protection class  IP54 / II (double insulated)
Approvals  VDE, UL File No. E150057 (according to UL 508A, NITW File on request), EAC
Accessories  mounting clips (see illustration), Art. No. 09008.0-01
Note  other voltages on request




Art. No. Heating capacity² Inrush current max. Recommended pre-fuse T (time-delay) Surface temperature (approx.) Connection Weight (approx.)

01622.0-00

5 W  2.0 A  2.0 A  +165 °C  2 x AWG 22 cable (silicone)  20 g

01623.0-00

9 W  2.5 A  4.0 A  +175 °C  2 x AWG 22 cable (silicone)  20 g
