Hose-Proof Hood FFH 086 | IP56 - FPI 018, FPO 018, FF 018 series
  • Hose-Proof Hood FFH 086 | IP56 - FPI 018, FPO 018, FF 018 series

Photos are for informational purposes only. View product specification

Manufacturer: STEGO

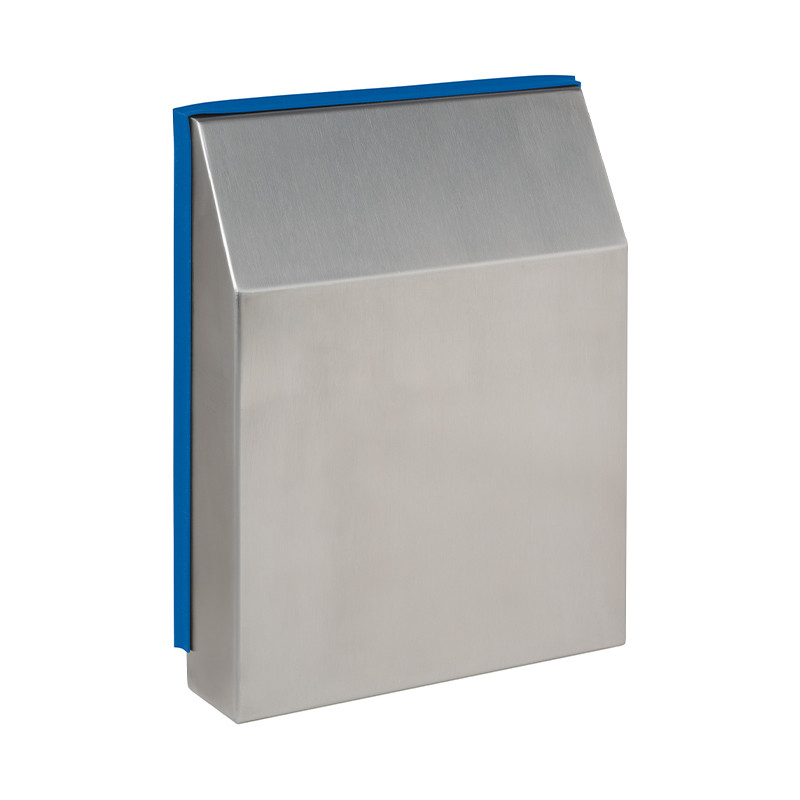

Hose-Proof Hood FFH 086 | IP56 - FPI 018, FPO 018, FF 018 series

Hose-Proof Hood FFH 086 | IP56

  • Increase of protection class
  • Easy to clean
  • Filter mat change from outside
  • Impact-resistant, robust
  • Safe against unauthorized removal
  • Weather resistant
  • Versatile
  • Protective grid

The hose-proof hood for increasing the protection class is a protective cover for filter fans, intake and exit filters, e.g. for the series FPI 018, FPO 018 and FF 018. It is used for protection against water projected by a hose and extreme climatic influences if located outdoors or in industrial applications with harsh environmental conditions. In order to clean the filter fans or to change the filter mat, the hood can easily be removed, the cabinet does not need to be opened (safety risk).

Technical data

Material hood VA, polished
Material sealing Silicone, food safe
Protection type IP561
Protection type UL/NEMA UL Type 4/4x1 / Nema Type 4/4x1
Approval UL File No. E234324, EAC

1When used with STEGO filter fans FPI/FPO 018 and FF 018 and when seal is tightly fitted.



 Art. No.Cutout usable for FF 018Cutout usable for FPI/FPO 018Dimensions L x B x HMax. covered area (X x Y)Weight (approx.)
08670.0-00 97 x 97 mm 92 x 92 mm 214 x 195 x 48 mm 143 x 130 mm 0.8 kg
08671.0-00 125 x 125 mm 124 x 124 mm 279 x 225 x 58 mm 173 x 160 mm 1.2 kg
08672.0-00 176 x 176 mm 176 x 176 mm 359 x 294 x 68 mm 235 x 218 mm 2.0 kg
08673.0-00 250 x 250 mm 223 x 223 mm 415 x 369 x 78 mm 290 x 286 mm 2.8 kg
08674.0-00 - 291 x 291 mm 485 x 409 x 103 mm 340 x 326 mm 3.7 kg
