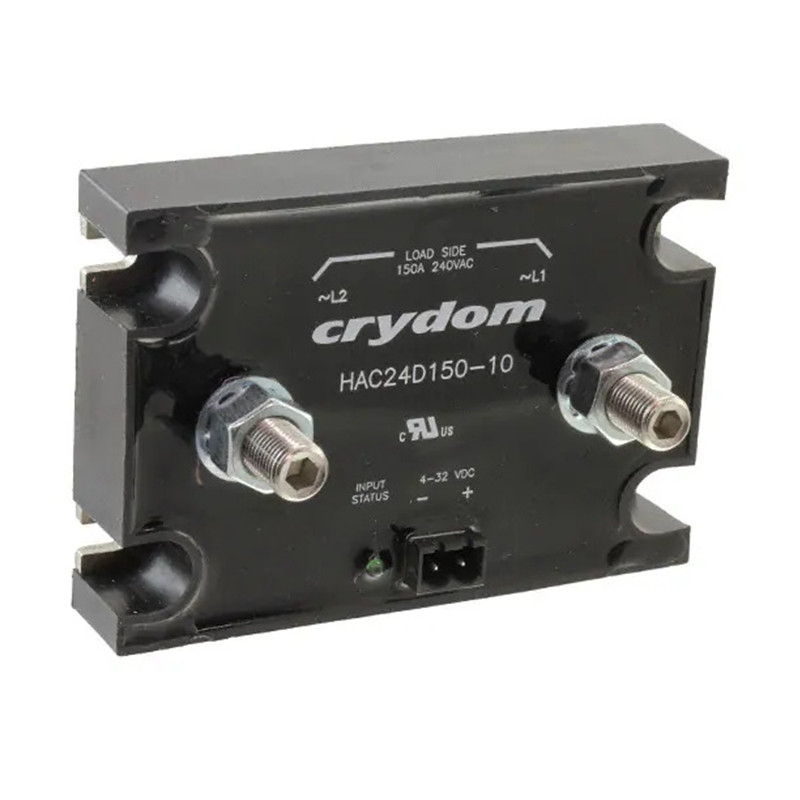

150A AC single phase relays
  • 150A AC single phase relays

Photos are for informational purposes only. View product specification

Manufacturer: Crydom

150A AC single phase relays

150A AC single phase relays

Technical data:
•  Voltage range  from 24 do 660VAC
•  Load current  to 150ARMS
•  switched  at zero or immediately
•  control  AC or DC
•  Frequency 47-63Hz
•  Operating temperature range -30oC to +80oC
Available options:
•  P - overvoltage protection
•  H - thermal pad
•  10 - turned on immediately

SymbolInput DataOutput DataI2t
[A2s]
Control voltage
[V]
Input current
[mA]
Load current
ARMS
Voltage range
VRMS
Voltage
Vpeak
Surge current
Apeak

HAC24D150

4-32VDC 15mA 150A 24-280 600 1670 13950

HAC60D150

4-32VDC 15mA 150A 48-660 1200 1670 13950

HAC24B150

90-140VAC 12mA 150A 24-280 600 1670 13590

HAC60B150

90-140VAC 12mA 150A 48-660 1200 1670 13950

HAC24A150

150-270VAC 10mA 150A 24-280 600 1670 13950

HAC60A150

150-270VAC 10mA 150A 48-660 1200 1670 13950

Schemat

Przekaźniki jednofazowe AC na prąd 150A - schemat

Wymiary [mm]

Przekaźniki jednofazowe AC na prąd 150A - wymiary

CharacteristicPrzekaźniki jednofazowe AC na prąd 150A - Charakterystyka
