969 series - non inductive high voltage power resistors
  • 969 series - non inductive high voltage power resistors

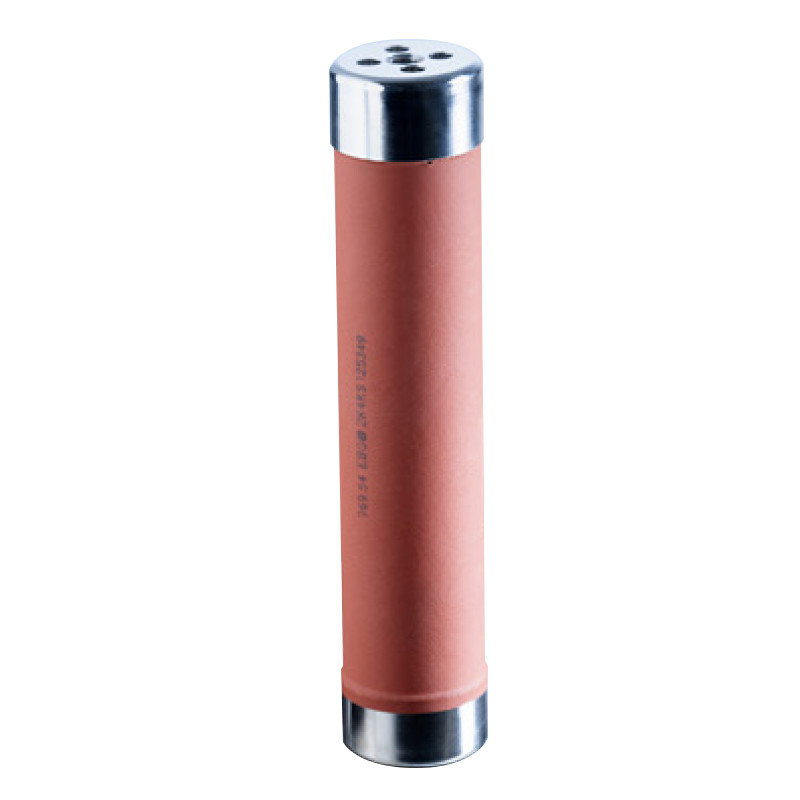

Photos are for informational purposes only. View product specification

Manufacturer: EBG

969 series - non inductive high voltage power resistors

969 SERIES – NON INDUCTIVE HIGH VOLTAGE POWER RESISTORS

Application
• Voltage dividers
• Medical equipment

Technical data
Operating temperature range
-55°C...225°C
Tolerance
0,1%...10%
Insulation resistance
>10000MΩ 500V 25°C
Dielectric withstand
>1000V 25°C ć
Overload capacity
∆R/R 0,25% max 1,5 x Pnom, 5s (doesn't exceed  1,5 x V max)
Terminals
nickel


Table. Technical data


TypeP
40°C
[W]		U
KVDC		Resistance rangeDimensions
[mm]
Tolerance
2 – 10%
TC ppm /°C
150, 200		Tolerance
0,5 – 10%
TC ppm /°C
50, 100		Tolerance
0,1 – 10%
TC ppm /°C
15,25		ØL
969.11 11 24 500 R – 5 G 500 R – 1 G 50 K – 500 M 13.5 81
969.23 23 48 700 R – 10 G 700 R – 1 G 100 K – 1 G 13.5 156
969.54 54 48 2 R – 10 G 2 R – 1 G 100 K – 1 G 30.5 160
969.71 71 64 20 R – 15 G 20 R – 1,5 G 100 K – 1,5 G 30.5 210
969.105 105 96 80 R – 25 G 80 R – 2 G 150 K – 2 G 30.5 308

Dimensions



Characteristic
TypeDimensions
[mm]
LBØDG
969.11 81 ± 1 14,5 13,5 10 M4
969.23 156 ± 2 14,5 13,5 10 M4
969.54 160 ± 2 31,8 30,5 18 M8
969.71 210 ± 2,5 31,8 30,5 18 M8
969.105 308 ± 3,5 31,8 30,5 18 M8
