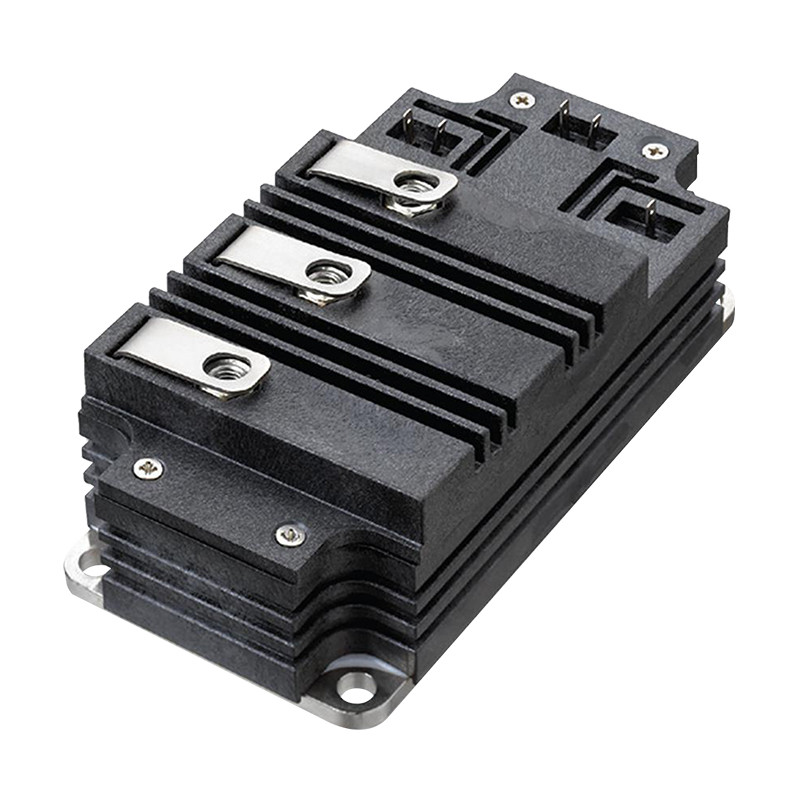

Photos are for informational purposes only. View product specification

Manufacturer: POWEREX

IGBT Modules

IGBT Modules - Powerex

Part NumberPkg. TypeBaseplatePkg. ConfigurationVCES
[KV]
IC
[A]
Visol
[KV]
3.3 KV

QID3320002

C Cu Dual IGBT 3.3 200 7.7

QID3320004**

A Cu Dual IGBT 3.3 200 6

QID3330001

C Cu Dual IGBT 3.3 300 9

QID3340001

B AlSiC Dual IGBT 3.3 400 6

QID3350001

B AlSiC Dual IGBT 3.3 500 6

QRD3310001

D Cu Dual Diode 3.3 100 6

QRC3310002

D Cu Dual Diode Common Cathode 3.3 100 6

QRD3320004**

A Cu Dual Diode 3.3 200 6
4.5 KV

QID4515001

C Cu Dual IGBT 4.5 150 9

QID4515002

C Cu Dual IGBT 4.5 150 9

QID4515004

A Cu Dual IGBT 4.5 150 6

QIF4515002

C Cu Dual IGBT Common Collector 4.5 150 9

QID4520002

C Cu Dual IGBT 4.5 200 9

QRD4518001

C Cu Dual Diode 4.5 180 10.2
6.5 KV

QIC6508001

C Cu Dual IGBT Common Emitter 6.5 85 9

QID6508001

C Cu Dual IGBT 6.5 85 10.2

QRD6516001

C Cu Dual Diode 6.5 160 10.2
*Where Cu baseplate is listed, an AlSiC baseplate can be substituted where required for demanding applications.
**UL Recognized (E78240)

NOTE
Single switch, dual, dual diode and common emitter configurations available upon request.


Package Configuration

QID3320004, QID4515004

QID3340001

QID3320004, QID4515004 QID3340001

QID3350001

QID3320002, QID3330001,
QID4515001, QID4515002,
QID4520002, QID6508001

QID3350001 QID3320002, QID3330001,
QID4515001, QID4515002,
QID4520002, QID6508001

QIF4515002

QIC6508001

QIF4515002 QIC6508001

QRD3310001,
QRD3320004

QRC3310002

QRD3310001,
QRD3320004 QRC3310002

QRD4518001,
QRD6516001

QRD4518001,
QRD6516001
