ILS... /Qx 250°C
  • ILS... /Qx 250°C

Photos are for informational purposes only. View product specification

Manufacturer: Quintex

ILS... /Qx 250°C

Electrical heating tape for frost protection or temperature maintenance of instrument lines, pipework or vessels in safe or hazardous area environments

Przewody grzejne w wykonaniu EX seri ILS… (NF) 250oC
  • Automatically adjusts heat output in response to heated surface temperature.
  • Can be cut-to-length with minimal wastage.
  • Suitable for high process temperature maintenance applications up to +225°C.
  • Full range of terminations, controls, accessories and approvals available.
  • Will not overheat, even when overlapped.
  • Available for 220=277V AC. (110V=120V AC upon request)

Description

Quintherm ILS is a super high temperature industrial/commercial grade self-regulating heating tape that can be used for super high process temperature of pipework or vessels in the pharmaceutical [&] chemical or construction industries up to 250°C (switched off) likely to be subject to steam cleaning. It can be cut-to-length on site to match exact pipe lengths without any complicated design considerations.

ILS is approved for use in non-hazardous, hazardous or corrosive environments to world-wide standards.

Its self-regulating characteristics improve safety and reliability. ILS will not overheat or burnout, even if overlapped upon itself. Its power output is automatically self-regulated in response to pipe or heating surface temperature. This ensures safety and reliability.

Installation of ILS is quick and easy, requiring no special tools or skills. Terminations, in-line splicing and power connection components are all available in convenient kits.



Available Options

ILS../Qx Base heating tape without any braiding or outerjacket (for non-Ex applications only) (available upon special request)

ILS..N/Qx Base heating tape with nickel-plated copper braid providing mechanical protection or where traced equipment does not provide an effective earth path, e.g. plastic or non-metallic pipework or surfaces. (available upon special request)

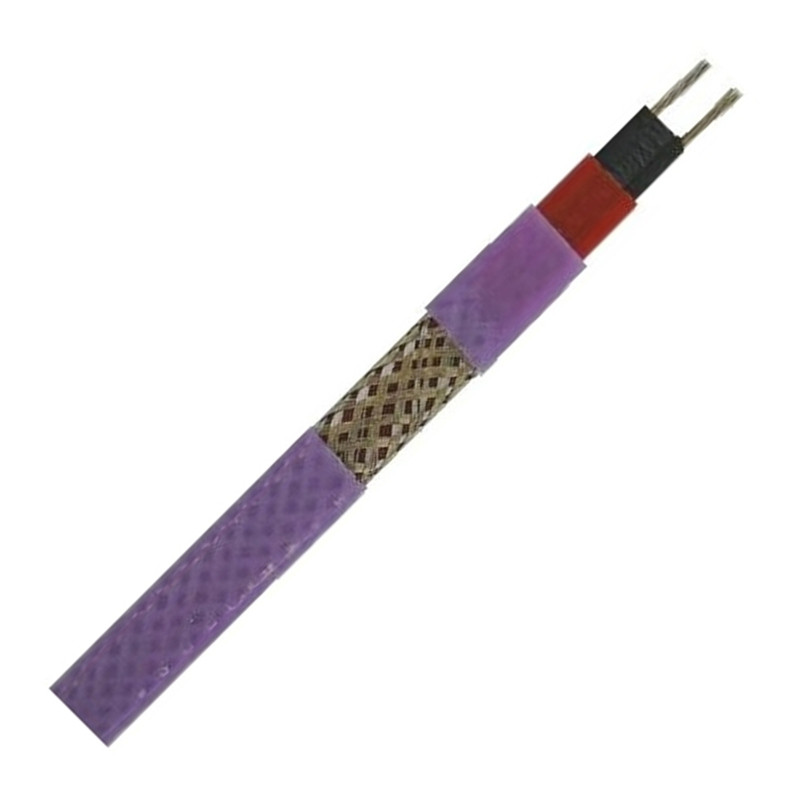

ILS..NF/Qx Base heating tape with nickel-plated copper braid and
fluoropolymer outerjacket for added mechanical and aggressive
chemical protection.



Technical Data

Max. Allowed Exposure Temperature:
Power ON:
Power OFF:

220°C
250°C
Min. Installation Temperature: -40OC
Min. Operating Temperature: -65OC
Power Supply: 220-277V AC
Temperature Class: T3 = up to [&] incl. ILS60.. T2 = ILS75= and ILSw100=
Max. Resistance of Protective Braiding: ≤18,2 Ω/km

TypeDimensions Nominal (mm)Weight kg/100 mMin. Bending Radius (mm)Gland Size
ILS.. 10,2 x 3,5 7,6 20 M20
ILS..N 11,2 x 4,5 11,3 30 M20
ILS..NF 12,1 x 5,4 14,6 35 M20
ILSw.. 12,5 x 3,7 11,4 25 M25
ILSw..N 13,5 x 4,7 15,8 30 M25
ILSw..NF 14,4 x 5,6 19,5 35 M25

Nominal Power Output at 230V when ILS is installed on thermally insulated carbon steel pipes.



Approvals - Here to Download

Max. Cct Length (m) vs. MCB Size (A)

TypeStart-up
Temp.
10A16A20A25A
ILS152.. 10°C 76 122 154 154
0°C 70 112 140 146
-20°C 62 98 122 138
-40°C 52 82 102 126
ILS302.. 10°C 52 82 102 108
0°C 46 74 92 104
-20°C 40 66 82 98
-40C 30 50 62 88
ILS452... 10°C 38 62 76 88
0°C 32 52 66 84
-20°C 24 38 46 76
-40°C 14 24 28 46
ILS602.. 10°C 24 38 46 76
0°C 18 30 36 58
-20°C 12 20 26 42
-40°C 8 12 16 24
ILS752.. 10°C 14 24 24 46
0°C 12 18 18 36
-20°C 8 12 12 24
-40°C 4 8 8 14
ILS902.. 10°C 20 20 23 38
0°C 15 15 18 30
-20°C 10 10 13 20
-40°C 6 6 2 11
ILSw1202.. 10°C 22 22 28 46
0°C 18 18 24 36
-20°C 14 14 16 26
-40°C 10 10 12 20


Accessories
A full range of accessories are available to compliment our heating tapes, such as terminations, end seals, junction boxes and thermostats. Most items carry separate approvals where required for use in hazardous areas.
