Increment encoder with a shaft - SCA50 series
  • Increment encoder with a shaft - SCA50 series

Photos are for informational purposes only. View product specification

Manufacturer: Scancon

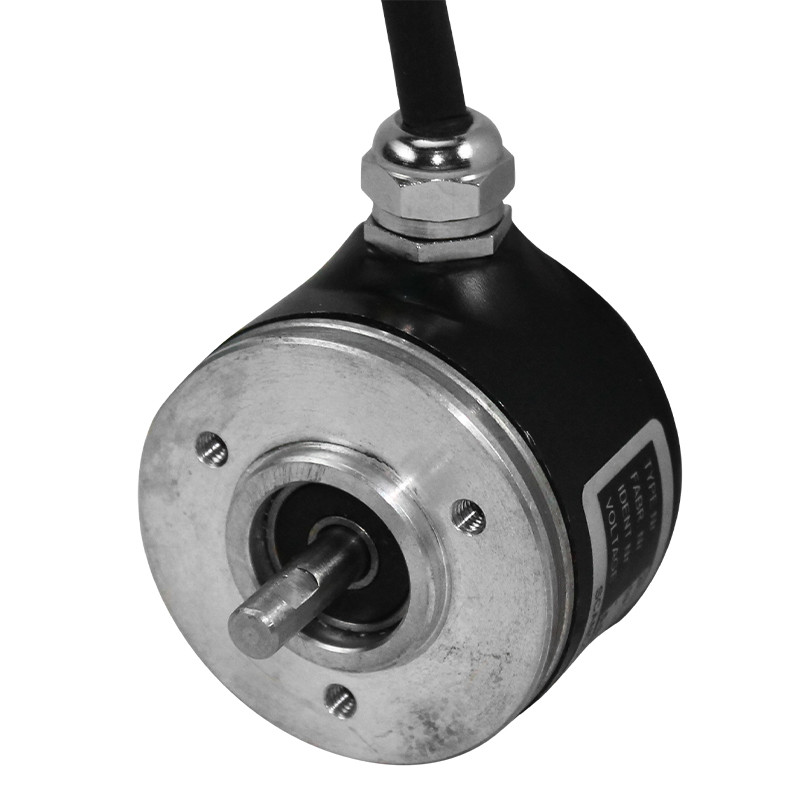

Increment encoder with a shaft - SCA50 series

Increment encoder with a shaft - SCA50 series





Electrical parameters
- Output signal: incremental (channels A and B)
- Zero position signal channel Z
- Output type: with active load 'totempole'
- Power supply: 4,5...30VDC
    (protection against reverse connection)
- No load current: max 45 mA
- Max channel current: 30 mA (short circuit protection)
- '0 state voltage': max 500mV 1 = 10 mA
-output voltage fr
 '1' state:   min 600mV 1 = 10 mA
    max 1,3V   1 = 25 mA
- Max frequency 300 kHz
- Operation temperature: - 40...85°C
- Output signal: standard
    reversed
    differential (compatible with RS422A)

Mechanical parameters

-Weight: 130g
- Material: casing: aluminium
  shaft: stainless steel
  bearing: ball lubrication
- Shaft diameter: Ø6mm,Ø8mm, Ø10m m, Ø1/4", Ø3/8"
- Max axial load: 20N
- Max radius load 20N
- Max speed: 12000 turn./min.
- Protection level: IP 65 (option IP67)











Catalogue number
Less
Read more
