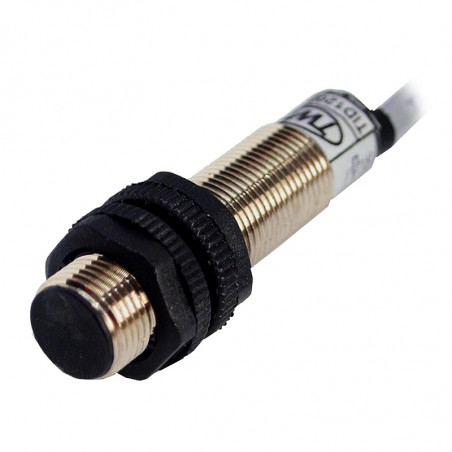

Inductive sensors TIDC,DC, 2 wires

Inductive sensors TIDC,DC, 2 wires

Technical data:
• Supply voltage 10...30V DC (10...60V DC)**
• Supply voltage ripple ≤ 3,5V
• Load current 200mA (400mA)**
• Power consumption without control 12mA
• Residual voltage* 0,8...1,8V DC
• Residual current* 10μA                                          1
• Output resistance 6,8kW                                        1
• Switching hysteresis ≤ 15%
• Repeatability ≤ 10% Sn
• Temperature coefficient ≤ 10%
• Operation temperature -25°C ... 70°C
• Protection degree IP 67
• Casing nickled brass
• Protection current and overvoltage outputs
• Signalisation LED



Metal casingM12x1M12x1M18x1M18x1M30x1,5M30x1,5
Assembly method Build in Not build in Build in Not build in Build in Not build in
Normal operation distance 2mm 4mm 5mm 8mm 10mm 15mm
Operation distance 0 ... 1,6mm 0 ... 3,2mm 0 ... 4mm 0 ... 6,4mm 0 ... 8mm 0 ... 12mm
Supply voltage 10 ... 30 V DC 10 ... 30 V DC 10 ... 30 V DC 10 ... 30 V DC 10 ... 30 V DC 10 ... 30 V DC
Load current 150mA 150mA 150mA 150mA 150mA 150mA
Switching frequency 1000Hz 500Hz 500Hz 300Hz 300Hz 200Hz
Weight 0,05kg 0,05kg 0,08kg 0,08kg 0,12kg 0,12kg

Connection PCW cable,2mb
3x0,34mm2
PCW cable,2mb
3x0,34mm2
PCW cable,2mb
3x0,34mm2
PCW cable,2mb
3x0,34mm2
PCW cable,2mb
3x0,34mm2
PCW cable,2mb
3x0,34mm2
Dimensions[mm]
Sensor marking _/_NO TIDC1202Z TIDC1204Z TIDC1805Z TIDC1808Z TIDC3010Z TIDC3015Z
Sensor marking _/|_NC TIDC1202R TIDC1204R TIDC1805R TIDC1808R TIDC3010R TIDC3015R
Connection connector M12 connector M12 ^ connector M12 connector M12 connector M12 connector M12
Dimensions[mm
Sensor marking _/_ NO TIDC1202ZK TIDC1204ZK TIDC1805ZK TIDC1808ZK TIDC3010ZK TIDC3015ZK
Sensor marking  _/|_ NC TIDC1202RK TIDC1204RK TIDC1805RK TIDC1808RK TIDC3010RK TIDC3015RK

M12 connector
