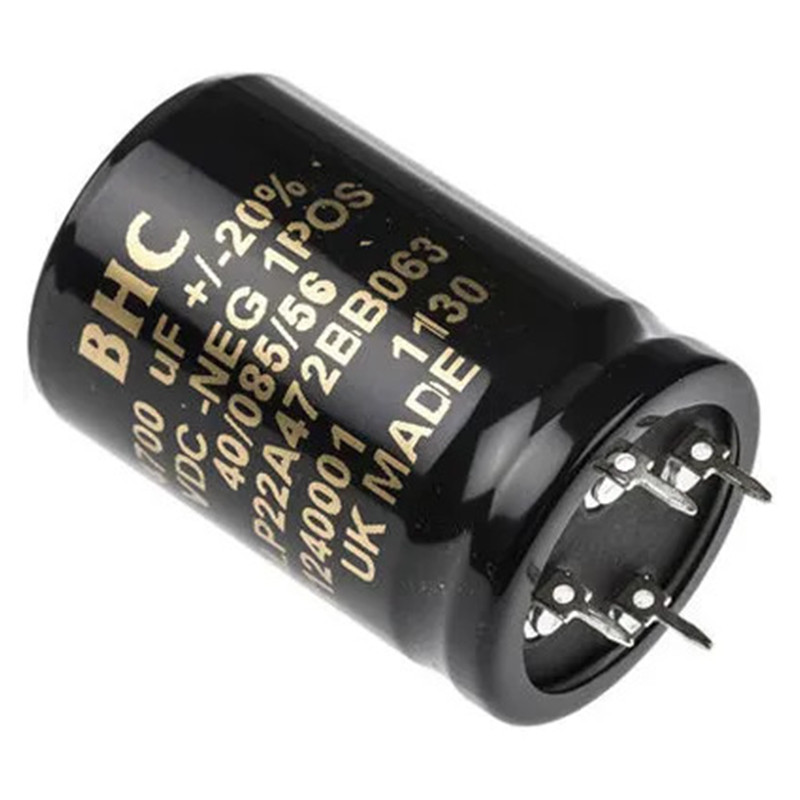

Leads for PCB and soldering - ALP/T 20 series

LEADS FOR PCB AND SOLDERING - ALP/T 20 SERIES

Technical data
Capacity range
100µF - 68000µF
Tolerance
-10% + 30%
Voltage range
10 V -450 VDC
Temperature range
-40°C - 85°C
Casing dimensions
25x35mm - 40x105mm

Casings dimensions in mm



Casing codeD
±1
L
±2
Clamping rings
AA 25 35 V2/H1
AB 25 45 V2/H1
BB 30 45 -
CB 35 45 V3/H2
CD 35 55 V3/H2
DB 40 45 V9
DD 40 55 V9
DE 40 75 V9
DF 40 105 V9

ALP terminal layout


Caution
Terminal 1 - positive



Table.  Life length in temperature range at nominal voltage and current

Diameter
[mm]
Life length
[h]
25 12000
30 15000
35 18000
40 26000



 ALP/T 20 SERIES



Voltage
[VDC]
Capacity
[µF]
Dimensions
[mm]
ESRmΩ @ 20°C
100 Hz
Repeatable current
[A] @ 85°C
Type
100[Hz]10[kHz]
10 4700 25x35 74 50 2,6 AL-20A472AA010
10 6800 25x45 51 37 3,4 AL-20A682AB010
10 10000 30x45 39 29 4,3 AL-20A103BB010
10 15000 35x45 35 26 5 AL-20A153CB010
10 22000 35x55 27 21 6,2 AL-20A223CD010
10 22000 40x45 36 27 5,4 AL-20A223DB010
10 33000 40x55 29 22 6,5 AL-20A333DD010
10 47000 40x75 20 17 8,8 AL-20A473DE010
10 68000 40x105 15 14 11,6 AL-20A683DF010
16 3300 25x35 75 50 2,5 AL-20A332AA016
16 4700 25x45 52 37 3,4 AL-20A472AB016
16 6800 30x45 40 30 4,3 AL-20A682BB016
16 10000 35x45 36 27 4,9 AL-20A103CB016
16 15000 35x55 28 21 6 AL-20A153CD016
16 15000 40x45 36 27 5,4 AL-20A153DB016
16 22000 40x55 29 22 6,5 AL-20A223DD016
16 33000 40x75 20 17 8,8 AL-20A333DE016
16 47000 40x105 15 14 11,6 AL-20A473DF016
25 2200 25x35 78 52 2,5 AL-20A222AA025
25 3300 25x45 53 38 3,3 AL-20A332AB025
25 4700 30x45 42 31 4,2 AL-20A472BB025
25 6800 35x45 37 28 4,9 AL-20A682CB025
25 10000 35x55 28 21 6 AL-20A103CD025
25 10000 40x45 36 27 5,4 AL-20A103DB025
25 15000 40x55 29 22 6,5 AL-20A153DD025
25 22000 40x75 20 17 8,8 AL-20A223DE025
25 33000 40x105 15 14 11,6 AL-20A333DF025
40 1500 25x35 112 68 2 AL-20A152AA040
40 2200 25x45 76 51 2,8 AL-20A222AB040
40 3300 30x45 57 41 3,6 AL-20A332BB040
40 4700 35x45 48 35 4,3 AL-20A472CB040
40 6800 35x55 36 27 5,4 AL-20A682CD040
40 6800 40x45 45 33 4,8 AL-20A682DB040
40 10000 40x55 35 27 5,9 AL-20A103DD040
40 15000 40x75 25 20 7,8 AL-20A153DE040
40 22000 40x105 18 16 10,6 AL-20A223DF040
63 1000 25x35 122 74 2 AL-20A102AA063
63 1500 25x45 83 54 2,7 AL-20A152AB063
63 2200 30x45 57 41 3,5 AL-20A222BB063
63 3300 35x45 48 35 4,3 AL-20A332CB063
63 4700 35x55 36 27 5,4 AL-20A472CD063
63 4700 40x45 45 33 4,8 AL-20A472DB063
63 6800 40x55 35 27 5,9 AL-20A682DD063
63 10000 40x75 25 20 7,8 AL-20A103DE063
63 15000 40x105 19 16 10,3 AL-20A153DF063


Caution
Terminals
P - for PCB
T - for soldering
Marking example:
• for PCB: ALP20A 103DE 063
• for soldering: ALT20A 103DE 063

ALP/T 20 SERIES



Voltage
[VDC]
Capacity
[µF]
Dimensions
[mm]
ESRmΩ @ 20°C
100 Hz
Repeatable current
[A] @ 85°C
Type
100 [Hz]10 [kHz]
100 470 25x35 342 300 1,2 AL-20A471AA100
100 680 25x45 229 210 1,7 AL-20A681AB100
100 1000 30x45 160 150 2,2 AL-20A102BB100
100 1500 35x45 117 120 2,8 AL-20A152CB100
100 2200 35x55 84 90 3,5 AL-20A222CD100
100 2200 40x45 96 110 3,3 AL-20A222DB100
100 3300 40x55 70 75 4,1 AL-20A332DD100
100 4700 40x75 49 55 5,6 AL-20A472DE100
100 6800 40x105 34 40 7,7 AL-20A682DF100
200 150 25x35 1000 770 0,75 AL-20A151AA200
200 220 25x45 680 525 1 AL-20A221AB200
200 330 30x45 460 360 1,29 AL-20A331BB200
200 470 35x45 320 250 1,67 AL-20A471CB200
200 680 35x55 220 170 2,22 AL-20A681CD200
200 680 40x45 220 170 2,25 AL-20A681DB200
200 1000 40x55 130 115 3 AL-20A102DD200
200 1500 40x75 90 85 4,15 AL-20A152DE200
200 2200 40x105 60 60 5,88 AL-20A222DF200
250 100 25x35 1800 1300 0,6 AL-20A101AA250
250 150 25x45 1100 850 0,8 AL-20A151AB250
250 220 30x45 750 550 1 AL-20A221BB250
250 330 35x45 500 400 1,4 AL-20A331CB250
250 470 35x55 360 290 1,8 AL-20A471CD250
250 470 40x45 420 350 1,8 AL-20A471DB250
250 680 40x55 250 190 2,3 AL-20A681DD250
250 1000 40x75 170 140 3 AL-20A102DE250
250 1500 40x105 130 120 3,9 AL-20A152DF250
400 47 25x35 2800 2200 0,4 AL-20A470AA400
400 68 25x45 1700 1350 0,6 AL-20A680AB400
400 100 30x45 1100 850 0,8 AL-20A101BB400
400 150 35x45 725 525 1,1 AL-20A151CB400
400 220 35x55 500 350 1,4 AL-20A221CD400
400 220 40x45 600 420 1,3 AL-20A221DB400
400 330 40x55 340 230 1,9 AL-20A331DD400
400 470 40x75 240 160 2,8 AL-20A471DE400
400 680 40x105 230 160 3 AL-20A681DF400
450 22 25x35 7000 5000 0,26 AL-20A220AA450
450 33 25x45 5000 3600 0,31 AL-20A330AB450
450 47 30x45 3500 2800 0,37 AL-20A470BB450
450 68 35x45 3000 2000 0,5 AL-20A680CB450
450 100 35x55 2000 1500 0,65 AL-20A101CD450
450 150 40x45 1500 950 0,83 AL-20A151DB450
450 220 40x55 900 650 1,16 AL-20A221DD450
450 330 40x75 550 420 1,67 AL-20A331DE450
450 470 40x105 500 300 2,1 AL-20A471DF450


Caution
Terminals
P - for PCB
T - for soldering
Marking example:
• for PCB: ALP20A 103DE 063
• for soldering: ALT20A 103DE 063
