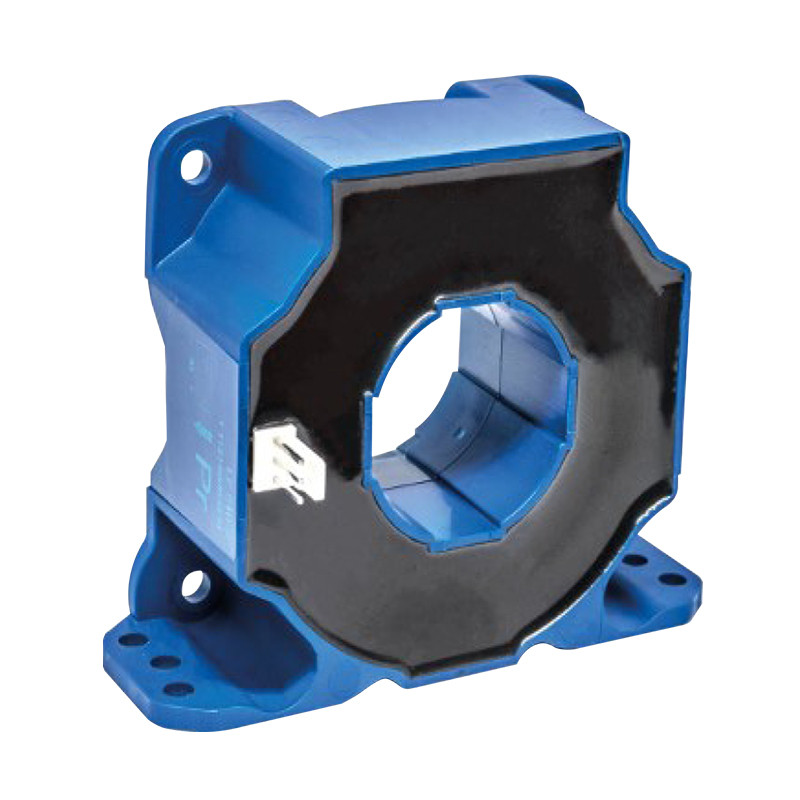

LF xx10 series current transducers

LF xx10 series current transducers

High accurate current measurement from 100 up to 2000ARMS multiple mounting

Main characteristics:

  • Provide current measurements from 100 up to 2000ARMS nominal
  • Overall accuracy over temperature range from 0.2 to 0.6% of IPN
  • Exceptional offset drift of 0.1% of IPN
  • Fast response time less than 0.5μs
  • 5 compact sizes in a variety of panel mounting topologies (flat or vertical)
  • 5 years warranty
  • Compacts designs
  • DC, AC pulse currents measurements with galvanic isolation
  • Dual supply ±12…15, ±12…20 or ±15…24V according to the models
  • Current output
  • -40…85°C operation


Standard compliance:

  • EN 50178 for industrial applications such as:
    • Home appliances
    • Variable speed drives
    • UPS’s
    • SMPS’s
    • Air conditioners
  • EN 50155 for traction applications such as:
    • Main and auxiliary converters
    • Substations
    • Choppers
    • Battery chargers
  • Using UL94-V0 recognized materials
  • European directive EMC 2004/108/EEC – CE marking

Remarks:

  • 100% fully compatible vs LEM LF xx05
  • Immunity from external fields for a compact system design

Rated data:

ModelPrimary Nominal ValueMeasuring RangeSecondary nominal signalSupply VoltageAccuracyMounting

LF 1010-S

1000A 2700A 200mA ±15-24V 0.4 Panel

LF 1010-S/SP22

1000A 1500A 200mA ±15-24V 0.4 Panel

LF 1010-S/SP33

1000A 2000A 200mA ±24V 0.4 Panel

LF 1010-S/SPA2

1000A 2700A 200mA ±15-24V 0.4 Panel

LF 1010-S/SPA3

1000A 2700A 200mA ±15-24V 0.4 Panel

LF 2010-S

2000A 3000A 400mA ±15-24V 0.3 Panel

LF 2010-S/SP1

2000A 3500A 400mA ±15-24V 0.3 Panel

LF 210-S

200A 420A 100mA ±12-15V 0.25 Panel

LF 210-S/SP1

200A 420A 100mA ±12-15V 0.2 Panel

LF 210-S/SP11

200A 420A 100mA ±12-15V 0.2 Panel

LF 210-S/SP3

100A 200A 100mA ±12-15V 0.2 Panel

LF 210-S/SP5

100A 200A 100mA ±12-15V 0.2 Panel

LF 310-S

300A 500A 150mA ±12-20V 0.25 Panel

LF 310-S/SP10

300A 500A 150mA ±12-20V 0.2 Panel

LF 310-S/SP16

300A 600A 150mA ±24V 0.2 Panel

LF 310-S/SP20

300A 500A 150mA ±12-20V 0.2 Panel

LF 510-S

500A 800A 100mA ±15-24V 0.6 Panel

LF 510-S/SP13

500A 1286A 100mA ±24V 0.6 Panel

LF 510-S/SP15

500A 800A 100mA ±15-24V 0.5 Panel

LF 510-S/SP22

500A 1200A 142.9mA ±15-24V 0.6 Panel

LF 510-S/SP23

500A 1000A 100mA ±15-24V 0.6 Panel

LF 510-S/SPA1

500A 800A 100mA ±15-24V 0.6 Panel

Typical technical drawing (LF 1010-S):

Przetworniki prądowe o dużej dokładności serii LF xx10

Device block diagram:

Przetworniki prądowe o dużej dokładności serii LF xx10 - schemat blokowy urządzenia
