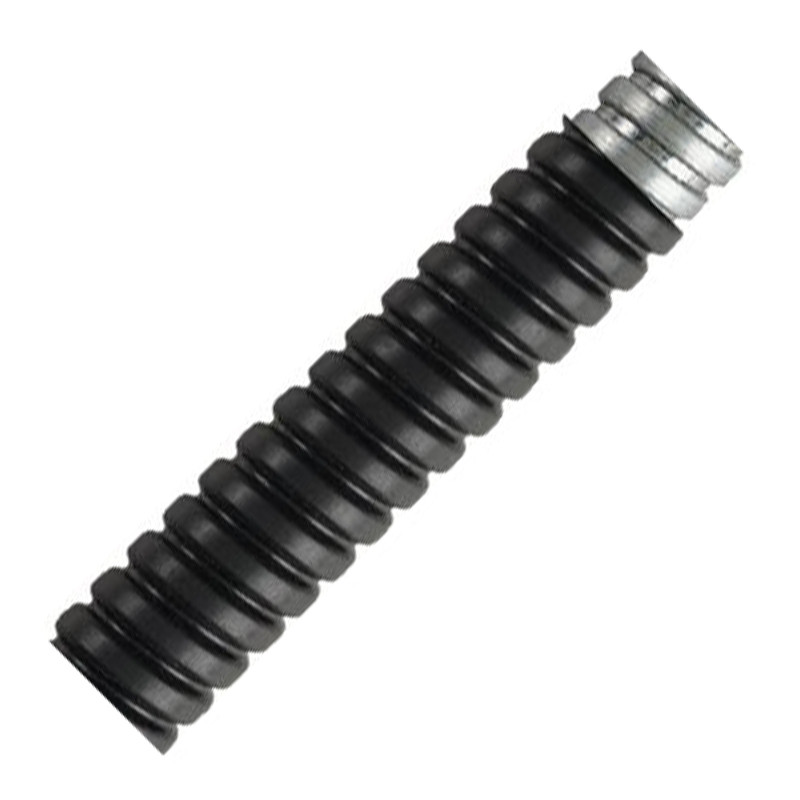

LFHU - Metallic Conduits Galvanised steel helically wound flexible steel conduit with Polyolefin extra low fire hazard coating
  • LFHU - Metallic Conduits Galvanised steel helically wound flexible steel conduit with Polyolefin extra low fire hazard coating

Photos are for informational purposes only. View product specification

Manufacturer: FLEXICON

LFHU - Metallic Conduits Galvanised steel helically wound flexible steel conduit with Polyolefin extra low fire hazard coating

LFHU - Metallic Conduits Galvanised steel helically wound flexible steel conduit with Polyolefin extra low fire hazard coating

Peszel LFHU – spiralny peszel ze stali ocynkowanej w osłonie poliolefinowej

Properties:
Materia: Galvanised Steel Conduit with Polyolefin extra low fire hazard coating)
Colour: Black
Fire Performance: Highly flame retardant, Low smoke, low toxicity, self extinguishing, halo-gen, sulphur and phos-phorous free
Temperature Performance: -25OC +90OC
IP Rating:
IP54 with M, S, P or F type fittings
IP65 with C, C-S and C90 type fittings
Compression Strength: 350kg/100mm
Pull-off (Tensile) strength : 120 kg

Typical Applications;

Peszel LFHU – spiralny peszel ze stali ocynkowanej w osłonie poliolefinowej zastosowanie - konstrukacje Construction Peszel LFHU – spiralny peszel ze stali ocynkowanej w osłonie poliolefinowej zastosowanie kolejnictwo Rail

Compliance, Approvals [&] Accreditation;:

EN 61386 Classification Available on request
COMPLIANT TO LUL STANDARD 1-085-A3
London Underground Certificate No. 297
Vibration and Shock tested to EN61373 Cat 2


Nominal
Size
Part No.Reel Length
[m]
OD
[mm]
Min ID
[mm]
Min inside Bend
radius R
[mm]
12

LFHU12

25 14.2 10.0 30
16

LFHU16

25, 50 17.1 12.9 40
20

LFHU20

25, 50 21.6 16.8 45
25

LFHU25

25 26.0 20.9 55
32

LFHU32

25 34.0 27.8 60
40

LFHU40

10 44.2 37.3 80
50

LFHU50

10 55.0 48.0 90
63

LFHU63

10 64.5 57.0 115
75

LFHU75

10 79.2 69.4 150
