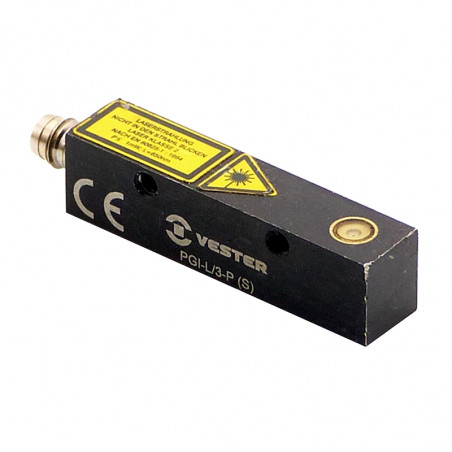

Light barrier transmitter - receiver (red light) - type PGI-L
  • Light barrier transmitter - receiver (red light) - type PGI-L

Photos are for informational purposes only. View product specification

Manufacturer: Vester

Light barrier transmitter - receiver (red light) - type PGI-L

Light barrier transmitter - receiver (red light) - type PGI-L

Technical data
• Operation light type: constant
• Wavelength: 650nm, red light
• Beam diameter 0,4mm
• Laser efficiency: < 1mW, laser class 2 Don't look into laser!
• Supply voltage: 12...30V
• Power consumption: max 60mA
• Operation type: static
• Output: PNP
• Output function: switching NO/NC
• Output current: 500mA, short circuit protection
• Repeatability: < 0,02mm
• Switching frequency: 4kHz
• Operation temperature 0...45°C
• EMC: IEC 801.... CE
• Protection level: IP 65
• Connection type: 3 pole socket M8

Accuracy:
  transmitter - receiver distance 1000mm
  Element diameter:                    > 0,4mm


Dimensions[mm]

TypeLight barrier transmitter - receiverTerminal description - 3 pole socket M8
PGI-L/3-P 6520-00000-3002
