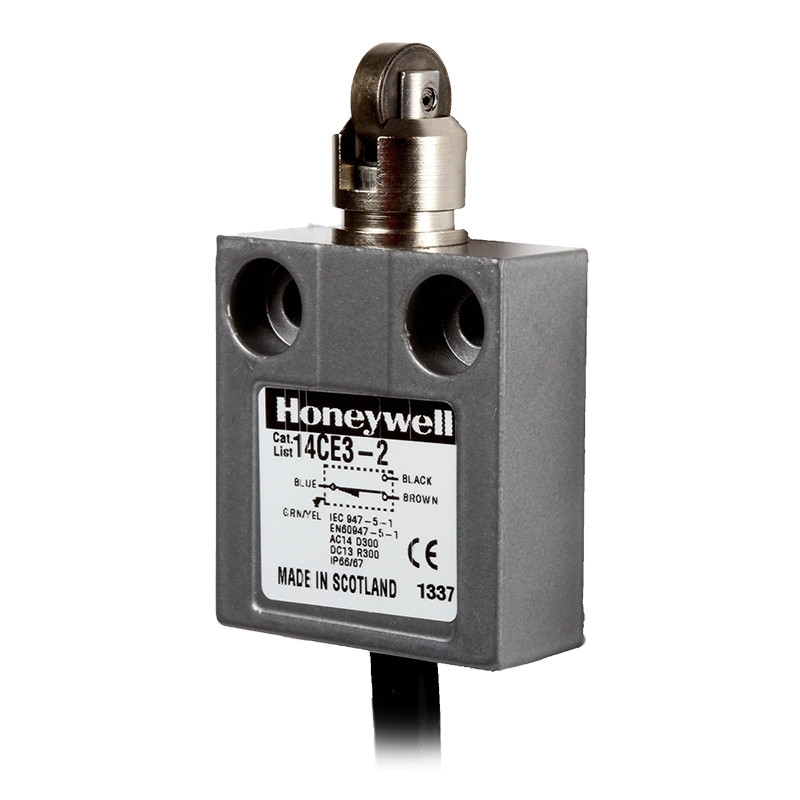

Limit switches 14CE series

Series14CE

The CE circuit-breaker family are miniature limit switches in compact metal housings with leads or connectors. The entire CE range meets the requirements of the low voltage directive. CE connectors have a tightness class from IP65 to IP67.

Properties:

• compact construction
• versions with cable or with connector
• zinc die cast housing
• large selection of levers
• group mounting option
• different lead-out lengths
• cable / connector led out from below or from the side
• easy installation with two screws
• low temperature version
• protection degree IP65 to IP67

Advantages:

• perfect for applications where space is limited
• quick and easy assembly
• suitable for use in harsh environments
• multiple switching in a small space
• a large selection of applications
• suitable for aggressive environments


Technical data:
• durability: 10 million operations
• level of security: standard IP65
  version‘K’IP66
  IP67 rubber seal
• operating temperature: 0...70°C
• compliance with standards: IEC 60947-5-1,
  EN 60947-5-1,
  AC14 D300
  DC13 R300
• insulation voltage: 250V
• breakdown voltage: l,5kV

dimensions [mm]:
  Type of leverage Styk szybki Cable / connector Options
Enter the cable length, change every 1 m, e.g. 1 = 1 meter, 2 = 2 meters. Usually the maximum cable length is 4m. Version L - cable: 4 wires in a silicone shield, brown. If version Q or Q1 has been selected, the cable length should be omitted.

A: lateral cable or connector outlet,

B: elongated mounting holes,

D: halogen-free wire,

G: gold contacts,

H: increased operating temperature (0 ... 120 ° C),

K: pusher with O-ring sealing,

NOTE: the O-ring seal increases the closing force OF. up to 22.5N

L: low operating temperature (-40 ... 70 ° C) ,,

L1: low operating temperature as in the version

L, but the hose is not flexible,

Q: DC type connector, M12,4 pole

Q1: AC type connector, 1 "x20, 4-pole,

V: FC (Fluorocarbon) seal,

P: top mounting

NOTE: Several options are allowed, but not all connections may be allowed. If you choose several options, please place them in alphabetical order, e.g. 14CE31-3AK. Levers are ordered separately.
Pusher
Version Q - DC type connector, M12,4 pole
Pusher with a parallel roller Pusher with perpendicular roller
Version Q1 - AC type connector, 1/2 "x20, 4-pole
Rotary drive
Tappet with a seal
Lead
Pusher with a parallel roller and seal Pusher with perpendicular roller and seal
Popychacz z kulką

ADDITIONAL LEVERS - DIMENSIONS [mm]
6PA71-4, 6PA78-4
6PA44-4, 6PA56-4

6PA68-4
6PA67-4
6PA64-4
6PA68-4
6PA67-4
6PA64-4
