Mini resistant angle sensor - ACT-15

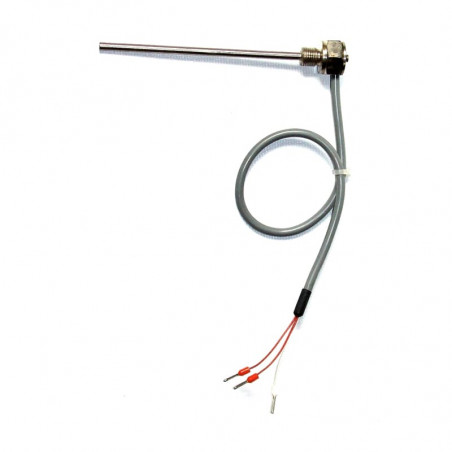

Angular mini resistant sensor, used for temperature measurement in small machines elements up to +250°C. Small dimensions allow for fast and precise measurement, and additional stub pipe allow for fast and easy assembly. Connection cable is available in any length.

SPECIFICATION:

SENSOR TECHNICAL PARAMETERS
Measurement resistorVersionCharacteristicMeasurement rangeAccuracy classMax measurement currentConnection type
1xPt100
2xPt100
normal shockproof according to PN-EN-60751 from -200°C
up to 600°C
B 8 mA 2 cables
A 5 mA 3, 4
cables
-50°C+150°C 1/3 B DIN 2 mA

Shield
Shield diameter
d[mm]

material according to
WNr/ DIN

material according to
ASTM /AISI

length
L[mm]

Ø3, Ø4, Ø5 , Ø6 1.4571 316 Ti arbitrary

Stub pipe D
M10x1, M12x1
G 1/2’’

Connection cable
TypediameterTypeCompositionMax operation temperatureDługość LK
2-cables Ø 2,9 L2GGD-2x0.22mm2 fibre glass +400°C arbitrary
3, 4 -cables Ø 3,1 L4GGD-4x0.22mm2 fibre glass +400°C
3, 4 -cables Ø 2,9 L4TT-4x0.22mm2 Teflon, Teflon +260°C
3, 4 cables Ø 4 L4TFDT-4x0.22mm2 Teflon, foil,Teflon +260°C



Marking


A. Resistor type
A

Single Pt100
1xPt100

Double Pt100
2xPt100
B. Accuracy class
B

B
B

A
A

1/3 B DIN
1/3 B DIN
C. Shield diameter d
C

Ø3
3

Ø4
4

Ø5
5

Ø6
6
D. Connection type
D

M10x1
M10x1

M12x1
M12x1

G 1/2''
G 1/2
E. length
E

L
give in mm
F. Connection and cable type
F

2 cables (L2GGD)
2p-L2GGD

3 cables (L4GGD)
3p-L4GGD

4 cables (L4GGD)
4p-L4GGD

3 cables (L4TT)
3p-L4TT

4 cables (L4TT)
4p-L4TT

3 cables (L4TFDT)
3p-L4TFDT

4 cables (L4TFDT)
4p-L4TFDT
G. Cable length
G

LK
give in mm
H.Shield material
H
  normal Z

shockproof
W
